Autel AUCSC0611-05 — Subaru Target 3-Pack for ADAS Camera Calibration

If your shop handles Subaru windshield replacements, EyeSight camera R&R, or front-end repairs, you already know that Subaru's stereo camera system is among the most sensitivity-dependent ADAS setups on the market. The AUCSC0611-05 is a three-target pack designed specifically for Subaru vehicles within the Autel CSC (Calibration Standard Components) ecosystem. These targets work with Autel's MaxiSYS ADAS software and calibration frame to walk you through the static calibration procedure that Subaru requires after any repair affecting the forward-facing EyeSight stereo cameras.

What This Target Pack Is and Who Needs It

This is not a universal target. Subaru's EyeSight system uses a dual-camera setup mounted at the top of the windshield, and it requires manufacturer-specified targets placed at precise positions in front of the vehicle. The AUCSC0611-05 provides the three targets needed to satisfy that procedure within the Autel workflow. If you are a glass shop, a collision center, or a general repair shop that regularly sees Subaru customers, this pack is what turns your Autel ADAS frame into a Subaru-capable calibration station.

Without the correct Subaru targets, you cannot complete the static calibration in the Autel system. You would need to send the vehicle to the dealer or a shop that has the right equipment — and that means losing the job. This pack closes that gap.

What's in the Box

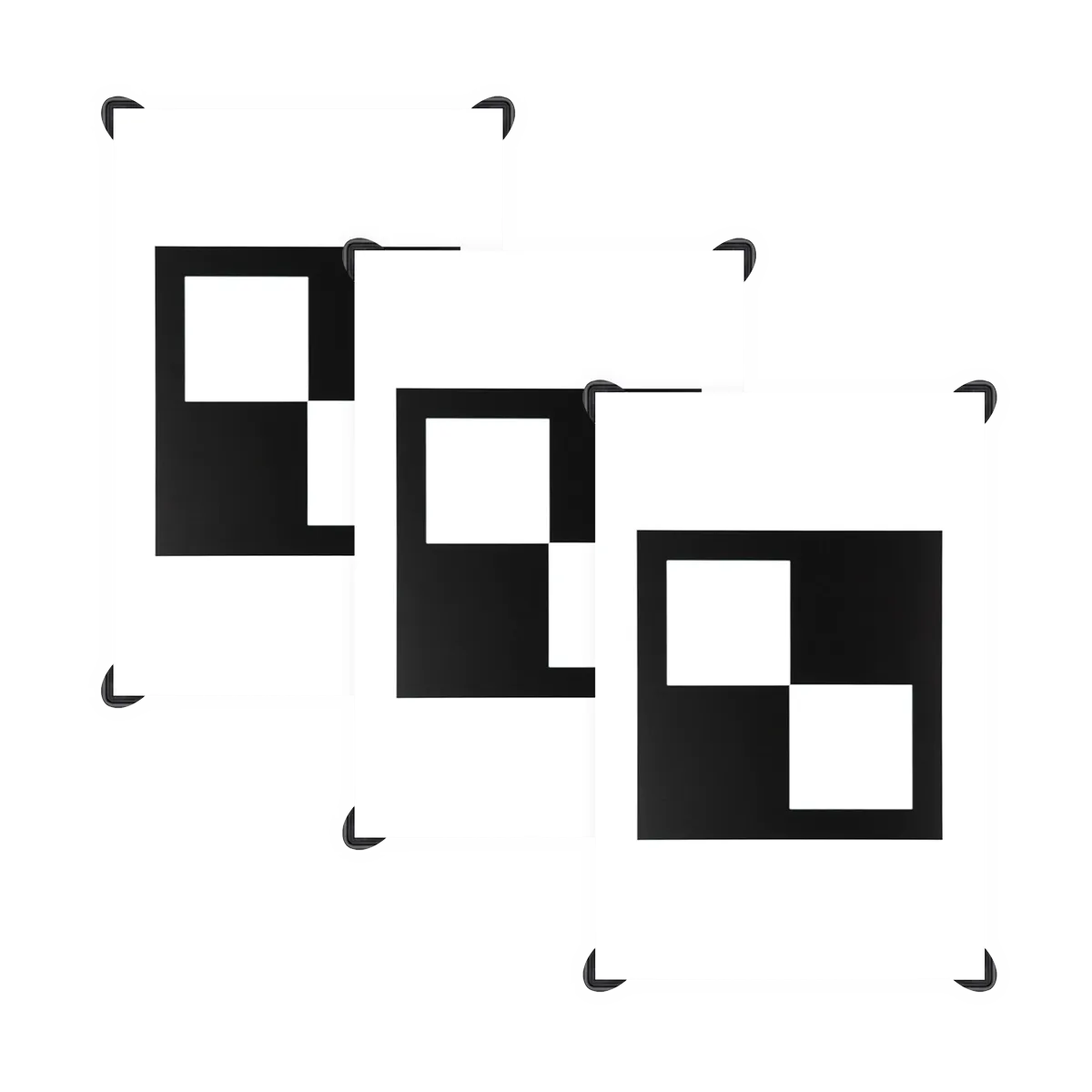

• 3 Subaru-specific calibration targets — designed for use with the Autel CSC frame and MaxiSYS ADAS software
• Mounting hardware for attachment to the CSC calibration standard frame

Exact target dimensions and part-level breakdown are available on request. If you need to confirm compatibility with your current Autel ADAS setup before ordering, call us.

Compatible Autel ADAS Systems

• Autel CSC Calibration Frame (the standard adjustable frame used across Autel's ADAS lineup)
• MaxiSYS MS909, MS919, Ultra, Elite II — any MaxiSYS tablet running Autel ADAS software
• IA900WA — Autel's combined wheel alignment and ADAS system also supports this target pack

If you are not sure which Autel ADAS frame you have, the CSC frame is the tall, adjustable stand-based system. The MA600 is the mobile tripod-based alternative. Confirm your frame model before ordering if you have any doubt — we can help you verify compatibility.

When Does a Shop Need This?

• Windshield replacement on Subaru EyeSight vehicles — the stereo cameras are mounted to the glass. Every windshield R&R on an EyeSight-equipped Subaru requires calibration.
• Camera removal or replacement — any time the EyeSight cameras are disconnected or repositioned
• Front-end collision repair — structural or bumper work that may have disturbed camera alignment
• Suspension or alignment work — some Subaru procedures require camera recalibration after alignment corrections

Subaru EyeSight Coverage

The EyeSight driver assistance system has been standard or available on a wide range of Subaru models including Outback, Forester, Legacy, Impreza, Ascent, and Crosstrek across multiple model years. Exact model-year coverage for this target pack is confirmed through the Autel ADAS software — the system will tell you which targets are required when you select the vehicle. If you need coverage confirmation for a specific Subaru model before purchasing, contact us.

Buying This vs. the Full Kit

The AUCSC0611-05 is a target-only add-on. It assumes you already have an Autel ADAS calibration frame and a compatible MaxiSYS tablet. If you do not yet have a frame, you need to start with the full Autel ADAS kit — this target pack alone will not let you perform calibrations. If you have the frame but are missing Subaru targets, this $450 pack is the direct path to adding Subaru EyeSight capability to your existing setup without buying redundant equipment.

Why Buy From OEM Diagnostic Tools?

• Specialist since 2016 — we focus exclusively on professional diagnostic and ADAS calibration equipment
• Free shipping on orders to the contiguous US
• Free tech support at 866-217-0063 — call us before you buy if you need to confirm this target pack works with your current Autel setup
• Full manufacturer warranty — Autel-backed coverage on all targets and accessories
• Honest upgrade guidance — if you need more than this pack, we will tell you exactly what you need and why

Call 866-217-0063 for quick answers and help!
