Autel CSC0500-20 Ride Height Target — ADAS Calibration Accessory for the CSC Frame System

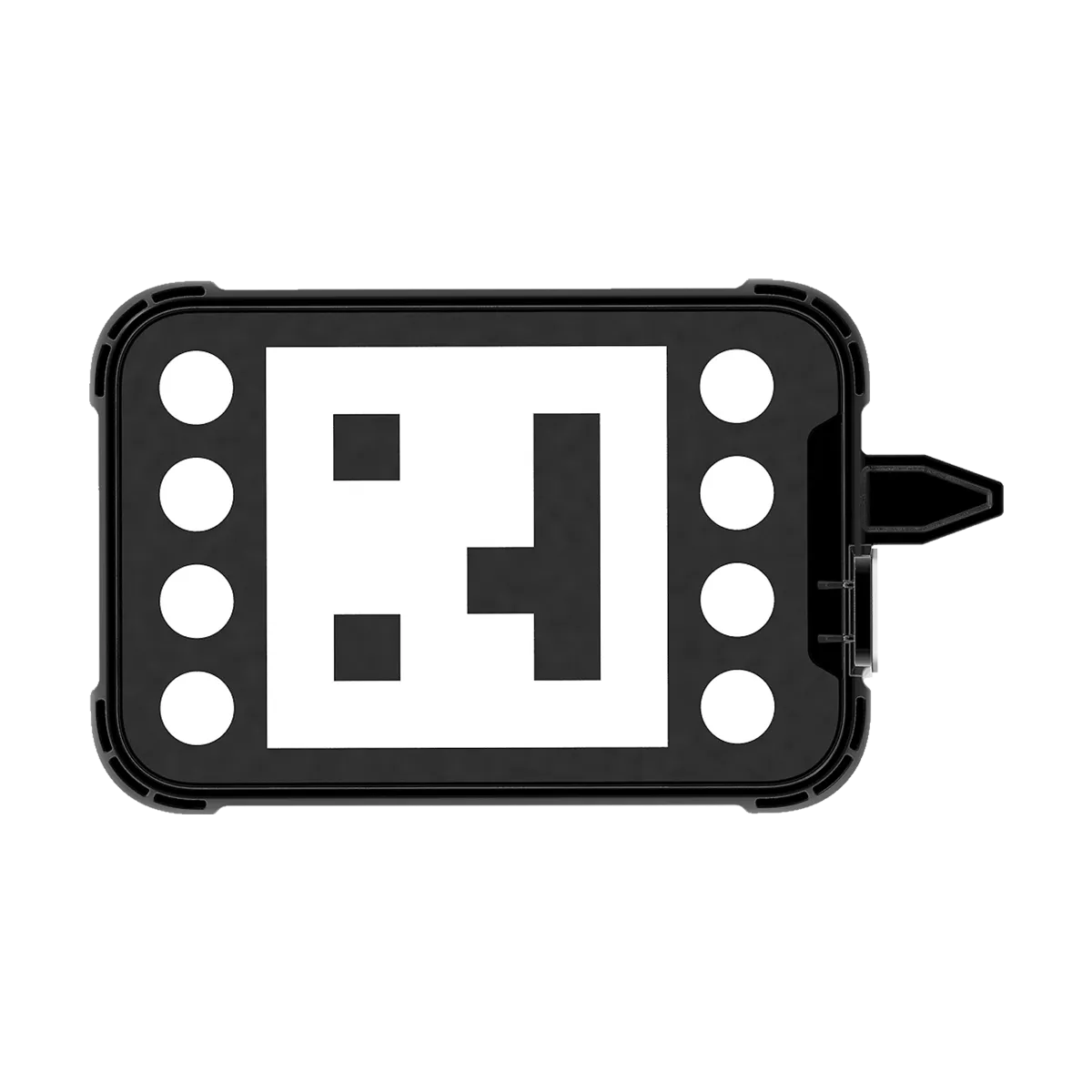

The Autel CSC0500-20 Ride Height Target is a precision accessory for the Autel ADAS Calibration Standard Components (CSC) frame system. If you're running Autel ADAS calibrations in your shop, you already know that accurate vehicle ride height measurement is a prerequisite for correct static camera and radar calibration. This target gives you a consistent, repeatable way to capture that measurement as part of your calibration workflow.

What This Target Does

Before you run a static ADAS calibration — whether for a front-facing camera after a windshield replacement, an ACC radar after a front-end repair, or a surround-view system after collision work — the Autel software needs to know the vehicle's current ride height. An incorrect ride height input means the calibration target is positioned at the wrong height relative to the sensor, which means the calibration is off before you even start.

The CSC0500-20 is the ride height measurement target used with the CSC frame to feed that accurate height data into the Autel ADAS calibration process. It's a straightforward accessory, but skipping it or substituting a workaround introduces variables you don't want in a safety-critical calibration.

Who Needs This

• Collision repair shops running Autel ADAS calibrations after structural or suspension repairs where ride height may have changed
• Windshield replacement shops performing front camera recalibrations with an Autel CSC-based system
• General repair shops that perform suspension work and need to verify ride height is within spec before finalizing ADAS calibration
• Any Autel ADAS operator whose original CSC0500-20 is damaged, lost, or needs a spare for a second bay setup

Compatibility

The CSC0500-20 is designed for use with the Autel CSC (Calibration Standard Components) frame system. It works alongside the full CSC accessory ecosystem and pairs with Autel MaxiSYS ADAS software running on the MaxiSYS Ultra, MS909, MS919, Elite II, or other compatible MaxiSYS tablets. If you are unsure whether this target is correct for your specific CSC frame configuration, contact us before ordering — exact compatibility details are available on request.

Why a Replacement or Spare Makes Sense

ADAS calibration tools take abuse in a shop environment. Targets get knocked over, components go missing during moves, and a second bay setup requires a second set of accessories. At $235, replacing or adding a ride height target is significantly cheaper than delaying calibrations while you wait on a backorder or search for a workaround. Keep your CSC system complete and your calibration workflow running without interruptions.

What's in the Box

• 1x Autel CSC0500-20 Ride Height Target
• Associated mounting or attachment hardware (verify with Autel documentation for your specific CSC frame version)

If your kit arrived missing this component or you need full contents confirmation for your CSC frame version, contact us directly.

Technical Specifications

• SKU: AUCSC0500-20
• Compatible System: Autel CSC ADAS Calibration Frame
• Function: Ride height measurement target for static ADAS calibration setup
• Exact dimensions and weight: Available on request from Autel documentation

Why Buy From OEM Diagnostic Tools?

We've been specializing in professional diagnostic and ADAS calibration equipment since 2016. We stock Autel's full CSC accessory line so you can get the exact component you need without buying a kit you don't. Every order ships free, comes with the full manufacturer warranty, and includes access to our free tech support line. If you're not sure this is the right part for your CSC setup, call us and we'll tell you honestly — even if that means pointing you to a different part number.

Call 866-217-0063 for quick answers and help!
