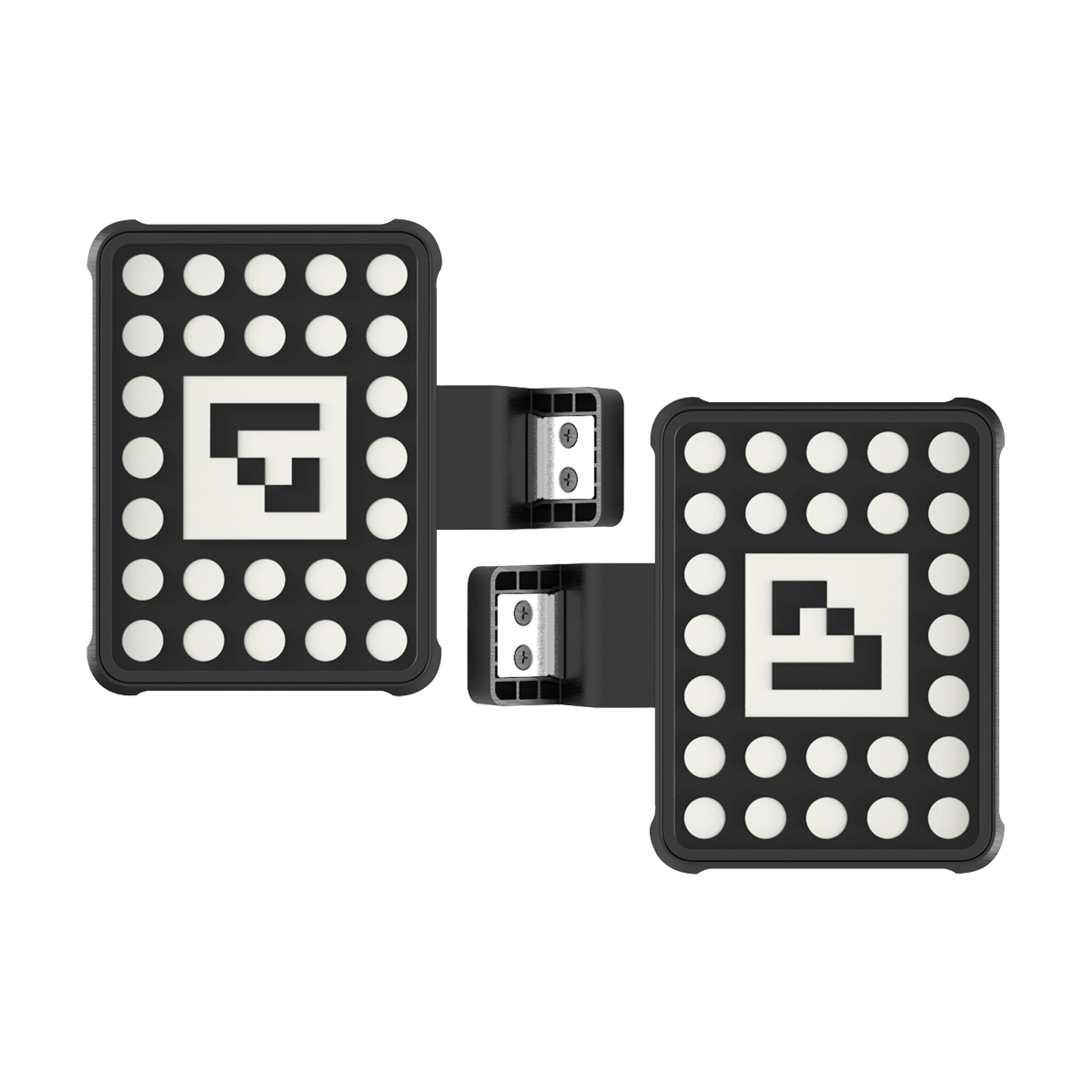

Autel Wide Angle Target CSC0500-21 — Caster Sweep Target for IA900WA

The CSC0500-21 Wide Angle Target is a specialized accessory for the Autel IA900WA wheel alignment system that solves a specific problem during caster sweep: when the front wheels are turned to maximum angle during the caster measurement sweep, the standard wheel-mounted targets can move outside the camera field of view. The wide angle target attaches to the wheel clamps and extends camera visibility during that max-angle position.

What Problem This Solves

Caster measurement on the IA900WA requires a steering sweep — the tech turns the wheels from lock to lock while the cameras track the wheel targets. At maximum steering angle, the standard targets can rotate to a position where the cameras lose line-of-sight. The CSC0500-21 target is designed to remain visible to the cameras even at full steering angle, ensuring the system can capture the complete sweep data without interruption.

• Attaches to wheel clamps on the IA900WA system
• Maintains camera visibility during maximum steering angle caster sweep
• Compatible with the IA900WA wheel alignment and ADAS calibration system
• Ensures complete caster sweep data capture
• One-year limited warranty

When You Need This Target

Some vehicles have a very wide steering lock angle, and on those vehicles the standard targets may fall outside camera view during the sweep. If your IA900WA system is having difficulty completing caster measurements on vehicles with tight turning radii or extreme lock-to-lock angles, the CSC0500-21 wide angle target is the correct solution.

System Compatibility

CSC0500-21 is part of the IA900 Parts accessory line for the Autel IA900WA wheel alignment and ADAS calibration system.
