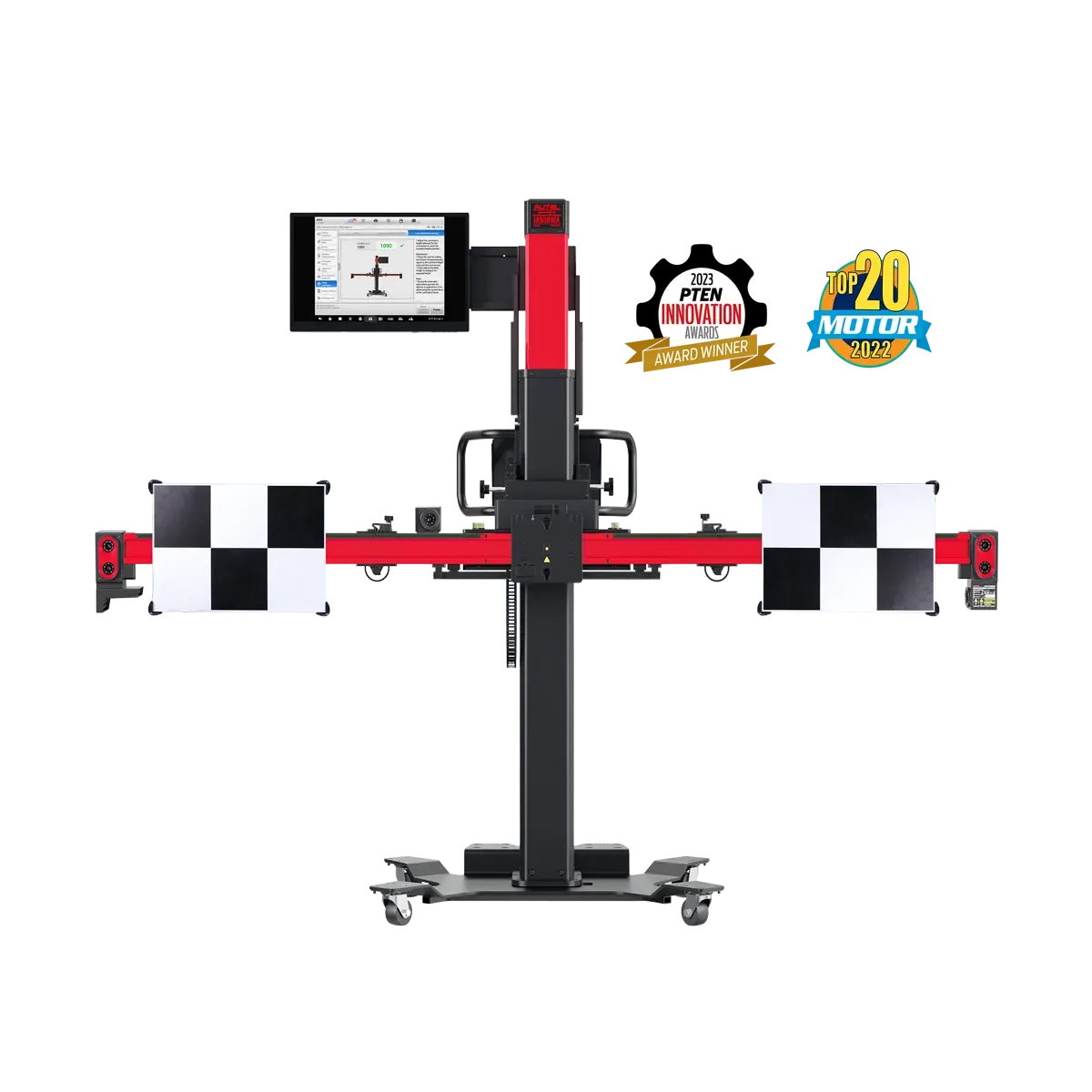

Autel Wheel Alignment & ADAS System (AUL901-09)

The Autel Wheel Alignment & ADAS System (AUL901-09) is a combined 4-wheel alignment and ADAS calibration platform designed for shops that handle both alignment work and ADAS-related repairs — windshield replacements, collision repair, camera and radar R&R, and front-end or suspension work that disturbs ADAS sensor geometry. Instead of purchasing a standalone wheel aligner and a separate ADAS calibration frame, this system integrates both functions into one unit, eliminating redundant floor space, redundant equipment spend, and the workflow friction of moving a vehicle between two separate systems.

If your shop does alignments and you're also dealing with ADAS recalibration requests after glass work or collision repairs, this is the category of tool you need to look at. A shop that only does alignments doesn't need it. A shop that only does ADAS calibration doesn't need it. The shops that need this are the ones doing both, or the shops that want to bring ADAS calibration in-house and already have alignment volume to justify the combined platform.

What This System Does

• 4-Wheel Alignment: Full wheel alignment capability — toe, camber, caster, and thrust angle — covering the passenger car and light truck vehicles your alignment rack already sees.
• ADAS Camera Calibration (Static): Target-based static calibration for forward-facing cameras, lane departure warning systems, automatic emergency braking, and traffic sign recognition. The system uses vehicle-specific Autel calibration targets positioned according to manufacturer-specified procedures.
• Radar Calibration (ACC): Adaptive cruise control radar calibration for supported makes and models. Required after any front-end work that changes the radar's angle or position.
• Surround-View and Blind-Spot Systems: Calibration support for AVM (around-view monitoring) and blind-spot monitoring systems on supported vehicles.
• Dynamic Calibration Support: For systems that require a road-drive calibration rather than static target placement, the system supports the dynamic calibration workflow when paired with a compatible MaxiSYS diagnostic tablet.
• Integrated Workflow: Alignment and ADAS calibration are handled in the same workflow, on the same vehicle, without repositioning between separate systems. This matters for cycle time in a busy shop.

ADAS Calibration — Why It Matters Now

ADAS systems are standard equipment on most new vehicles sold in the last several years. Front cameras, radar sensors, and blind-spot monitors are calibrated to the vehicle's specific geometry. Any time that geometry changes — windshield replacement, front-end collision repair, suspension work, or even wheel alignment itself — the ADAS sensors may need recalibration to manufacturer spec before the system will function correctly and safely.

Shops that send customers away for ADAS recalibration are leaving revenue on the table and creating a fragmented customer experience. Shops that bring calibration in-house capture that labor and position themselves as a complete repair facility rather than a partial one. The AUL901-09 is aimed at that second category of shop.

Who Should Buy This

• Collision repair centers that handle front-end damage and need to recalibrate cameras and radar after structural and suspension repairs.
• Glass replacement shops or shops with windshield replacement volume — windshield R&R on camera-equipped vehicles almost always requires static forward-camera recalibration.
• General repair shops with alignment volume that want to add ADAS calibration as a service without purchasing two separate systems.
• Dealerships handling multi-brand vehicle service that need a flexible calibration platform covering a wide range of makes and models.

Pairing With a MaxiSYS Diagnostic Tablet

ADAS calibration through this system is performed in conjunction with Autel's MaxiSYS diagnostic software. The tablet handles vehicle communication, guides the technician through the calibration procedure step by step, and confirms calibration completion. Compatible tablets include the MaxiSYS Ultra, MS909, MS919, and Elite II series. If you do not already have a MaxiSYS tablet in your shop, factor that into your total cost — contact us and we'll help you spec the right bundle. At $10,999.99, the AUL901-09 is priced as a professional shop tool. Verify with us what tablet configuration is included or required for your use case before purchasing.

Technical Coverage

Coverage details, specific vehicle make/model/year lists, and precise calibration target specifications are extensive and updated regularly through Autel's software subscription. Contact us at 866-217-0063 for current coverage information for the specific makes and models in your bay mix — we'll give you a straight answer on whether this system covers what you need before you buy.

What's in the Box

The AUL901-09 package includes the wheel alignment and ADAS calibration frame hardware, calibration targets for supported systems, and associated mounting and positioning components. For the complete and current box contents list, contact us directly — configuration contents can vary and we want to make sure you know exactly what you're receiving before the order is placed.

Why Buy From OEM Diagnostic Tools?

• Specialist since 2016 — We sell professional diagnostic and ADAS calibration equipment exclusively. This is not a sideline for us.
• Free shipping on orders to the contiguous US.
• Free tech support at 866-217-0063 — Call us before you buy to verify coverage. Call us after you buy if you have setup or calibration questions. We answer the phone.
• Full manufacturer warranty — Autel factory warranty applies. We handle warranty coordination.
• Honest upgrade guidance — If your shop's volume or vehicle mix is better served by a different configuration, we'll tell you. We'd rather put you in the right tool than close a sale on the wrong one.

Call 866-217-0063 for quick answers and help!
