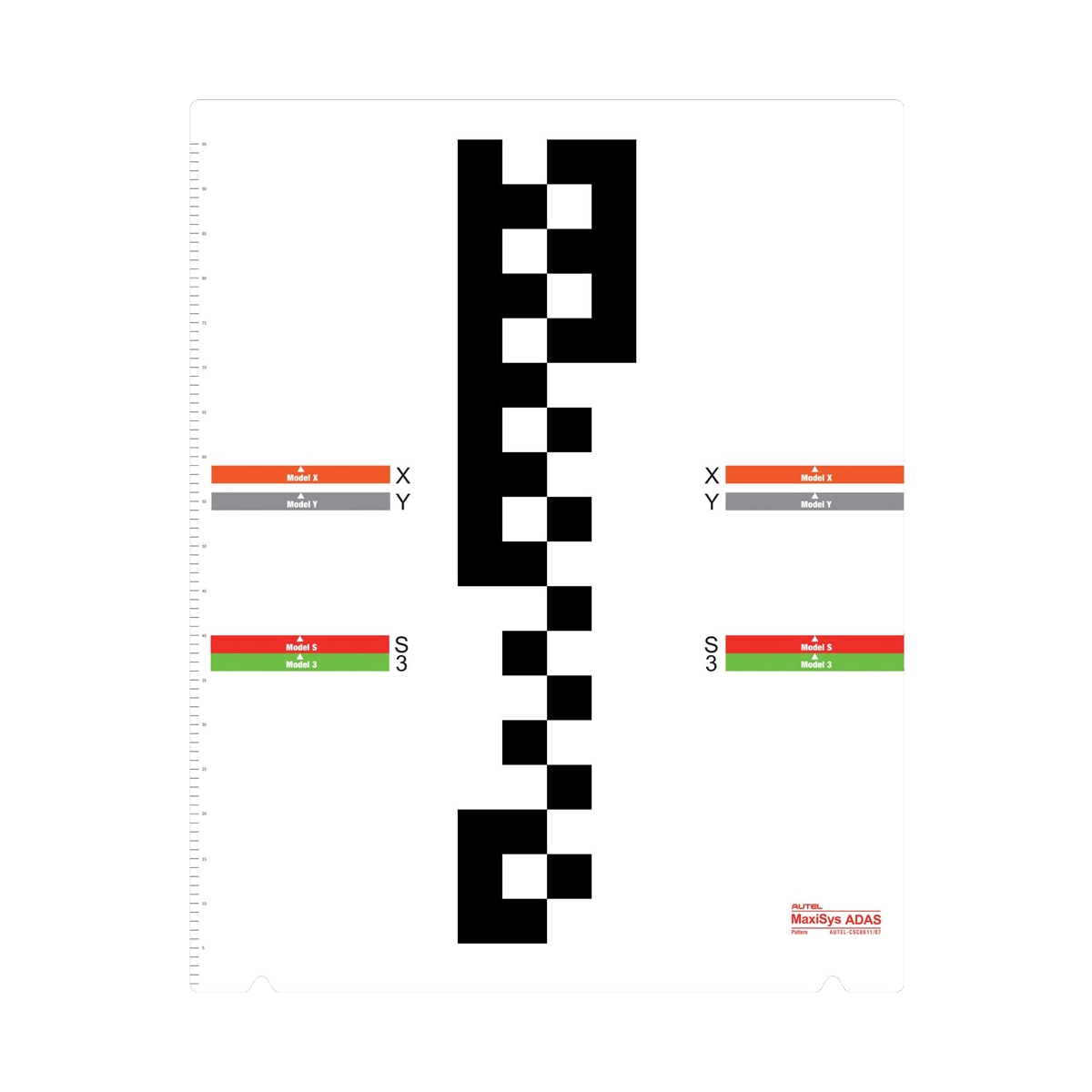

Autel Tesla Camera Calibration Pattern (CSC0611-07)

The CSC0611-07 is the Autel camera calibration pattern for Tesla Model S, X, 3, and Y vehicles (April 2019 and newer). Tesla's camera-based driver assistance systems require static calibration after any service that disturbs the cameras. This pattern works with the Autel IA900WA and MA600 frame systems and requires the appropriate Tesla Testkit cable to connect the vehicle to the tablet's VCI.

Tesla Models Covered

• Tesla Model S — April 2019 and newer
• Tesla Model X — April 2019 and newer
• Tesla Model 3 — April 2019 and newer
• Tesla Model Y — April 2019 and newer

Important: This pattern is for April 2019 and newer Tesla vehicles. Earlier Tesla models use different hardware configurations. Verify your vehicle's production date before ordering.

What This Pattern Does

Tesla uses a forward-facing camera system (and additional cameras depending on trim) for Autopilot, lane keeping, collision avoidance, and other driver assistance functions. When these cameras are disturbed — due to windshield replacement, camera mounting service, or collision repair — a static calibration procedure is required. The CSC0611-07 provides the reference pattern that the Autel system uses to guide this procedure.

Required Equipment and Connectivity

Tesla vehicles use a proprietary diagnostic interface rather than the standard OBD-II port. To use this pattern:

• Autel IA900WA frame or MA600 Mobile Frame (pattern compatible with both)
• Compatible Autel MaxiSYS tablet with ADAS software
• Autel Testkit cable for Tesla (sold separately) — required to connect the vehicle to the tablet's VCI. Standard OBD-II cables will not work for Tesla vehicles.

If you do not already have the Tesla Testkit cable, add it to your order. Without it, you cannot complete the OBD/VCI connection needed for the calibration procedure.

Frame Compatibility

• Autel IA900WA Frame: Compatible directly
• Autel MA600 Mobile Frame: Compatible directly

What Is Included

• Tesla camera calibration pattern board (CSC0611-07)
• 1-year limited warranty

IA900WA or MA600 frame, MaxiSYS tablet with ADAS software, and Tesla Testkit cable sold separately.

Who Needs This

Any shop doing glass work or collision repair on post-April 2019 Tesla vehicles. As Tesla ownership continues to grow, shops that handle these vehicles will increasingly need proper ADAS recalibration capability. The CSC0611-07 pattern combined with the right frame and Tesla Testkit cable gives you a complete static calibration solution for these models.
