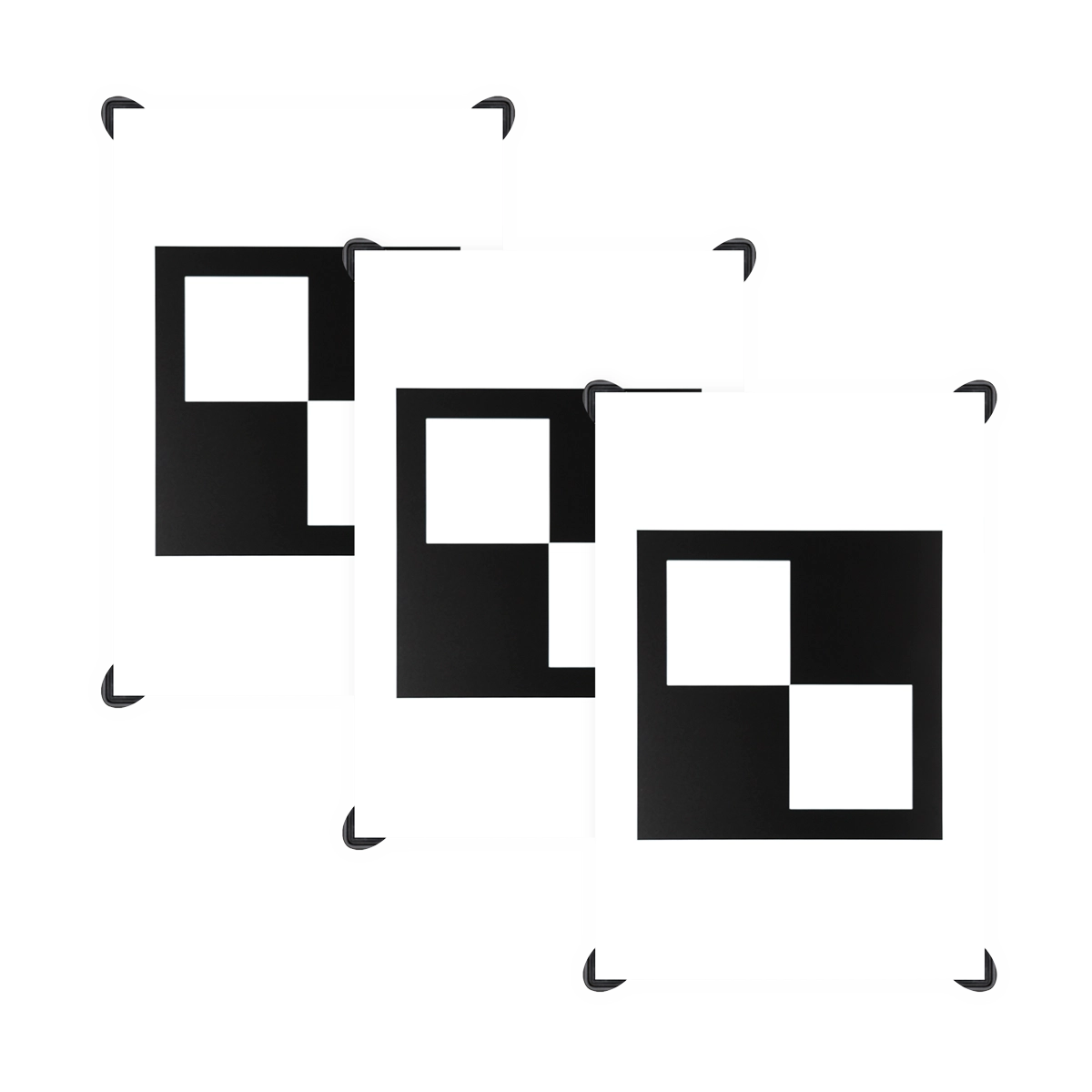

Autel Subaru Wide-Angle Camera Calibration Target 3-Pack (CSC0611-05)

The CSC0611-05 is a set of three calibration targets for Subaru's wide-angle mono camera system. This target pack is required for camera calibration on specific trim lines of Subaru Outback, Ascent, Legacy, and Crosstrek — vehicles that use a wide-angle mono camera rather than the standard stereo EyeSight camera. If you are getting Subaru calibration errors or the software is calling for the CSC0611-05, this is the part you need.

Why Three Targets?

Subaru's wide-angle mono camera calibration procedure uses a multi-target setup to establish the camera's field of view reference points. All three targets must be present and correctly positioned for the Autel software to complete the calibration sequence. This is a full set — you get all three targets needed for the procedure.

Vehicle Coverage

These targets calibrate the wide-angle mono camera on specific trim lines of:

• Subaru Outback
• Subaru Ascent
• Subaru Legacy
• Subaru Crosstrek

Important: Not all trims of these models use the wide-angle mono camera. Verify the specific model year and trim in Autel ADAS software before starting. Subaru vehicles with standard stereo EyeSight cameras use different calibration targets.

Frame System Compatibility

The CSC0611-05 targets are compatible with all Autel ADAS frame systems, including the Standard Frame, MA600 Mobile Frame, IA800, and IA900WA. However, there is one important note on slider panels:

• MA600 Frame: Works directly — no additional hardware required
• Standard Frame: Requires slider panel IA800STP (sold separately)
• IA800 Frame: Requires slider panel IA800STP (sold separately)
• IA900WA Frame: Requires slider panel IA900STP (sold separately)

If you are running a Standard, IA800, or IA900WA frame, budget for the appropriate slider panel in addition to this target set. Call us to confirm what you need for your specific frame.

What Is Included

• Three Subaru wide-angle mono camera calibration targets (full set)
• 1-year limited warranty

ADAS frame, MaxiSYS tablet with ADAS software, and slider panel (if required) sold separately.
