Autel Standard Frame CV ADAS LDW Package with MS909CV Tablet

If your shop handles light-duty commercial vehicles and you're doing windshield replacements, front-end repairs, or suspension work on Class 1-3 trucks and vans, the LDW camera has to be recalibrated before that vehicle leaves your bay. This package gives you everything needed to perform stationary Lane Departure Warning calibrations on a defined list of makes — Nissan, Infiniti, Mercedes-Benz, Honda, Acura, Hyundai, Kia, Toyota, and Lexus — plus Class 1-3 light-duty commercial vehicles.

The MS909CV is Autel's commercial-vehicle-focused diagnostic tablet. It ships with ADAS calibration software pre-installed, so you're not sourcing software separately or waiting for downloads before your first job. The included MaxiFlash VCI J2534 passthrough device handles the OBD communication side, meaning you can perform OEM-level ADAS resets and calibration triggers without a separate scan tool on those vehicles.

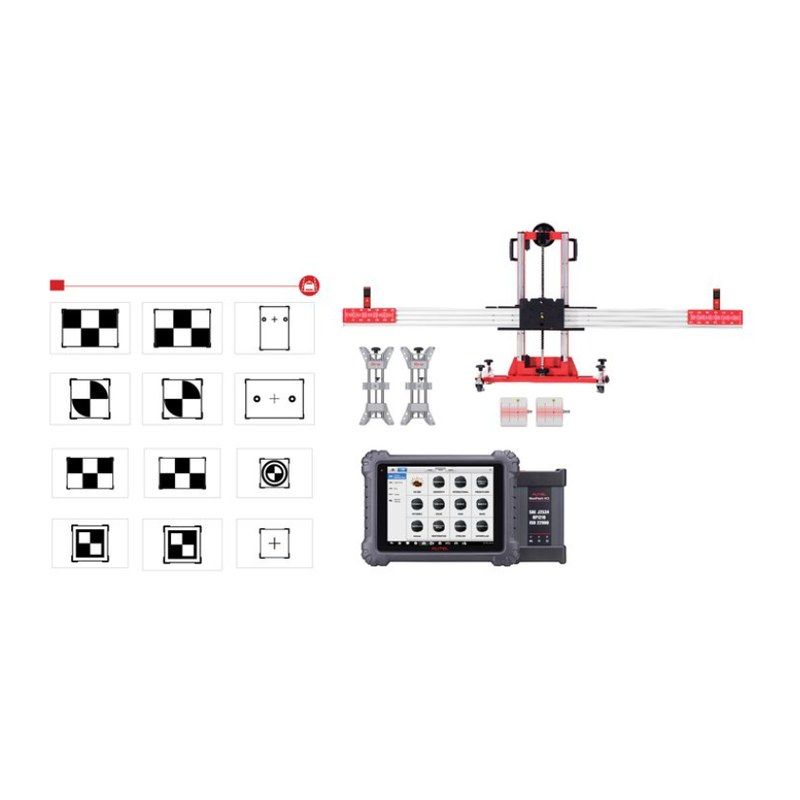

What's in the Box

• MaxiSYS MS909CV Tablet: Commercial-vehicle diagnostic tablet with ADAS calibration software pre-installed
• MaxiFlash VCI: J2534 passthrough programming device for OBD communication and calibration triggers
• ADAS Standard Calibration Frame: The CSC-style frame that positions calibration targets at the correct distance and height in front of the vehicle
• LDW Calibration Targets: Vehicle-specific targets for Nissan, Infiniti, Mercedes-Benz, Honda, Acura, Hyundai, Kia, Toyota, and Lexus
• Three Digital Tape Measures: For precise target placement measurements required by the calibration procedure
• Two Wheel Dials: For measuring and recording wheel position during setup
• Wheel Clamps: Attach to the vehicle's wheels to anchor the positioning setup
• Vehicle-Positioning Wheel Clamp Lasers: Laser alignment tools that project reference lines to ensure the frame and targets are centered on the vehicle's thrust line

Vehicle Coverage

This package is built specifically for LDW (Lane Departure Warning) camera calibration on the following makes:

• Nissan and Infiniti
• Mercedes-Benz
• Honda and Acura
• Hyundai and Kia
• Toyota and Lexus
• Class 1-3 light-duty commercial vehicles

If your customer base runs primarily these brands — which describes the majority of mixed-fleet light commercial shops — this is the right entry point. If you need broader domestic or European make coverage, or if you're calibrating radar/ACC sensors in addition to forward cameras, contact us to discuss the expanded ADAS packages.

When Does a Shop Need This

Any time a windshield is replaced on a vehicle with a forward-facing LDW camera, static recalibration is required before the vehicle is returned to service. The same applies after front-end collision repairs, hood or fascia R&R, or any suspension work that changes ride height or steering geometry on a camera-equipped vehicle. Insurance-paid work, fleet maintenance contracts, and dealer overflow all generate this work. If you're already doing the glass or front-end repair, keeping calibration in-house rather than subcontracting it adds a direct revenue line on jobs you're already touching.

This is a stationary calibration kit — it does not perform dynamic (drive-cycle) calibration. Most LDW systems on these makes can be fully calibrated statically in a flat, controlled bay. If you encounter vehicles that require dynamic calibration after static setup, that step is performed on the road using the MS909CV's guided drive-cycle function.

Warranty

• Coverage: One-year limited warranty on hardware
• Warranty service handled through Autel's U.S. support network
