Autel Standard Frame CV ADAS LDW Package (CVALDW)

Lane Departure Warning systems require precise static calibration after windshield replacement, sensor removal, or any repair that disturbs the forward-facing camera. The Autel Standard Frame CV ADAS LDW Package gives commercial vehicle shops a complete hardware kit to perform that calibration correctly on light-duty Class 1-3 trucks and vans — covering the brands most common in fleet and commercial work.

This is a stationary calibration package. You position the vehicle, set up the frame and targets according to the vehicle-specific procedure, and the MS909CV tablet (sold separately) walks you through the calibration routine. No guesswork, no improvised setups.

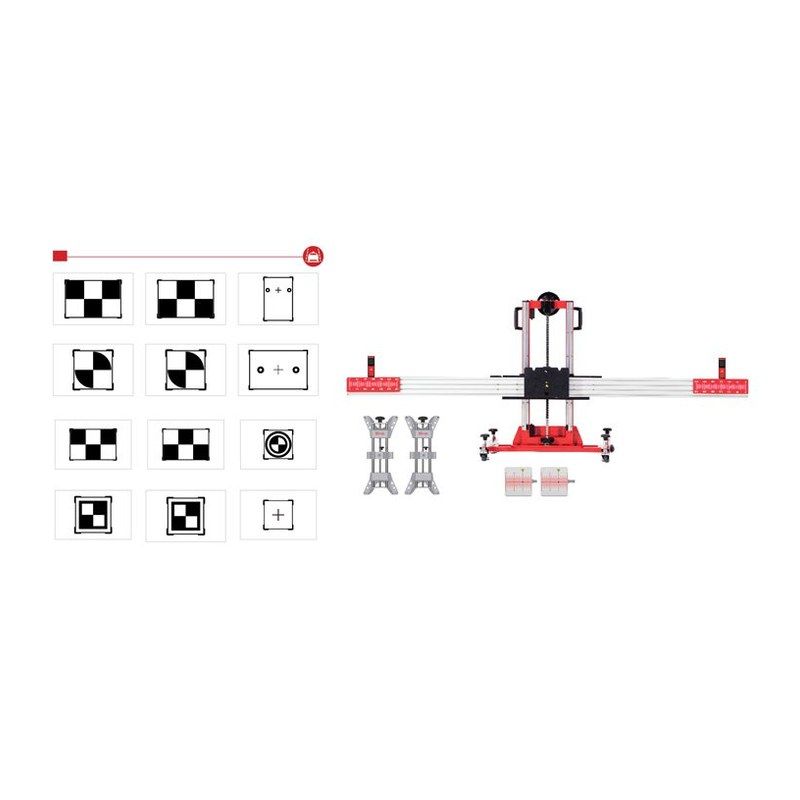

What's in the Box

• ADAS Standard Calibration Frame — the structural backbone for mounting calibration targets at the correct height and distance
• LDW Camera Targets — vehicle-specific targets for Nissan, Infiniti, Mercedes-Benz, Honda, Acura, Hyundai, Kia, Toyota, and Lexus
• Three Digital Tape Measures — for accurate vehicle-to-target distance measurement during setup
• Two Wheel Dials — used to measure and confirm vehicle centering
• Wheel Clamps with Vehicle-Positioning Lasers — attach to the wheels to project reference lines for precise frame alignment
• ADAS Calibration Software Upgrade — one year of software updates included
• One-Year Limited Warranty

Vehicle Coverage

Supports static LDW camera calibration on the following makes in Class 1-3 light-duty configurations:

• Nissan and Infiniti
• Mercedes-Benz
• Honda and Acura
• Hyundai and Kia
• Toyota and Lexus

Coverage is limited to the targets included. If your shop runs European heavy lines, GM, Ford, or Stellantis fleets heavily, verify target availability before purchasing.

What You Need to Run It

This package does not include a diagnostic tablet. You must pair it with the Autel MaxiSYS MS909CV — the commercial vehicle variant of the MS909 — to run calibration procedures. The MS909CV provides the guided calibration software, live data, and the ADAS module that drives the step-by-step setup instructions. If you don't already have the MS909CV, contact us and we can quote a bundle.

Who Needs This Kit

• Commercial fleet shops doing windshield R&R on light-duty trucks and vans with LDW systems
• Dealerships servicing Nissan, Toyota, Honda, Hyundai, Kia, or Mercedes commercial vehicle lines
• Independent shops that want to keep ADAS calibration in-house rather than subcontracting it
• Glass shops adding ADAS recalibration to their service menu for Class 1-3 vehicles

If you're primarily doing passenger cars rather than commercial vehicles, look at the standard Autel ADAS LDW package. The CV designation means this kit and the required MS909CV tablet are configured for the commercial vehicle side of these brands.

Technical Notes

• Static (stationary) calibration only — dynamic calibration requires driving and is handled through the MS909CV software independently
• Frame setup and target placement dimensions are vehicle-specific — the MS909CV software provides exact measurements for each procedure
• Exact frame dimensions and weight available on request
