Autel Standard Frame CV ADAS All Systems with MS909CV Tablet (MS909CV-1)

This is Autel's commercial-vehicle ADAS calibration package built around the Standard Calibration Frame, IA800 Camera Positioning System, and the MS909CV diagnostic tablet. If your shop handles heavy-duty trucks, fleet vehicles, or mixed commercial/passenger work and you're doing windshield replacements, front-end repairs, or suspension work that requires ADAS recalibration, this is the system designed for that workload.

At $22,215, this is a professional-grade investment. It covers static calibration for lane departure warning (LDW) cameras and related forward-facing systems across a broad range of makes. The CV designation means the MS909CV tablet is configured for commercial vehicle protocols alongside passenger car coverage.

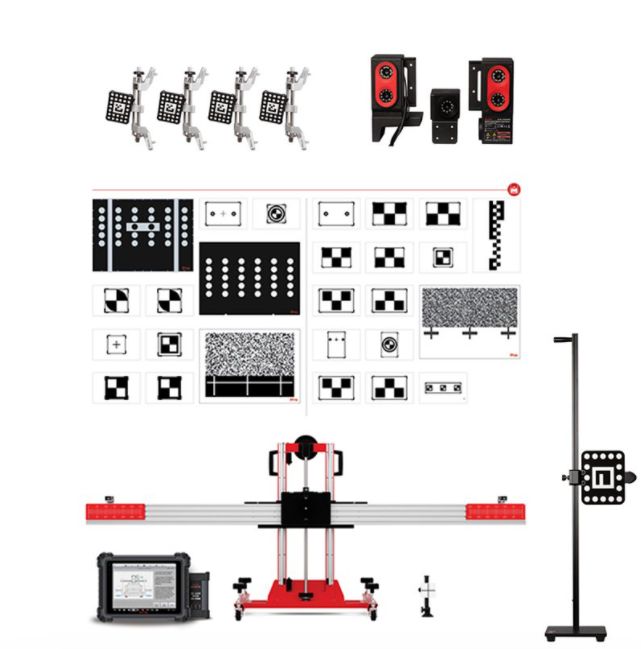

What's Included

• Standard Calibration Frame: The CSC (Calibration Standard Components) upright frame that positions targets at the precise distances and heights required by OEM calibration procedures
• IA800 Intelligent Camera Positioning System: Camera-based wheel target positioning that guides you to exact frame placement without manual measuring — reduces setup error and speeds up the process
• MS909CV Tablet: MaxiSYS 909 in commercial-vehicle configuration; handles ADAS calibration software plus full diagnostic functions across passenger and commercial platforms
• ADAS Software Upgrade: Unlocks the full ADAS calibration module on the MS909CV
• LDW Calibration Targets and Pattern Boards: Vehicle-specific targets for Lane Departure Warning systems on Alfa Romeo, Honda, Genesis, Volkswagen, Mercedes-Benz, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, and Toyota/Lexus
• Wheel Clamps: Mount to the wheels for IA800 positioning reference
• Laser Crossbar: Used for vehicle centerline alignment during target setup
• LDW Target Case: Carries and protects the calibration target boards
• Target Board Holder: Mounts targets to the frame at the correct height and position
• Digital ADAS Package: Software licenses and digital resources for the covered calibration procedures
• One-Year Limited Warranty

What This System Calibrates

This package is focused on static LDW (Lane Departure Warning) camera calibration. The target set covers forward-facing camera systems on the makes listed above. If you need radar (ACC), night vision, blind-spot, or AVM calibration beyond what's included, contact us — Autel's modular target system allows expansion.

The CV tablet adds commercial vehicle protocol support (J1939, J1708, and OBD-HD coverage) so you're not running two separate tools for a mixed fleet shop.

Who Needs This Configuration

• Fleet and commercial shops doing windshield R&R or front-end work on vehicles equipped with LDW systems
• Multi-line independent shops that handle both passenger and light commercial vehicles and need one tool for both
• Body shops that have added ADAS recalibration as a service line
• Dealerships with commercial vehicle franchises alongside passenger car lines

If your work is exclusively passenger cars with no commercial vehicle volume, the standard MS909 package (without CV) covers the same ADAS targets at a lower price point. If you need broader ADAS coverage beyond LDW — including radar, 360-degree AVM, or night vision — step up to the MA600 or IA900WA-based packages. Call us and we'll match the right configuration to your actual vehicle mix.

Technical Notes

• Calibration type: Static (in-bay). Dynamic calibration requires a road drive with supported vehicles and is handled through the tablet software.
• Frame type: Standard CSC frame — fixed upright design. Not the mobile MA600 frame.
• Positioning system: IA800 (camera-based) vs. IA900WA (wheel-alignment-integrated). The IA800 is the correct match for this frame package.
• Exact target dimensions, OEM-required distances, and model-year coverage details: Available on request or in the Autel ADAS target compatibility guide.
