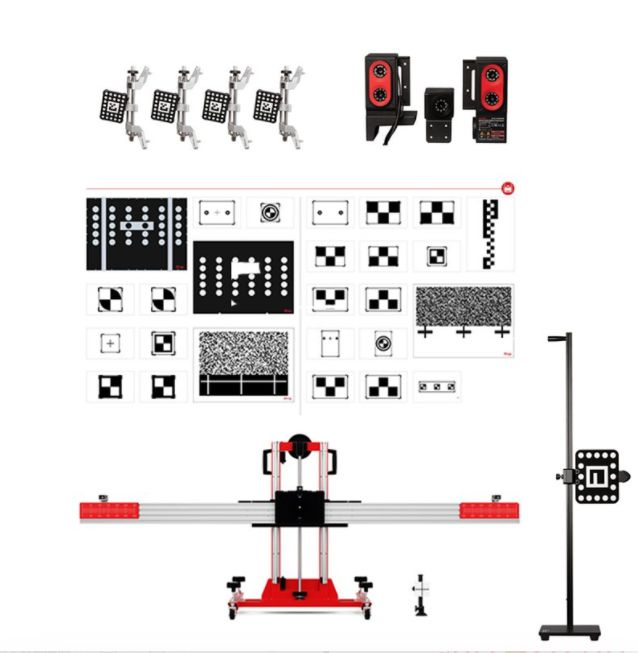

Autel Standard Frame ADAS LDW + IA800 Package

This is Autel's comprehensive static ADAS calibration package for shops that need to perform Lane Departure Warning (LDW) camera calibrations across a wide range of import and domestic nameplates. It pairs the MA600 foldable calibration frame with the IA800 Intelligent Camera Positioning System and a full library of vehicle-specific LDW targets — everything you need to do the job right the first time, without sourcing components piecemeal.

If your shop touches windshields, front-end repairs, or suspension work on any of the covered vehicles, calibration is no longer optional. This package gets you set up to handle it in-house rather than subcontracting it out.

What This Package Is Built For

LDW systems use forward-facing cameras — typically mounted at the windshield or behind the rearview mirror — to detect lane markings. Any time that camera is disturbed (windshield R&R, bracket removal, front-end collision repair, or even a significant suspension alignment change), the system requires static recalibration using a precisely positioned target board. This package provides exactly that capability for the following makes:

• Alfa Romeo
• Honda / Acura (multiple LDW generations)
• Hyundai / Kia (multiple LDW generations)
• Mazda
• Mercedes-Benz
• Mitsubishi
• Nissan / Infiniti (multiple LDW generations)
• Subaru
• Toyota / Lexus (multiple LDW generations)
• Volkswagen / Audi / Porsche
• Genesis

What's in the Box

The package ships with every component needed for a complete LDW calibration setup:

• MA600 Foldable Calibration Frame — the standard Autel CSC frame that positions targets at the correct height and distance in front of the vehicle
• IA800 Intelligent Camera Positioning System — wheel-mounted positioning unit that precisely locates the frame relative to the vehicle's centerline and camera position
• ADAS Calibration Software Upgrade — software license to enable ADAS calibration on your compatible MaxiSYS tablet
• LDW Target Case — hard-shell storage and transport case for the target boards
• Target Board Holder — mounts target patterns to the calibration frame at the correct angle and height
• Pattern Board — generic board component used with vehicle-specific target patterns
• Wheel Clamps — secure the IA800 positioning unit to the vehicle's wheels
• Laser Crossbar — used to establish vehicle centerline for frame alignment
• L-Shaped Bracket (CSC1500/04) — assists in measuring distance from the front wheel for accurate frame placement
• Laser Assist Mirror (CSC1500/06) — makes it easier to view the undercarriage when setting centerline
• Plumb Line (CSC1500/07) — transfers the vehicle centerline to a reference point on the floor
• Laser-Assisted Board (CSC1500/08) — used with the five-line or two-line laser to locate vehicle centerline
• Five-Line Laser (CSC1500/05) — establishes the perpendicular axis from any reference point
• Two-Line Laser (CSC1500/03) — aligns the calibration frame to the vehicle centerline
• One-Year Limited Warranty

Vehicle-Specific LDW Targets Included

Each target is identified by its Autel CSC part number, covering multiple generations of LDW systems per nameplate:

• Alfa Romeo: CSC0601/10
• Honda / Acura LDW I: CSC0601/05
• Honda / Acura LDW II: CSC0601/08-L, CSC0601/08-R, CSC0601/24-01
• Hyundai / Kia LDW: CSC0601/09
• Hyundai / Kia LDW II: CSC0601/07
• Hyundai / Kia LDW III: CSC0701/23
• Mazda LDW I: CSC0601/12
• Mazda LDW II: CSC0601/13-L, CSC0601/13-R
• Mercedes LDW I: CSC0601/02
• Mercedes LDW II: CSC0601/19
• Mitsubishi LDW I: CSC0601/22-L, CSC0601/22-R
• Nissan LDW II: CSC0601/03-L, CSC0601/03-R
• Nissan LDW III: CSC0601/04-L, CSC0601/04-R
• Nissan / Infiniti LDW I: CSC0601/06-L, CSC0601/06-R
• Subaru LDW I: CSC0601/14
• Subaru LDW II: CSC0601/17
• Toyota LDW II: CSC0601/15
• Toyota LDW IV: CSC0601/11-01
• Toyota / Lexus LDW I: CSC0601/11
• Toyota / Lexus LDW III: CSC0601/25
• VW / Audi / Porsche LDW I: CSC0601/01

The IA800: Why It Matters

The IA800 Intelligent Camera Positioning System takes the guesswork out of frame placement. Rather than relying on tape measures and floor marks alone, the IA800 attaches to the vehicle's wheels and uses that reference to precisely position the calibration frame relative to the camera. This is important because even small misalignments in target placement can result in a calibration that passes the software check but leaves the system pointing slightly off — which is worse than no calibration at all. The IA800 eliminates that variable.

Who Needs This Package

This configuration makes sense for shops that:

• Perform windshield replacements and want to bring LDW recalibration in-house rather than sending cars to a dealer or ADAS subcontractor
• Do front-end collision repair or suspension work on the covered nameplates
• Want a single package that handles LDW across Japanese, Korean, German, and Italian imports without buying individual target kits separately
• Already have a compatible MaxiSYS tablet (MS909, MS919, Ultra, or Elite) or plan to add one

Note: This package covers LDW (Lane Departure Warning) camera calibration. If your shop also needs to calibrate forward-facing radar (ACC/AEB), blind-spot sensors, or surround-view cameras, those require additional targets not included here. Call us to discuss the right expansion path for your vehicle mix.
