Autel Standard Frame ADAS All Systems + IA800 Package (IA800NO)

If your shop handles windshield replacements, front-end alignments, or suspension repairs on late-model passenger vehicles, ADAS recalibration is no longer optional — it's required. The Autel IA800NO package is a complete static ADAS calibration solution covering Lane Departure Warning (LDW), Blind Spot Detection (BSD), Rear Cross Traffic Warning (RCW), Around View Monitor (AVM), Night Vision (NV), and Adaptive Cruise Control (ACC) systems across a wide range of domestic, Asian, and European makes.

This package combines Autel's Standard Calibration Frame with the IA800 intelligent frame positioning system, which replaces manual tape measure setup with digital tape measures and laser-guided positioning — cutting setup time significantly and reducing placement errors. The MaxiSYS MS909 diagnostic tablet is required to run calibrations and is sold separately.

ADAS Systems Covered

• LDW (Lane Departure Warning): Forward-facing camera calibration for lane-keep assist systems
• BSD (Blind Spot Detection): Rear-quarter radar/sensor calibration for blind-spot monitoring
• RCW (Rear Cross Traffic Warning): Rear sensor calibration for cross-traffic alert systems
• AVM (Around View Monitor): 360-degree surround camera system calibration
• NV (Night Vision): Infrared/thermal camera calibration for night vision assist
• ACC (Adaptive Cruise Control): Forward radar calibration for adaptive cruise and automatic emergency braking

Vehicle Coverage — Makes and Target Boards Included

The package ships with a full set of OEM-matched target boards and calibration components for the following makes:

• Honda / Acura: LDW targets CSC0601/05, CSC0601/08-L, CSC0601/08-R, CSC0601/09; AVM targets CSC1004/02, CSC1004/03; LaneWatch CSC0805-02
• Toyota / Lexus: LDW CSC0601/15, CSC0601/11; AVM CSC1004-10; Night Vision CSC603/03; LIDAR Reflector CSC802/04; One-Time Recognition LDW CSC0601-25
• Nissan / Infiniti: LDW CSC0601/06-L, CSC0601/06-R, CSC0601/03-L, CSC0601/03-R; RCW CSC1006/03, CSC1006-05; AVM CSC1004/11; Lane Keep boards CSC601/03-L, CSC601/03-R
• Volkswagen / Audi / Porsche: LDW CSC0601/01; RCW CSC0806/01; AVM CSC0804/01; ADR Calibration Plate CSC0602/08; LIDAR Board CSC602/04
• Mercedes-Benz: LDW CSC0601/02, CSC601/19; RCW CSC1006/01, CSC1006/02
• Subaru: Lane Keep CSC601/17; LDW CSC0601-17
• Mazda: Lane Keep CSC601/13-L, CSC601/13-R
• Mitsubishi: Lane Keep CSC601/22-L, CSC601/22-R; AVM CSC1004-09
• Cadillac: AVM CSC1004/06
• Hyundai / Kia / Genesis: AVM CSC1004/04; Genesis LDW CSC0701-23
• Alfa Romeo: LDW CSC0601-10
• Hitachi Radar: Plate CSC0802-03

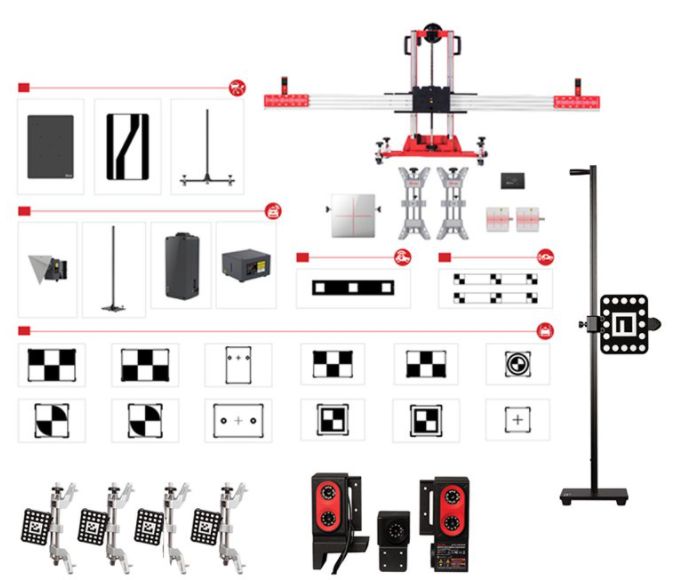

What's in the Box — Complete Components List

• ADAS Standard Calibration Frame with push-button power lifter and adjustable base
• Wheel Clamps (CSC0500/01) with integrated positioning lasers (CSC0500/02)
• Pattern Board 0600/06 with crossbar 0600/05
• Base Crossbar 0600/02 and Base Holder 0600/01
• Sliding Laser Plate and Flip-Up Reflector with Laser Position Ruler
• Mounted Tape Measure and Center Axis Laser 0500/04
• ACC Reflector 0602/01 and Radar Calibration Plate 0602/02
• Radar Calibration Box 0605/01
• Corner Reflector 0802/01 and Target Stand CSC0802
• Night Vision Calibration Box 0603/01 and Night Vision Calibration target 0803/01
• IA800 Digital Tape Measures (3x) — replaces manual tape for faster, more accurate frame placement
• Digital Tape Measure Crossbar Brackets — holds digital tape measures during frame positioning
• Front Wheel Targets — used with digital tape measures to locate accurate distance from front axle
• Center Digital Tape Measure Bracket — finds distance from front of car measuring from emblem or bumper
• Placement Boards — designed for use on an alignment lift
• Two-Wheel Dials for vehicle centering
• All make-specific LDW, AVM, RCW, NV, ACC, LIDAR, and radar target boards listed above
• One-year limited warranty

IA800 — Why It Matters for Setup Speed

The IA800 is Autel's intelligent positioning module. Instead of manually measuring with a tape measure and hoping for precise placement, the IA800 system uses three digital tape measures with laser-guided wheel targets to calculate and confirm frame position relative to the vehicle's front axle. For a shop running multiple ADAS calibrations per day, this reduces per-job setup time and cuts down on repeat calibrations caused by placement errors. It's the difference between setup that takes 20-plus minutes and setup that a trained tech can execute in a fraction of that time.

Who Needs This Package

This package is built for shops that want one system to cover the full range of passenger vehicle ADAS calibration — without buying multiple separate kits for different makes. If you're doing windshield replacements across a broad mix of Honda, Toyota, Nissan, VW, Mercedes, Subaru, Hyundai, and domestic vehicles, this is the package that covers all of those in a single purchase.

If your shop primarily services one brand or a narrow make-mix, a make-specific or reduced-target package may cost less and still cover your workflow. If your volume is mixed and you want to say yes to every ADAS calibration that comes through the door, this all-systems bundle is the right call. Contact us and we can walk through your vehicle mix to confirm coverage before you buy.

What You Still Need

• MaxiSYS MS909 tablet (sold separately) — required to run all calibrations. The MS909 provides the guided calibration workflow, SAS reset capability, and the live data verification that confirms the calibration completed correctly. The IA800NO frame and targets do not operate without it.
• Flat, level floor space — static calibrations require a level surface. An alignment lift is supported via the included placement boards.

Technical Specifications

• Calibration types: Static (all systems in this package); dynamic calibration requires road driving per OEM procedure after static setup
• Compatible tablet: Autel MaxiSYS MS909 (required, not included)
• Warranty: One year limited
• Frame type: Standard Calibration Frame (CSC platform)
• Positioning system: IA800 with three digital tape measures and laser wheel targets
• Systems covered: LDW, BSD, RCW, AVM, NV, ACC
• Vehicle type: Passenger vehicles (see make/target list above for specific coverage)
