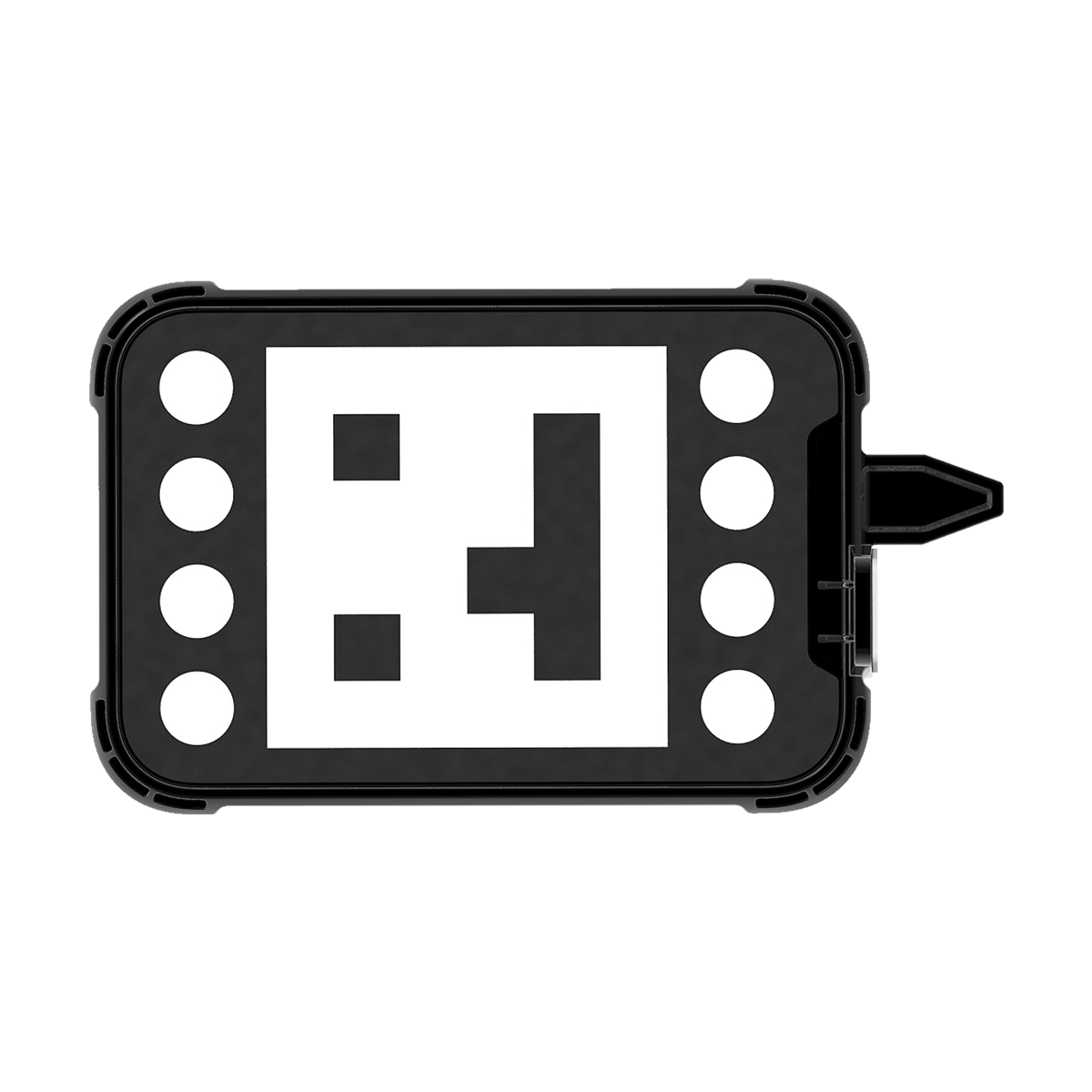

Autel Ride Height Targets CSC0500-20 — Automated Ride Height Measurement for IA900WA

The CSC0500-20 Ride Height Target is an accessory for the Autel IA900WA wheel alignment and ADAS calibration system that enables rapid, automated vehicle ride height measurement. Instead of manually measuring vehicle height at each corner with a tape measure or ride height gauge, the system uses these targets to capture height data automatically as part of the alignment workflow.

What This Accessory Does

Vehicle ride height is a critical input for accurate wheel alignment and ADAS calibration on many modern vehicles. Suspension height affects camber, toe, and ADAS sensor aim angles. Getting an accurate ride height reading traditionally means stopping to measure manually at each wheel. The CSC0500-20 targets integrate with the IA900WA system to handle this measurement automatically during the alignment process.

• Enables rapid vehicle wheel height measurement
• Eliminates the need for manual ride height measurement
• Compatible with the IA900WA wheel alignment and ADAS calibration system
• Integrates into the existing IA900WA workflow
• One-year limited warranty from Autel

Who Needs This Accessory

If your IA900WA system requires ride height data for specific vehicle alignment procedures and you are currently measuring manually, the CSC0500-20 targets speed up that part of the process. This is particularly relevant for shops that do a high volume of alignments on vehicles with ride height-dependent suspension geometry — air suspension vehicles, lowered vehicles, and vehicles where ADAS sensor aim specs vary by ride height.

System Compatibility

CSC0500-20 is designed for use with the Autel IA900WA wheel alignment and ADAS calibration frame. Part of the IA900 Parts accessory ecosystem alongside tire clamps (CSC0500-17), wide angle targets (CSC0500-21), and wheel-off hub adapters (CSC0500-31).
