Autel Pattern Board Bracket CSC050A-05 — Large Non-Magnetic Target Board Holders for Standard and IA800 Frames

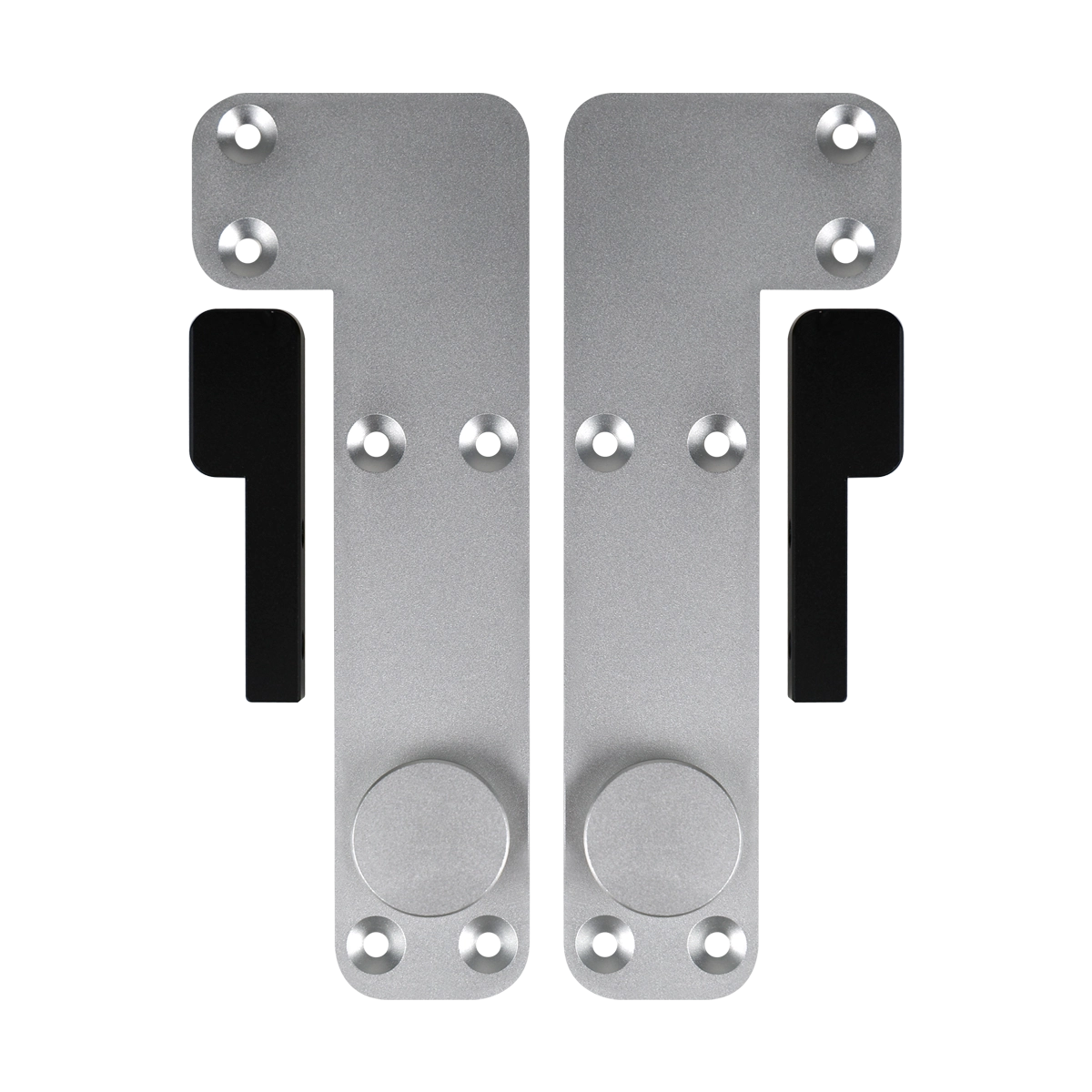

The CSC050A-05 is a set of metal pattern holder brackets that enable large non-magnetic ADAS target boards to be used on the Autel Standard frame and IA800 frame systems. These brackets are the hardware solution for shops that need to use large-format physical target boards — boards that cannot simply attach magnetically to the frame crossbar — on either of these two frame platforms.

What These Brackets Do

Autel Standard and IA800 frames typically accept magnetic target boards and patterns directly. However, some larger target boards used for specific ADAS calibrations are not magnetic and require a physical holder bracket to attach to the frame. The CSC050A-05 brackets provide that mechanical attachment point, allowing these larger boards to be mounted securely and at the correct position for calibration.

• Set of metal pattern holder brackets
• Compatible with Autel Standard ADAS frame systems
• Compatible with Autel IA800 ADAS frame systems
• Enables large non-magnetic target boards to be used on these frames
• Metal construction for durability
• One-year limited warranty

Who Needs These Brackets

If you own an Autel Standard or IA800 frame and need to perform calibrations that require large non-magnetic target boards, these brackets are necessary hardware. Without them, those larger boards have no means of secure attachment to the frame. This is particularly relevant when expanding calibration capability beyond the standard target set that shipped with your frame.
