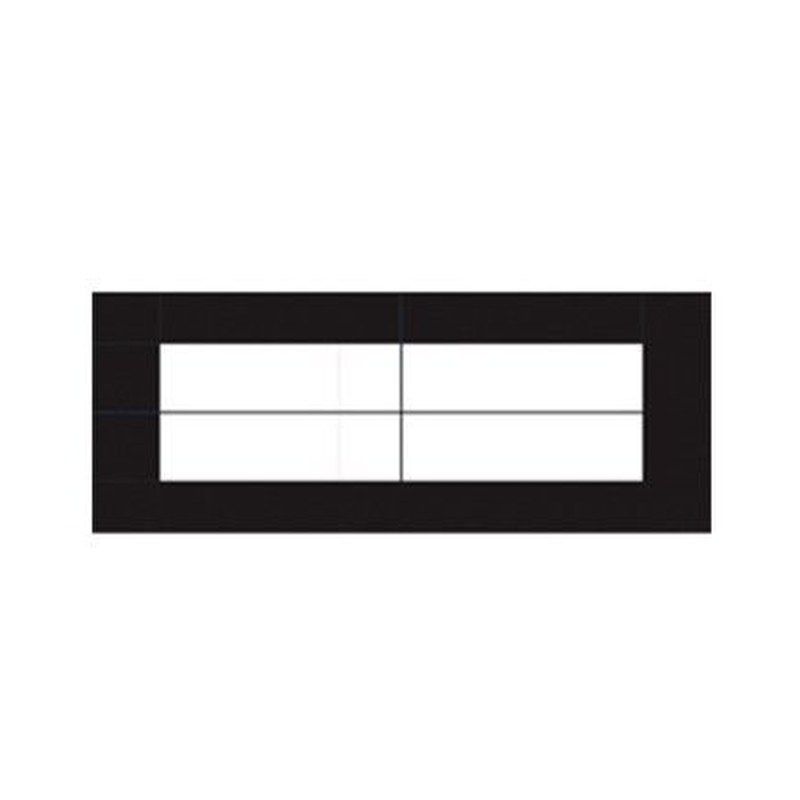

Autel Night Vision Calibration Target (CSC0603-03)

The Autel CSC0603-03 is the dedicated night vision calibration target for Autel's CSC-based ADAS calibration system. If your shop replaces windshields or does front-end work on vehicles equipped with infrared night vision cameras — primarily found on higher-trim BMWs, Mercedes-Benz, and select Cadillac and Audi models — this is the specific target component required to complete the calibration procedure correctly. It is not a standalone system; it mounts to the Autel CSC calibration frame and is used in conjunction with a MaxiSYS tablet (MS909, MS919, Ultra, or Elite II) running Autel's ADAS software.

What This Target Does

Night vision systems use a dedicated infrared (IR) camera, typically mounted low on the front grille or bumper, to detect pedestrians and animals beyond the reach of headlights. After any procedure that disturbs the camera's aim — grille removal, bumper R&R, front-end collision repair, or in some cases a full wheel alignment — the system requires static target-based calibration to restore proper aim and detection range.

The CSC0603-03 provides the specific thermal or IR-pattern target the vehicle's night vision camera is looking for during the calibration routine. The MaxiSYS software walks the technician through exact positioning relative to the vehicle, then commands the camera alignment check and stores the calibration.

Who Needs This Target

• Windshield and glass shops servicing European luxury vehicles with active night vision systems
• Collision repair centers handling front-end damage on BMW 5/7 Series, Mercedes S-Class/E-Class, Cadillac CT6, or Audi A6/A8 equipped with night vision
• Independent shops that already own the Autel CSC frame and want to expand their ADAS calibration capabilities without investing in a separate system
• Dealers and high-volume European specialists building out a complete Autel ADAS target library

How It Fits Into the Autel ADAS System

Autel's CSC system is modular. The base frame (sold separately) is the backbone, and vehicle-specific targets — front camera, radar, surround-view, blind spot, and night vision — are ordered based on which systems your customer vehicles actually have. The CSC0603-03 is the night vision target module in that system.

You do not need to buy a separate calibration rig for night vision. If you already have the CSC frame, this target plus your existing MaxiSYS tablet is all you need to add night vision calibration to your service menu.

Calibration Workflow Overview

• Step 1: Set up the CSC frame at the vehicle in the correct lane, using the software-guided positioning process
• Step 2: Mount the CSC0603-03 night vision target at the specified height and distance indicated by the vehicle's calibration procedure
• Step 3: Connect to the vehicle via the MaxiSYS tablet, select the night vision calibration function in the ADAS software
• Step 4: Follow the on-screen prompts — the software verifies target recognition, performs the calibration, and confirms successful completion
• Step 5: Print or save the calibration report for the repair order

Exact positioning distances and frame height settings are determined by the vehicle make/model and are provided by the MaxiSYS software in real time — you do not need to look them up manually.

What's Included

• CSC0603-03 Night Vision Calibration Target panel
• Mounting hardware for attachment to the Autel CSC frame

The CSC frame, MaxiSYS tablet, and ADAS software subscription are not included and must be purchased separately if not already owned.

Key Considerations Before Buying

• This target is compatible with the Autel CSC calibration frame system — confirm you have the CSC frame before ordering
• Night vision calibration frequency depends on your vehicle mix; if you rarely see BMW 7 Series or Mercedes S-Class, assess demand before purchasing
• If you are building out a new Autel ADAS setup from scratch, call us — we can spec the right combination of frame, targets, and tablet for your shop's actual vehicle mix
• Exact vehicle coverage list is available on request; contact us before purchasing if you have a specific make/model you need to confirm
