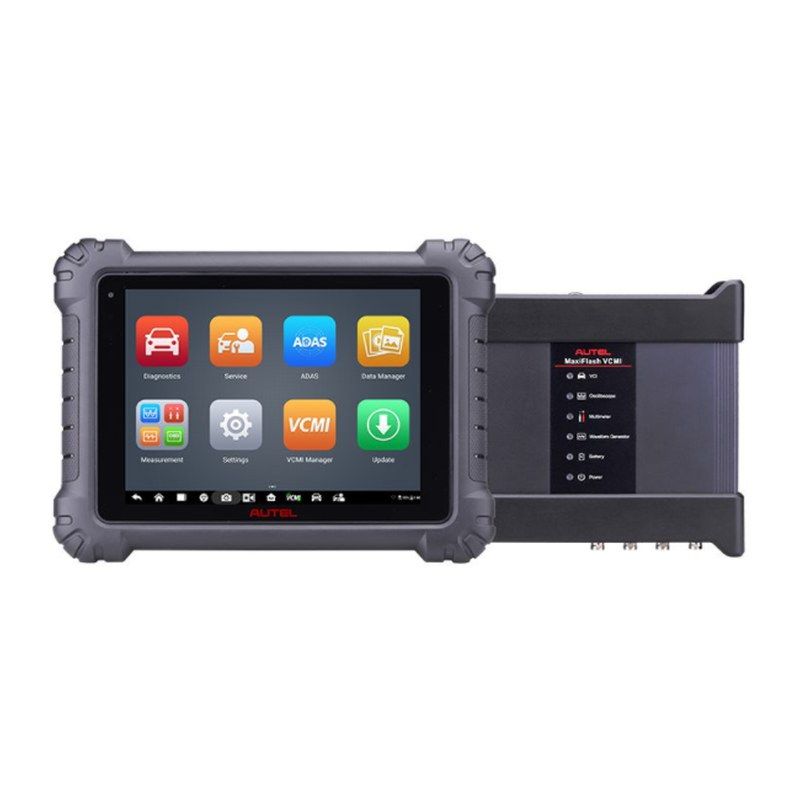

Autel MaxiSYS MS919 + ADAS — Full Diagnostic and ADAS Calibration Bundle

The MS919 + ADAS package puts Autel's most capable mid-range scan tablet together with the ADAS software license that unlocks full calibration coverage on over 100 vehicle brands. If your shop handles anything from compact cars through Class 6 medium trucks — and you're doing windshield replacements, front-end work, or suspension repairs that disturb cameras and radar sensors — this is the configuration that covers the entire job from first scan to final calibration verification.

Who This Is For

This package fits shops that already perform or want to start performing ADAS recalibrations in-house. The MS919 alone is a serious diagnostic platform; adding the ADAS license means you're not sending calibration work out the door. It's a particularly strong fit for shops running a mix of domestic, import, European, and medium-duty commercial vehicles — the MS919's coverage stretches from Alfa Romeo and Tesla to RAM trucks, Ford, and Mercedes-Benz Sprinters.

MaxiSYS MS919 Diagnostic Platform

• Vehicle Coverage: Over 80 vehicle brands, from passenger cars and light trucks through Class 6 medium-duty trucks. Includes domestic, Asian, and European makes.
• MaxiFlash VCMI (5-in-1): The Vehicle Communication and Measurement Interface replaces multiple tools. It handles wireless vehicle communications while also functioning as a 4-channel oscilloscope, waveform generator, multimeter, and CAN bus tester — in one unit.
• Communication Protocols: Supports DoIP, D-PDU, and Mega CAN — the protocols required for late-model vehicles with high-speed networks and over-the-air-capable architectures.
• Intelligent Diagnostics: Guides technicians from fault code through repair procedure to post-repair test with detailed repair information, component illustrations, and waveform library references. Reduces diagnostic guesswork on unfamiliar systems.
• Dynamic Topology Module Mapping: On supported vehicles, shows the live network topology — which modules are communicating, which are faulted — instead of requiring the tech to navigate system-by-system manually.
• Pre-Scan and Post-Scan Reports: Full vehicle health reports captured before and after repair. Documents all DTCs, module status, and ADAS calibration results. Provides a defensible record for the customer and for your shop if calibration is questioned later.
• Oscilloscope Preset Guides: Built-in waveform guides for common diagnostic tests so technicians spend less time setting up captures and more time interpreting results.

ADAS Calibration Software

• Coverage: Over 100 vehicle brands enabled for ADAS calibration via the software license included in this bundle.
• Systems Supported: Front camera (lane departure, forward collision), radar/ACC, blind-spot monitoring, night vision, around-view monitoring (AVM), and other static and dynamic calibration targets depending on vehicle.
• When It's Required: After any windshield replacement, front-end collision repair, suspension alignment work, or sensor removal/reinstallation that moves a calibrated camera or radar unit. Most insurers and OEMs now require documented recalibration before vehicle release.
• Calibration Types: Static calibration (using targets positioned in front of the vehicle) and dynamic calibration (driven-based procedures) — procedure depends on make and system.
• Documentation: Calibration results captured in post-scan report, giving you a timestamped record tied to the VIN.

What's in the Box

• MaxiSYS MS919 tablet
• MaxiFlash VCMI (5-in-1 communication and measurement interface)
• ADAS software license (activated on the MS919)
• Standard OBD-II connector and vehicle cable set
• Carrying case
• AC power adapter and charging cable
• Note: ADAS calibration targets and frame hardware (CSC frame, MA600 mobile frame, etc.) are sold separately. Contact us to build the complete calibration setup for your bay.

What This Bundle Does Not Include

The ADAS software license enables the calibration procedures on the MS919 tablet. Physical calibration — the part where you position targets in front of the vehicle — requires a compatible target frame and target panels. Autel's CSC frame, IA800, IA900WA, and MA600 mobile frame are the common options. If you don't already have a frame, call us and we'll spec the right one for your shop layout and vehicle mix.

MS919 + ADAS vs. Other Configurations

• MS909 + ADAS vs. MS919 + ADAS: The MS919 adds the VCMI's oscilloscope and measurement functions. If your techs use a scope regularly, the MS919 pays for the step-up. If diagnostics in your shop are primarily code-and-function-based, the MS909 bundle covers the same ADAS software.
• MS919 alone (no ADAS): Full diagnostic coverage, no calibration capability. Right choice if you're sending ADAS work to a dealer or specialty shop and not planning to bring it in-house.
• MaxiSYS Ultra + ADAS: Steps up to Autel's flagship tablet with expanded features and broader scope capability. Higher investment, but appropriate for high-volume shops or those needing the deepest OE-level access.
