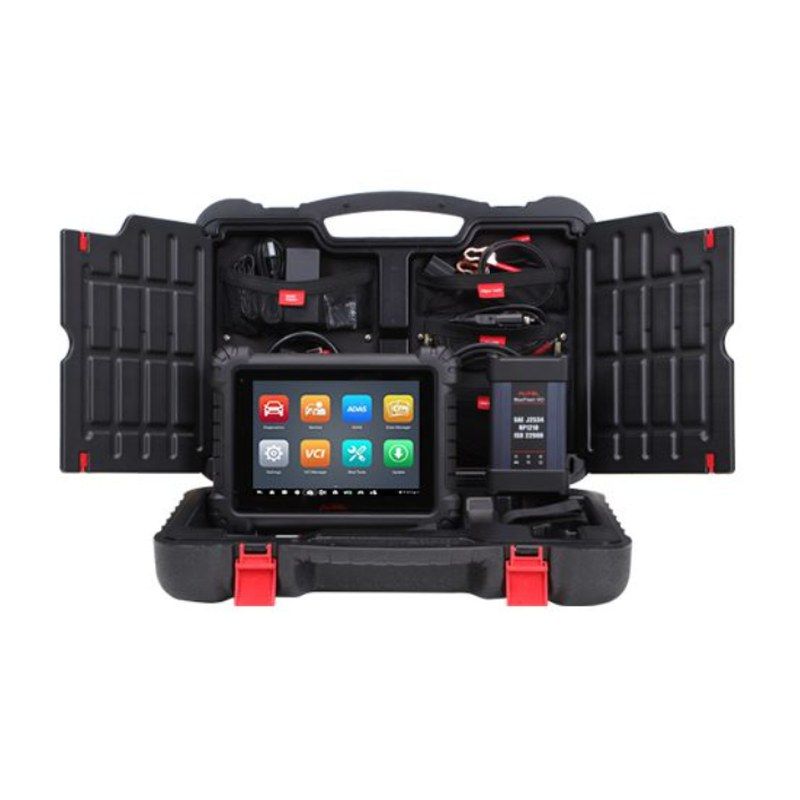

Autel MaxiSYS MS909 + ADAS — Full Diagnostic and Calibration Package

The MS909 + ADAS bundles Autel's MaxiSYS MS909 diagnostic tablet with the ADAS software license, giving you a single tool that handles OBD-II diagnostics, ECU coding and programming, module flashing, and ADAS calibration across more than 80 vehicle brands — from passenger cars to Class 6 medium-duty trucks. If your shop does windshield replacements, front-end repairs, suspension work, or sensor R&R on any modern vehicle, this is the configuration that closes the loop on calibration without adding a separate dedicated unit.

MS909 Tablet — What's Different About This Generation

• Android OS, upgraded processor, expanded memory: Faster boot, faster scan, less waiting between functions.
• MaxiFlash VCI (J2534): The included vehicle communication interface supports module flashing and CAN FD protocols — required for many late-model GM, Ford, Stellantis, and European platforms that have moved to CAN FD.
• Dual Wi-Fi: One radio stays connected to the vehicle network; the other maintains your shop internet connection simultaneously. No toggling, no dropped sessions mid-flash.
• OE-level diagnostics: Full bi-directional controls, active tests, ECU coding, adaptation resets, and programming across 80+ brands including domestic, Asian, and European lines — Alpha Romeo through Tesla, RAM trucks, GM, Hino, Isuzu, Mitsubishi-Fuso, Mercedes-Benz Sprinter, and more up to Class 6 medium-duty.
• Automatic updates: Software and coverage updates push automatically over Wi-Fi with real-time notifications.
• Cloud-based Data Manager: Customer records, vehicle history, scan data, and technician notes stored and accessible from the tablet.
• Interactive Data Logging: Log and submit diagnostic sessions directly to Autel support when you hit a wall on a tough diagnostic bug.

ADAS Software — What It Adds

• ADAS calibration on 80+ vehicle brands: The software license unlocks static and dynamic calibration of forward-facing cameras, radar (adaptive cruise control), night vision systems, around-view monitor (AVM), and blind-spot detection sensors.
• Pre-scan and post-scan reports: Before calibration begins, the system logs all active and stored DTCs plus overall vehicle health. After calibration, a post-scan confirms the procedure completed successfully and documents the result. This paper trail matters for insurance claims, liability, and customer sign-off.
• Calibration trigger awareness: ADAS recalibration is required after windshield replacement, radar or camera R&R, front-end collision repair, and suspension alignment work. The MS909 + ADAS keeps that workflow inside one tool rather than requiring a separate ADAS-only device.

Note: The ADAS software license included here works with compatible Autel calibration frames and targets (CSC frame, IA800, IA900WA, MA600 mobile frame). Frames and targets are sold separately. Contact us at 866-217-0063 to confirm which frame configuration fits your vehicle mix and bay setup.

What's in the Box

• MaxiSYS MS909 tablet
• MaxiFlash VCI (J2534 vehicle communication interface)
• ADAS software license activated on the tablet
• Standard OBD-II cable set and adapters
• Carrying case
• Power supply and charging cable

Exact accessory contents may vary by shipment date. Confirm current kit contents with us before ordering if a specific adapter set is required.

Which Shop Is This For?

• General repair shops moving into ADAS work: You already need a capable scan tool. Adding the ADAS license at purchase is cheaper than buying it separately later, and it means one fewer device to manage.
• Shops doing windshield or glass work: Every modern ADAS vehicle needs a calibration after windshield R&R. The MS909 + ADAS covers that requirement.
• Multi-brand shops (light + medium-duty): The Class 6 coverage and broad OE-level functionality make this viable across a wide vehicle mix without needing a separate commercial vehicle scanner.
• Not the right fit if: You only need ADAS calibration and already have a capable scan tool — the ADAS software license can be added to compatible existing Autel platforms. Call us and we'll sort out the most cost-effective path.

Why Buy From OEM Diagnostic Tools?

• Specialist in professional diagnostic equipment since 2016
• Free shipping on this unit
• Free tech support at 866-217-0063 — we answer questions before and after the sale
• Full Autel manufacturer warranty honored
• Honest guidance on which frame, target, and software configuration fits your shop — we will not oversell you

Call 866-217-0063 for quick answers and help!
