Autel MaxiSYS Ultra S2 with IA900 All-Systems ADAS Calibration and Wheel Alignment

The S2ADAS900 bundles the Autel MaxiSYS Ultra ADAS tablet with the IA900WA All-Systems ADAS calibration and wheel alignment package. The IA900WA (part number IA900AST) is a stationary frame-based ADAS calibration system that combines full four-wheel alignment with comprehensive ADAS target coverage — cameras, radar, LIDAR, night vision, and more. It uses six high-resolution positioning cameras, robotic frame movement, and laser-guided positioning to deliver 0.02-degree alignment accuracy and consistent calibration results across the full range of domestic, Asian, and European vehicles.

The IA900WA Platform

The IA900 is Autel's established full-service ADAS and alignment system. It is a stationary frame designed for shop bay installation and handles the complete alignment and ADAS workflow in a single system:

• Four-wheel alignment capability: Full alignment with camber, caster, toe, and advanced measurements
• Six high-resolution cameras: Automatically monitor vehicle height on the shop lift and track frame positioning throughout the calibration process
• Robotic frame movement: Semi-automated frame positioning improves efficiency and accuracy compared to fully manual systems
• 0.02-degree alignment accuracy: Four wheel clamps with camera targets deliver precision alignment readings
• Illustrated alignment instructions: Step-by-step guided instructions, live readings, required tools, and adjustment locations display on the included 24-inch touchscreen
• US, Asian, and European vehicle coverage

All-Systems ADAS Calibration

The IA900AST package includes targets, patterns, and calibration components for the full range of ADAS system types:

• Lane Departure Warning (LDW): Calibration targets for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, Alfa Romeo, and more
• Around View Monitoring (AVM)
• Blind Spot Detection (BSD)
• Adaptive Cruise Control (ACC)
• LIDAR calibration components
• Night Vision System (NVS) calibration
• Rear Collision Warning (RCW)
• OEM-sourced procedures for alignment with manufacturer specifications

What Is Included in the IA900AST Package

• IA900WA stationary calibration frame
• Four wheel clamps with camera targets
• Steering wheel lock
• Two wheel chocks
• Brake lock
• Distance target
• ULTRAADAS tablet (MaxiSYS) with preloaded Alignment and ADAS software
• 24-inch touchscreen display that attaches to the frame
• All Systems calibration components: LDW targets, AVM mats, BSD targets, ACC targets, LIDAR, NVS
• One-year limited warranty

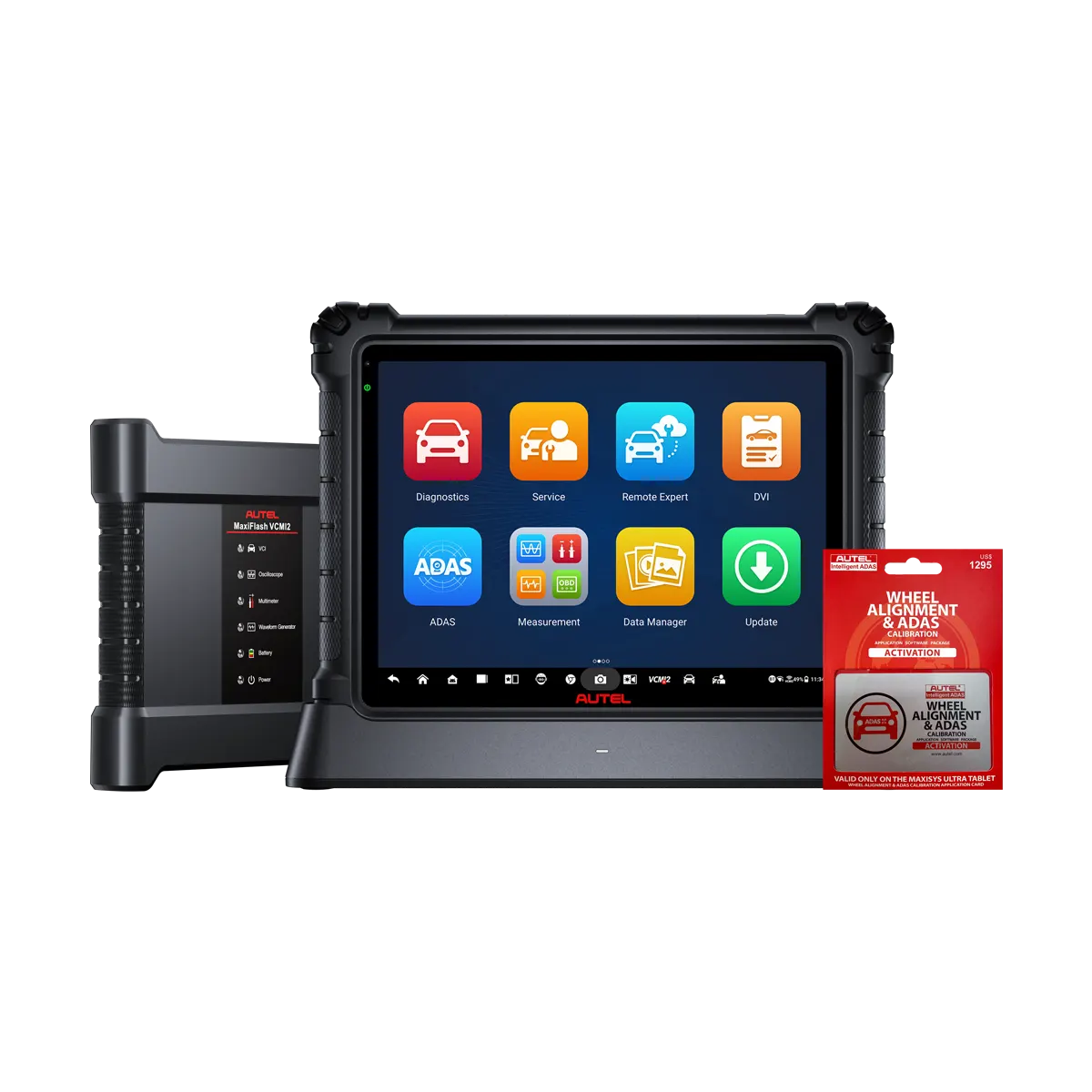

The Ultra ADAS Diagnostic Tablet

The IA900 system is powered by the Autel ULTRAADAS tablet, a version of the MaxiSYS ultra platform configured for ADAS and alignment work:

• Wireless touchscreen operation
• Preloaded Alignment and ADAS Calibration software
• OE-level all-systems vehicle diagnostics for pre- and post-scan documentation
• Coverage for US, Asian, and European vehicles 1996 and newer
• Active tests, special functions, coding, and adaptations
• Casts to and from the included 24-inch touchscreen display

Alignment Is Required Before ADAS Calibration

Eleven of the twenty-eight major North American automakers require ADAS calibration following a wheel alignment, including Ford, Volkswagen, Jeep, Kia, Dodge, and Subaru. Every ADAS calibration should begin with a wheel alignment check — a vehicle with misaligned wheels cannot be calibrated correctly. The IA900WA handles both operations in a single system so shops do not need separate equipment for alignment and ADAS.

Available IA900 Configurations

The IA900 is available in multiple configurations depending on your shop's ADAS scope. This listing covers the All-Systems package with the ULTRAADAS tablet. Other configurations include:

• IA900WA: Frame only — requires separate tablet and activation card
• IA900WAT: Frame + ULTRAADAS tablet
• IA900LDW / IA900LDWT: LDW-only packages (frame with or without tablet)
• IA900AS / IA900AST: All-Systems packages (frame with or without tablet) — this listing

Call 866-217-0063 to confirm which IA900 configuration is right for your shop's calibration volume, vehicle mix, and available space.

Space Requirements

The IA900WA is a stationary shop installation. Tags on this system reference bay sizes from repair bay at 30x16 ft through large at 40x60 ft. Confirm your available bay dimensions before purchasing.

Who Needs This System

• Collision repair centers: Complete pre/post scan documentation and ADAS recalibration in-house
• General repair shops: Bring alignment and ADAS calibration revenue in-house rather than subcontracting
• ADAS calibration centers: High-volume calibration with a proven stationary system
• Dealerships: Full OEM-compliant ADAS and alignment in one system
• Tire and wheel dealers: Post-tire-service alignment and ADAS recalibration capability
