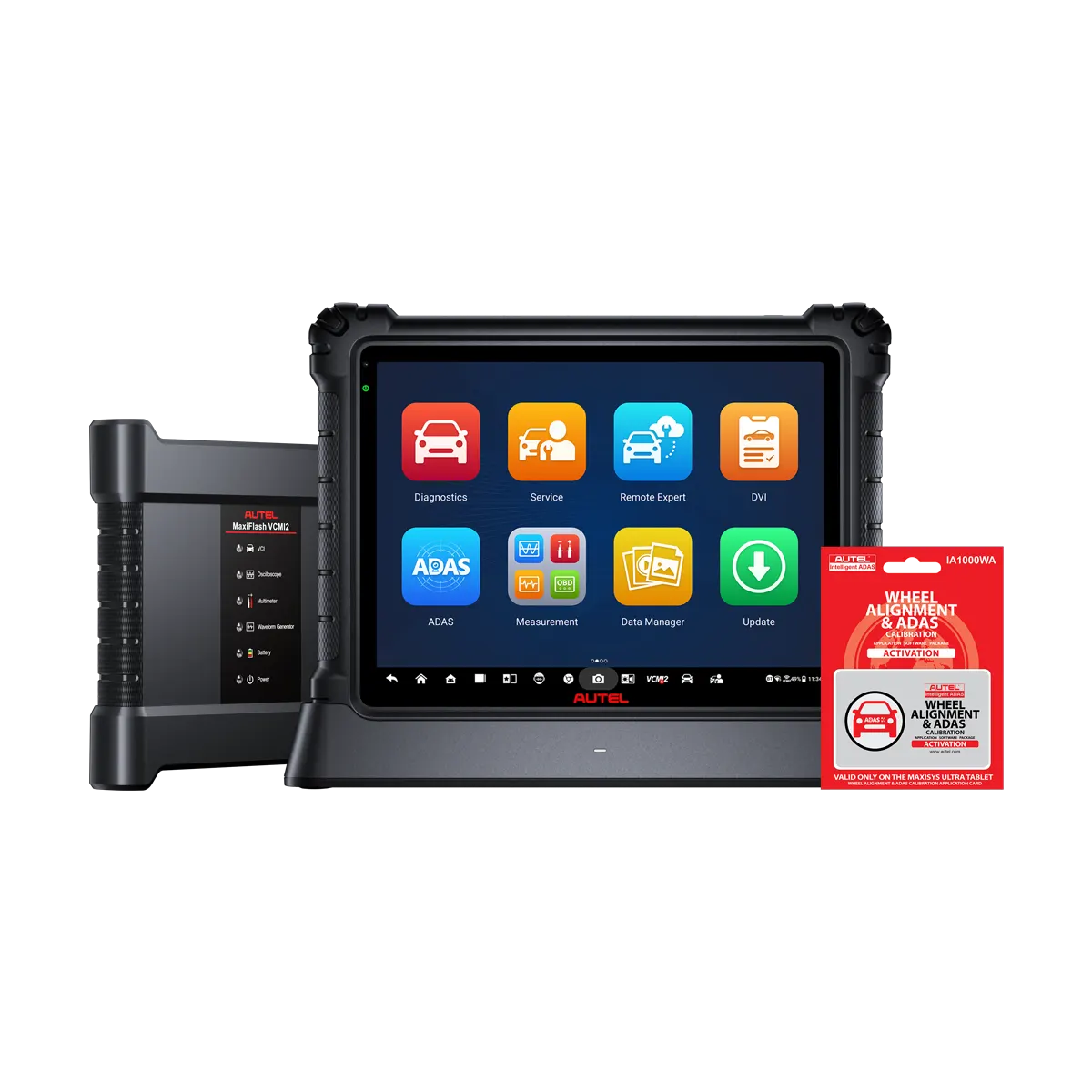

Autel MaxiSYS Ultra S2 with IA1000 ADAS Calibration and Wheel Alignment System

The S2ADAS1000 is a bundle of the Autel MaxiSYS Ultra S2 diagnostic tablet with the IA1000 ADAS calibration and wheel alignment activation software. The IA1000 is Autel's next-generation automated ADAS calibration and wheel alignment platform — a stationary frame system with robotic target positioning, six HD optical cameras, and laser-guided calibration for blind spot, ACC, and AVM patterns. Paired with the Ultra S2 as its diagnostic backbone, this is a complete key-to-key vehicle service system for collision centers, general repair shops, ADAS calibration centers, and dealerships.

The IA1000 System

What separates the IA1000 from earlier Autel ADAS systems is the degree of automation. Rather than requiring a technician to manually measure vehicle distances, square up the frame, and position individual targets by hand, the IA1000 automates most of the setup:

• Robotic 5-way target positioning: The system automatically moves the crossbar forward/back, up/down, left/right, and adjusts pitch, roll, and yaw angles — eliminating the most time-consuming manual steps
• Simply place the frame in the green and hit Next: Position the system within the green tolerance zone, press Next, and IA1000 handles the rest of the positioning
• Six HD cameras: Mounted on the frame, these cameras map the vehicle and frame position in real time, tracking any changes during the calibration process
• Laser-guided floor pattern positioning: For AVM, ACC, NVS, and BSD calibrations that require floor mats or patterns, the IA1000 uses lasers to position and verify placement accurately
• 0.02-degree alignment accuracy: Four precision wheel clamp targets with HD cameras provide industry-grade alignment measurement accuracy
• Unlevel floor compensation: The IA1000 compensates for uneven shop floors — a common cause of failed calibrations — without requiring a perfectly level surface

Wheel Alignment Capability

Every ADAS calibration should start with a wheel alignment inspection. The IA1000 integrates full four-wheel alignment into the same system and workflow:

• Full four-wheel alignment capability: camber, caster, toe, thrust angle, SAI, toe-out on turns, and more
• Advanced alignment data goes beyond basic three-angle specs — diagnose frame alignment, engine cradle alignment, bent parts, and loose parts
• Step-by-step illustrated alignment instructions on screen
• Live readings with required tools and adjustment locations on a single display
• Eleven of twenty-eight major North American automakers now require ADAS calibration after a wheel alignment, including Ford, VW, Jeep, Kia, Dodge, and Subaru

ADAS Coverage

The IA1000 handles both static and dynamic ADAS calibrations across a broad range of vehicle brands and systems:

• LDW (Lane Departure Warning): Coverage for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo
• AVM (Around View Monitoring), Blind Spot, ACC (Adaptive Cruise Control), LIDAR, Night Vision: Coverage across major domestic, Asian, and European brands
• Rear Collision Warning mats: Available for Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, and Mitsubishi
• OEM-sourced calibration procedures ensure alignment with manufacturer specifications and guidelines

Optional Digital Target Monitors

The IA1000 optionally supports digital target display monitors that replace physical printed targets:

• Auto-projected digital targets eliminate manual target selection and swapping
• Self-adjusting screen brightness adapts to shop lighting conditions
• A single digital monitor replaces the storage requirements of multiple physical targets
• OTA updates keep digital target coverage current

The Ultra S2 Diagnostic Tablet

The IA1000 is powered by the Autel MaxiSYS Ultra S2, Autel's flagship diagnostic tablet:

• 13.7-inch touchscreen with 512GB of storage
• 6-in-1 VCMI2 vehicle communication and measurement device: VCI, J2534, 4-channel oscilloscope, multimeter, CAN Bus tester, waveform generator
• OE-level diagnostics with active tests, special functions, coding and adaptations
• Topology 3.0: OE-style system analysis of multi-speed communication protocol networks — visualize every ECU and its communication relationships
• Active Module and Network Analysis — directly ping ECUs to test signal quality and network integrity
• Enhanced PID Analysis and Live Data Fusion
• Coverage for US, Asian, and European vehicles 1996 and newer
• Extensive service menu with collision shop resets

Documentation and Reporting

For insurance and liability documentation, the IA1000 provides comprehensive pre/post scan reports:

• Pre-scan identifies all existing faults and all safety or convenience systems present
• Post-scan confirms faults were repaired and all OEM-required calibrations were performed to OEM specs
• Validated target position reporting documents every step for insurance compliance
• Digital Go-No-Go confirmation prevents advancing when elements are out of spec

IA1000 Packages Available

The IA1000 is available in several configurations depending on your shop's needs. This listing covers the Ultra S2 tablet with IA1000 activation software. Full system packages include:

• IA1000T (P/N IA1000T): Frame + accessories + Ultra S2 + activation card
• IA1000LDWT: Frame + accessories + Ultra S2 + LDW targets + activation
• IA1000AST: Frame + accessories + Ultra S2 + All Systems ADAS equipment + activation
• IA1000ASTDT: Above plus digital target monitors (3 monitors) and activation card

Call 866-217-0063 to confirm which configuration is included in your order and which package fits your shop's work volume and ADAS scope.

Who Needs This System

• Collision repair centers: Pre/post scan documentation, ADAS recalibration after structural repairs and alignments
• General repair shops: Stay in-house on ADAS calibrations rather than subcontracting — retain revenue and reduce job cycle time
• ADAS calibration centers: High-volume calibration business with automated setup to maximize throughput per technician
• Dealerships: Full OEM-level diagnostics and ADAS calibration in a single platform
• Tire and wheel dealers: Alignment plus ADAS calibration as a service offering after tire work
