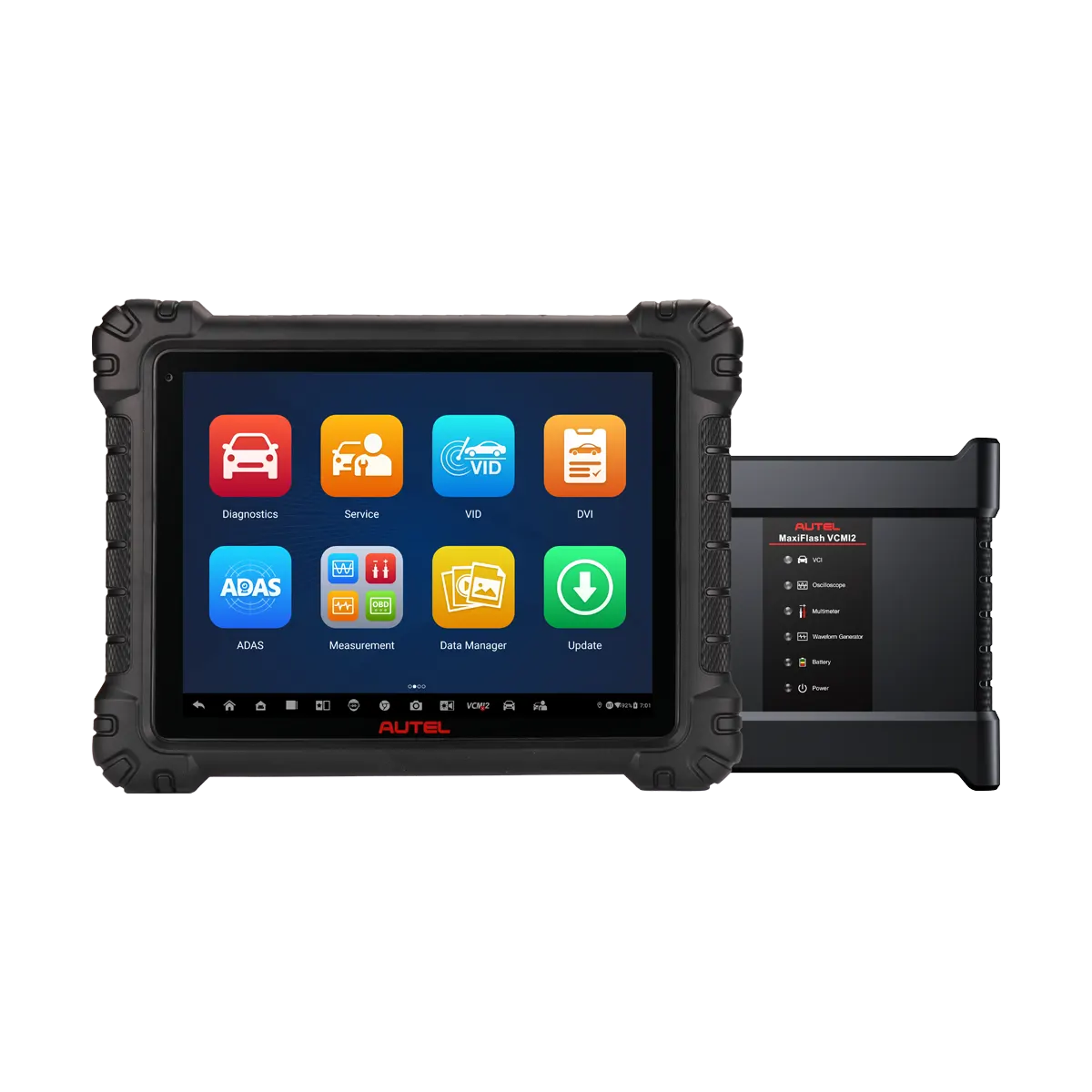

The Autel MaxiSYS MS919 S2 is an 11-inch Android 13 professional diagnostic tablet equipped with the MaxiFLASH VCMI2 — a compact 6-in-1 vehicle communication and measurement unit that combines a VCI, J2534 pass-through programmer, 4-channel oscilloscope, waveform generator, multimeter, CAN bus tester, and standalone Remote Expert box into one device. This is the most capable non-Ultra tablet in the current Autel lineup for shops that need both advanced diagnostics and serious electrical diagnostic capability.

The MaxiFLASH VCMI2 — 6-in-1 Measurement Device

The VCMI2 is the hardware that separates the MS919 S2 from the MS909 S2:

• VCI — wireless vehicle communication with full multi-protocol support
• J2534 pass-through — OEM software module programming and reflashing
• 4-channel oscilloscope — simultaneous four-channel waveform display for ignition, injection, sensor, and actuator diagnostics
• Waveform generator — generate test signals for component and circuit testing
• Multimeter — voltage, resistance, and current measurements
• CAN bus tester — verify network signal integrity and diagnose communication faults
• Standalone Remote Expert box — enables Remote Expert connections independently of the tablet

The split-screen capability of the MS919 S2 lets you display oscilloscope waveforms and live scan data simultaneously on the same 11-inch screen — essential for correlating electrical signals with live PIDs during diagnosis.

Diagnostic Software Capabilities

• Full OE-level system access — all modules, all systems on 1996 and newer U.S., Asian, and European vehicles
• Bi-directional control — actuator tests, component activation, output commands
• Coding and adaptations — module programming, variant coding, OE-level adaptations
• 45+ service reset functions — oil, EPB, SAS, BMS, DPF, IMMO, TPMS, and more with one-tap access
• All 10 OBDII test modes — live data, freeze frame, O2 tests, Mode 6
• Pre- and post-scan reporting — documented scan reports for collision and insurance documentation
• Topology 3.0 dynamic network analysis — ping and monitor individual module communications across multiple networks
• Enhanced PID analysis — Live Data Fusion, Reference Sampling, Parameter Graphing, and Real-time Split-Screen with oscilloscope
• Security gateway access — authorized by Mercedes-Benz, Nissan, VW/Audi, and Stellantis (AutoAuth account required; VW/Audi on-tool token/sub purchase)
• Remote Expert ready — standalone box enables remote connection with OE-level programming experts
• MAX digital vehicle inspection app — multi-point digital inspection workflow
• Hands-free navigation assistant
• MOTOR TruSpeed — one year of free integrated repair data
• Diesel DPF/emissions resets — light and medium-duty diesel

MS909 S2 vs. MS919 S2 — The Clear Difference

Both tablets run identical diagnostic software. The decision comes down to the VCI:

• MS909 S2 — MaxiFLASH VCI2 (VCI + J2534 only). No oscilloscope.
• MS919 S2 — MaxiFLASH VCMI2 (VCI + J2534 + 4-channel scope + multimeter + waveform gen + CAN tester + Remote Expert standalone)

If your technicians regularly use a scope for electrical diagnostics, the MS919 S2 eliminates the separate oscilloscope purchase and keeps everything on one device. The VCMI2 alone, purchased separately as the MSOAK accessory kit complement, would cost close to the price difference. For active diagnostic shops, the MS919 S2 is the smarter buy.

Hardware Specifications

• Operating System: Android 13
• Processor: Octa-core, 2.7 GHz
• Memory: 12GB RAM / 256GB onboard storage
• Display: 11-inch anti-glare screen, 2176 x 1600 resolution
• Battery: 15,000mAh 3.8V; USB-C 45W PD fast charging
• Weight: 1,656.5 g (3.65 lbs)
• Dimensions: 315.4 x 240.3 x 39.0 mm (12.42" x 9.46" x 1.54")
• Connectivity: Wi-Fi 6.0 dual band (802.11 a/b/g/n/ac/ax 2x2 MIMO), Bluetooth 5.2, GPS, 2x USB-A, USB-C, HDMI 2.0, SD card up to 256GB
• Camera: 16MP rear autofocus with flash, 16MP front
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -10 to 60°C (14 to 140°F)

Protocol Support

PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO14230, SAE-J2610 (Chrysler SCI), SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART, BMW DS2, BMW DS1, SAE J2819 (VAG KW81/KW82), SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), ISO 13400 (DoIP), CAN FD

What Is Included

• Autel MaxiSYS MS919 S2 tablet (Android 13)
• MaxiFLASH VCMI2 (6-in-1: VCI, J2534, 4-channel scope, multimeter, waveform gen, CAN tester, Remote Expert box)
• OBD2 cable, 12V/6A DC power adapter, USB-C cable
• Carrying case
• One-year limited warranty
• One year of free software updates via Wi-Fi
• One year of free MOTOR TruSpeed repair data access
