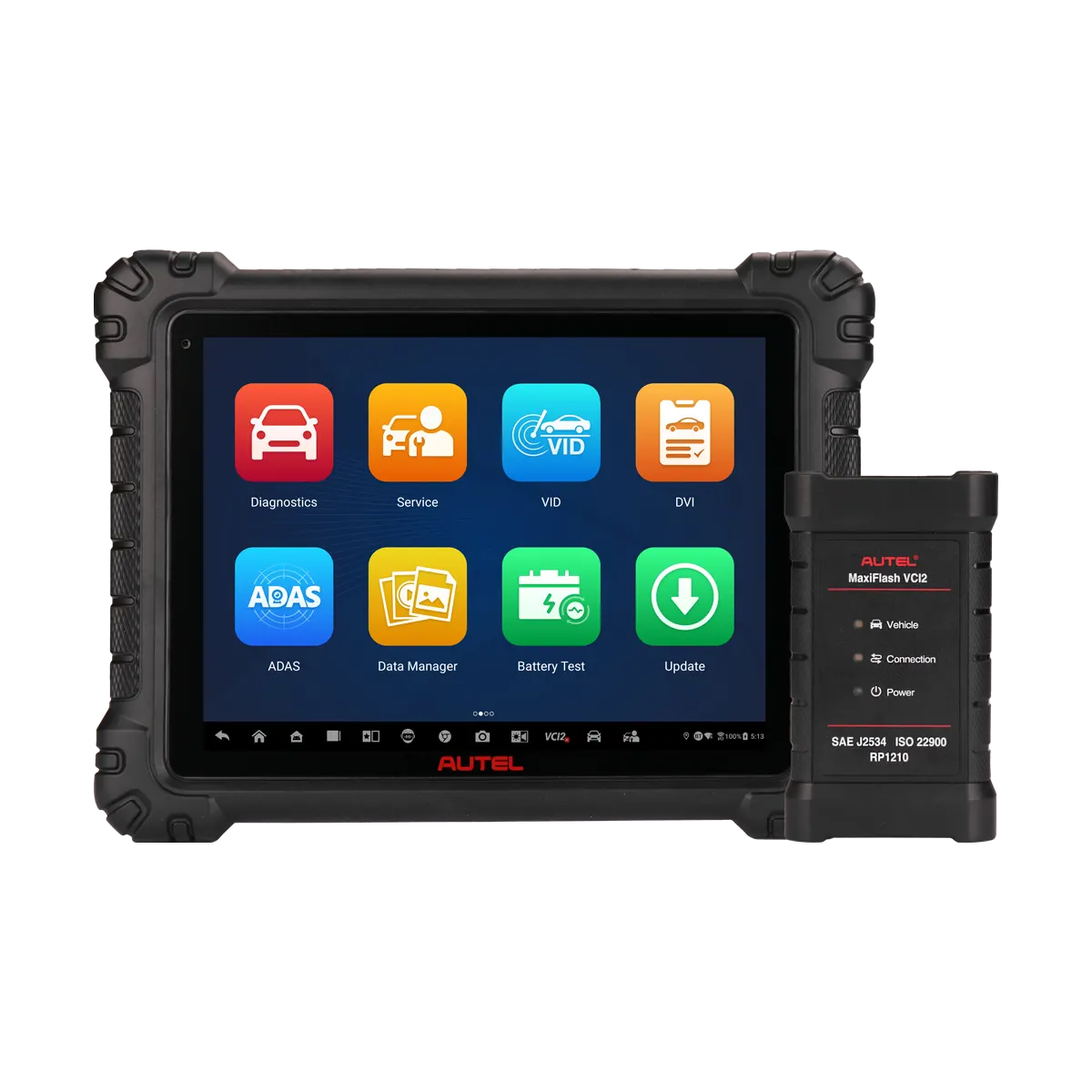

Autel MS909 S2 with ADAS Calibration Software

The MS909 S2 with ADAS Calibration Software (SKU: MS909S2ADAS) is the next-generation MS909 S2 diagnostic tablet with ADAS calibration software pre-activated. This configuration gives collision shops and general repair shops a single platform for full-system diagnostics, pre/post-scan reporting, and guided ADAS recalibration — on one tablet running Android 13 with a 2.7 GHz 8-core processor and the upgraded MaxiFLASH VCI2.

Important: The ADAS software activation enables the calibration procedures on the tablet. Physical ADAS calibrations still require a compatible target frame system (Autel IA700, IA900, IA900WA, or MA600). The frame and target kits are sold separately or available in bundled packages — contact us for options.

Who Needs This Configuration

The MS909S2ADAS is the right choice when:

• You own or are purchasing an Autel ADAS frame separately and need the tablet with calibration software ready to go
• You are a collision shop that needs one tablet for pre/post-scan documentation AND ADAS recalibration
• You are upgrading from an older Autel tablet and want the latest MS909 generation with ADAS capability
• You want the MS909 S2 diagnostic platform but need ADAS software included in the purchase

If you want everything — frame, targets, and tablet — in one bundle, ask us about complete ADAS system packages.

Full Diagnostic Capabilities (MS909 S2 Platform)

• Full OE-level system access — all modules, all systems on 1996 and newer U.S., Asian, and European vehicles
• Bi-directional control — actuator tests, component activation
• Coding and adaptations — module programming, variant coding, OE-level adaptation functions
• 45+ service reset functions — oil, EPB, SAS, BMS, DPF, IMMO, TPMS, and more
• All 10 OBDII test modes — live data, freeze frame, Mode 6
• Pre- and post-scan reporting — documented scan reports for insurance and customer records
• Topology 3.0 dynamic network analysis — monitor individual module communications across multiple networks
• Enhanced Live Data — Live Data Fusion, Reference Sampling, Parameter Graphing
• Security gateway access — Mercedes-Benz, Nissan, VW/Audi, Stellantis authorized (AutoAuth account required)
• Remote Expert ready — connect with remote programming experts
• MAX digital inspection app and hands-free navigation assistant built in
• MOTOR TruSpeed — one year of free integrated repair data access

ADAS Calibration Capability

With calibration software activated, the MS909S2ADAS supports guided ADAS recalibration for:

• Forward camera systems (LDW, FCW, AEB)
• Radar-based ACC systems
• Blind spot monitoring
• Rear camera systems
• 360-degree surround view systems (where applicable)

Compatible with Autel IA700, IA900, IA900WA, and MA600 frame systems.

Hardware Specifications

• OS: Android 13
• Processor: Octa-core, 2.7 GHz
• Memory: 12GB RAM / 256GB storage
• Display: 11" anti-glare, 2176 x 1600
• Battery: 15,000mAh, USB-C 45W PD fast charging supported
• Weight: 1,656.5 g (3.65 lbs)
• Dimensions: 315.4 x 240.3 x 39.0 mm
• Connectivity: Wi-Fi 6.0 dual band, Bluetooth 5.2, GPS, 2x USB-A, USB-C, HDMI 2.0
• VCI: MaxiFLASH VCI2 with J2534 and CAN FD
