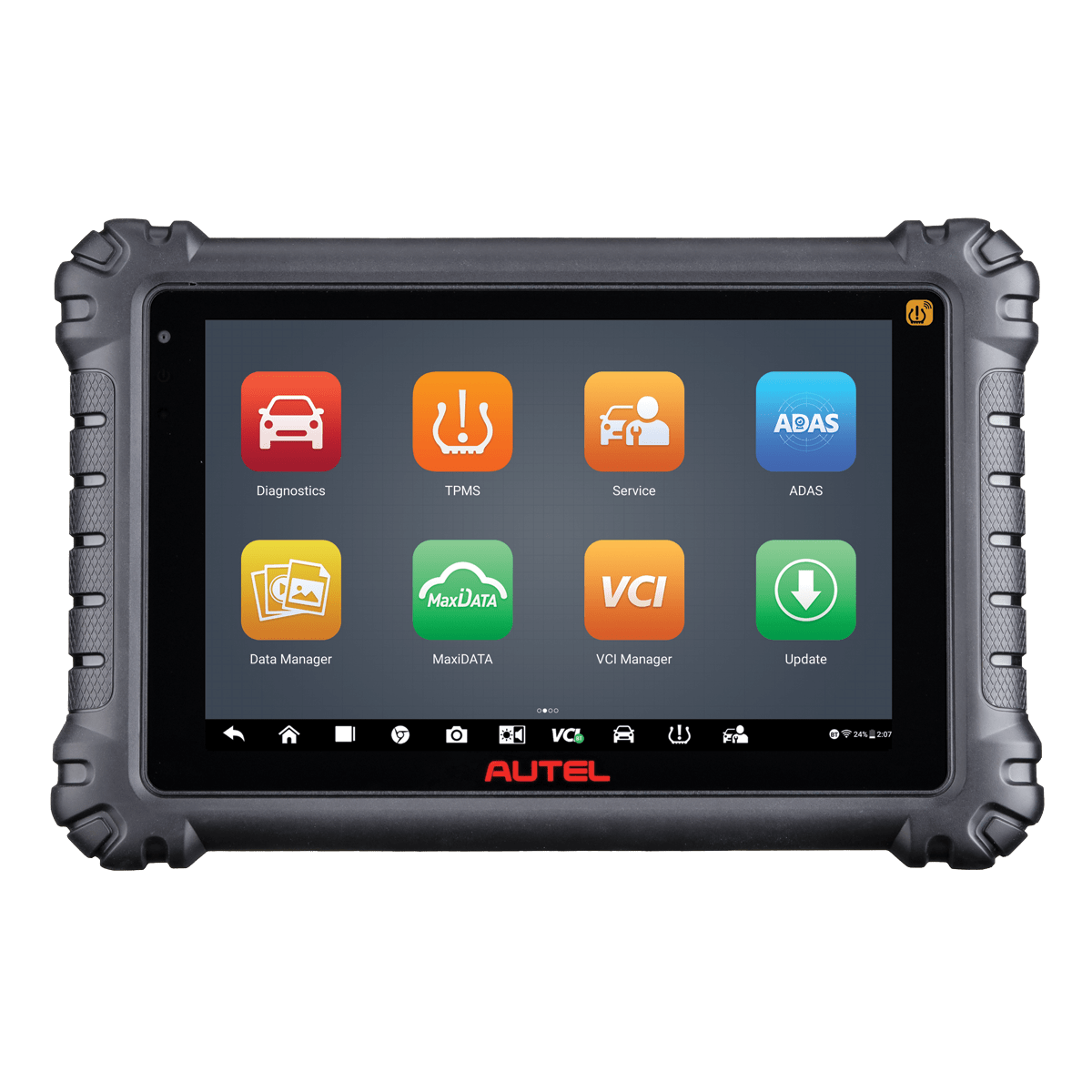

What Is the Autel MS906PRO-TS and What Does It Do?

The Autel MaxiSYS MS906PRO-TS is the first-generation version of Autel's MS906 Pro-TS line. It shares the same core diagnostic and TPMS architecture as the current MS906PRO2-TS — same 8-inch screen, same octa-core processor, same 128 GB storage, same MaxiVCI V200, same integrated TPMS antenna — but runs Android 7.0 instead of the Android 10 found on the second-generation PRO2-TS.

At ,995, this unit is priced below the PRO2-TS (,499). The core diagnostic and TPMS capabilities are the same. The meaningful differences are the older Android version and earlier software platform.

Important Generation Note

The MS906PRO-TS (this unit) is the first generation. The MS906PRO2-TS is the current generation with Android 10. If long-term software update support is a priority, the PRO2-TS is the better investment. If the price difference matters and integrated TPMS is your primary need, this unit delivers that core workflow.

Hardware Specifications

• Display: 8.0-inch TFT-LED capacitive touchscreen, 1920 x 1200 resolution
• Processor: Octa-core (2.2 GHz + 1.8 GHz)
• RAM: 4 GB
• Storage: 128 GB internal
• Operating System: Android 7.0
• Battery: 11,600 mAh lithium-polymer
• Cameras: 16MP rear with flashlight, 16MP front
• Dimensions: 260mm x 170mm x 30mm
• Weight: 0.962 kg (2.12 lb)
• Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth V2.1+EDR Class 1, USB 2.0, USB-C, HDMI, SD card slot

Diagnostic Capabilities

Coverage: US, Asian, European vehicles 1996+. All 10 OBDII test modes.

• All-Systems Diagnostics: Read/erase codes, live data, freeze frame across all modules
• Bi-Directional Active Tests: Actuator commands, output tests
• Special and Hidden Functions: OEM-level access
• Coding and Adaptations: Module coding, variant coding, adaptations
• AutoScan 2.0: Full-vehicle scan with ADAS component identification
• Pre/Post Scan Reporting: Email, print, or cloud

40+ Service Resets

• Oil service reset
• DPF regeneration
• Steering angle sensor (SAS) calibration
• Airbag (SRS) reset
• Occupancy seat sensor reset
• Electronic parking brake / brake bleed
• Battery registration / BMS reset
• Throttle relearn, transmission adaptations, and more

Authorized SGW Access

AutoAuth account covers: Mercedes-Benz, Nissan, Audi/VW, Stellantis (Dodge, Chrysler, Ram, Jeep, Fiat, Maserati, Alfa Romeo).

Integrated TPMS

Embedded antenna: 315/433 MHz + 2.4 GHz BLE (Tesla support). Full TPMS workflow: sensor activation, relearn, 1-Sensor programming (99.7% coverage), TPMS fault diagnostics.

PRO-TS vs PRO2-TS

• MS906PRO-TS (this unit): Android 7.0, first-generation platform, ,995
• MS906PRO2-TS (current): Android 10, updated software, ,499

Call us and we will tell you honestly which makes more sense for your situation.

Software and Warranty

• 1 year free software updates via Wi-Fi
• 1 year limited warranty

Why Buy the Autel MaxiSYS MS906PRO-TS From Autel Diagnostic Tools?

Specialist in professional diagnostic equipment since 2016. We know Autel product generations and won't steer you into the wrong unit.

• Free shipping on all orders
• Free technical support at 866-217-0063
• Full warranty on every unit
• Honest guidance on PRO-TS vs PRO2-TS for your shop
