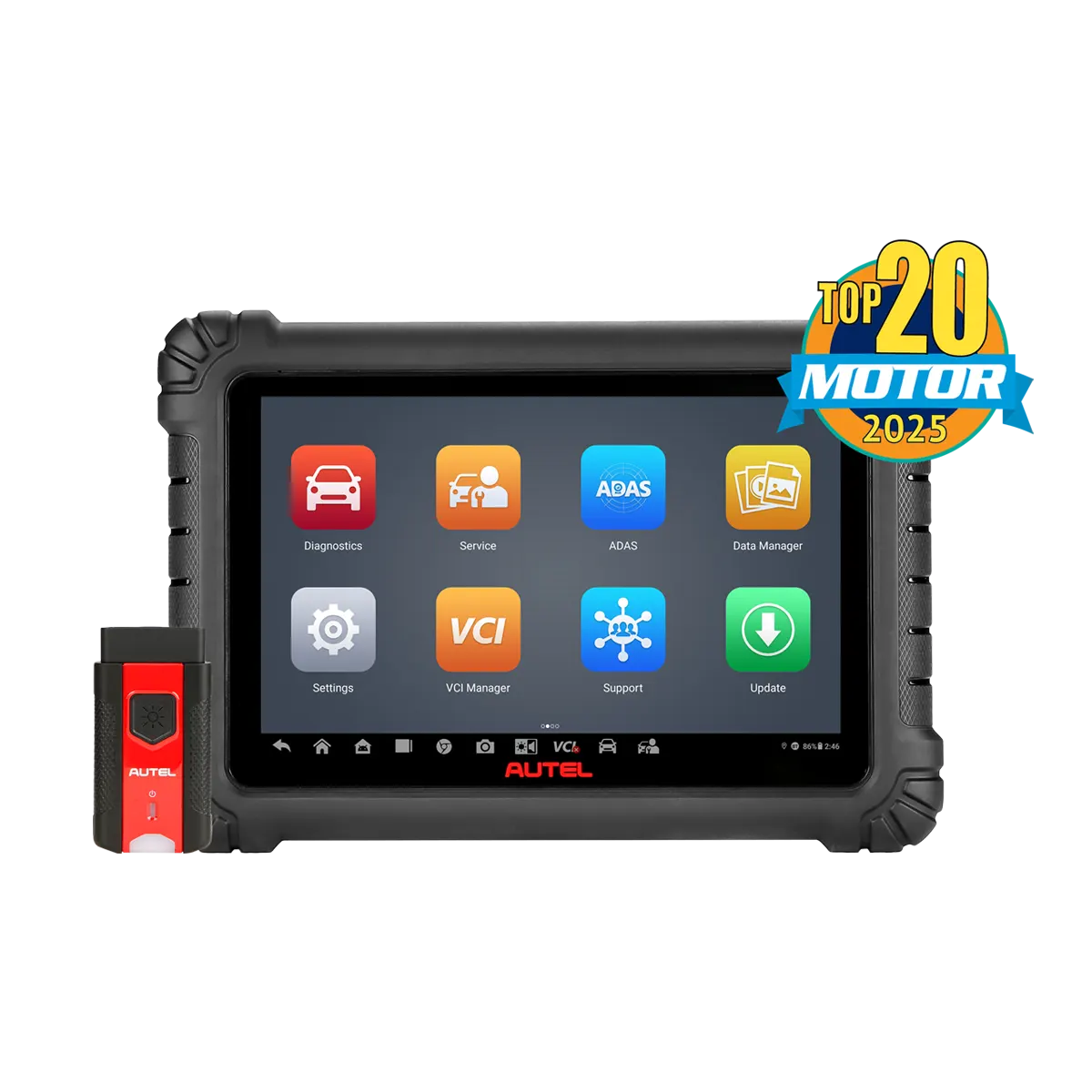

Autel MaxiSYS MS906 MAX — Professional 10.1-Inch Wireless Diagnostic Tablet with Bluetooth VCI

The Autel MaxiSYS MS906 MAX is a 10.1-inch Android 10 professional diagnostic tablet with an octa-core processor, 128GB of storage, and Bluetooth VCI for wireless vehicle communication. At $1,595, it is Autel's mid-tier MaxiSYS professional tablet — a serious step up from the MD808P and MD909 PRO, and a strong performer for shops that need bi-directional testing, coding, adaptations, and a full service menu without moving to the MaxiSYS MS909 or Ultra tier.

Who This Tool Is For

The MS906 MAX targets professional repair shops doing all-systems diagnostics across domestic, Asian, and European vehicle lines — shops that need to do more than pull codes. The bi-directional Active Tests let you command actuators directly to isolate faults. The 40-plus service menu covers the reset and maintenance work that fills a shop's weekly schedule. And the 10.1-inch display gives you room to work with live data graphs without squinting at a 5-inch screen.

If you are doing pre- and post-scan work, coding ECUs on European vehicles, or running battery and charging system tests, this tablet handles it. If you also need TPMS service, the MS906 MAX is the tool to add the ADAS upgrade kit to — Autel's ADAS upgrade is compatible with this platform.

What Diagnostic Functions Does the MS906 MAX Include?

• U.S., Asian, and European vehicle coverage — 1996 and newer passenger and light-duty vehicles
• Pre- and Post-Scan reporting — document vehicle condition before and after repair for liability and customer communication
• All-systems code reading and clearing — access every module, not just the powertrain
• Live data viewing and graphing — display, graph, and analyze sensor readings in real time
• Freeze frame data — review conditions at the time any DTC was set
• All 10 OBDII test modes with enhanced Mode 6

Bi-Directional Control and Advanced Functions

• Active Tests — command actuators, solenoids, and components to test operation without guessing
• Special Functions — access vehicle-specific hidden functions and service procedures
• Coding and Adaptations — perform module coding and variant coding on supported vehicles; essential for European vehicle work on Audi, BMW, Mercedes-Benz, VW, and others

Service and Maintenance Menu (40+ Functions)

The MS906 MAX includes a direct-to-system service menu with over 40 vehicle-specific maintenance and reset tasks, including:

• Oil Light Reset
• DPF Regeneration (diesel particulate filter forced regen)
• Steering Angle Sensor Reset
• Airbag Reset
• Occupancy Seat Reset
• Brake Bleed
• EPB (Electronic Parking Brake) retract and release
• Plus additional vehicle-specific reset and calibration procedures

Bluetooth VCI — MaxiVCI V200

The MS906 MAX ships with the Bluetooth-enabled MaxiVCI V200, which supports both standard and advanced vehicle communication protocols:

• PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 GMLAN, ISO-11898-2, ISO-11898-3, SAE-J2819 TP20, TP16, ISO-9141, ISO-14230, SAE-J2610 Chrysler SCI, UART Echo Byte, SAE-J2809 Honda Diag-H, SAE-J2740 GM ALDL, SAE-J1567 CCD BUS, Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 VAG KW81, KW82, SAE J1708, SAE-J1850 PWM, SAE-J1850 VPW, ISO13400, CAN FD

Report Management

• Email and text-based report sharing — send customizable diagnostic reports to customers or your shop management system
• Reports can be printed wirelessly or stored on-tool

Optional Add-Ons (Purchased Separately)

• Battery, starter, and charging system testing — requires MaxiBAS software purchase
• Videoscope use — compatible with Autel videoscope accessories
• ADAS calibration — compatible with Autel ADAS upgrade and frame kit

What Are the Autel MS906 MAX Hardware Specs?

• Operating System: Android 10
• Processor: Octa-core
• Memory: 4 GB RAM, 128 GB on-board storage
• Display: 10.1-inch LCD capacitive touchscreen, 1920x1200 resolution
• Rear Camera: 13 megapixel
• Connectivity: Wi-Fi 802.11 a/b/g/n/ac; Bluetooth 5.0 (BR/EDR + BLE); GPS; USB 2.0 (two Type A, one Mini USB); SD card up to 256 GB
• Battery: 11,600 mAh at 3.85V lithium-polymer; charges via 12V DC (12V/3A adapter)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Dimensions (W x H x D): 311.1mm x 216.0mm x 39.9mm (12.25 in x 8.50 in x 1.57 in)
• Weight: 1.71 kg / 3.77 lbs.
• Sensors: Gravity Accelerometer; Ambient Light Sensor
• Audio: Microphone; dual speakers; 3.5mm headset jack

Warranty and Software Updates

• One-year free software updates
• One-year limited warranty
• TCP Total Care Program (SKU MS906MAX1YR, $595.00) available for extended software update coverage after year one

How Does the MS906 MAX Compare to Other Autel Tablets?

The MS906 MAX sits above the MD-series code readers and below the MaxiSYS MS909 and Ultra tiers. It gives you a larger screen than the 8-inch MS906 Pro platform, 128GB of storage, and the same bi-directional and coding capability. If you need TPMS diagnostics and sensor programming integrated into the same tool, look at the MS906PRO2-TS instead. If you need network topology mapping, oscilloscope, or split-screen diagnostics, the MS909 or Ultra is the right step up.
