Autel MaxiSys IA1000 All-Systems Calibration System with MS Ultra S2 (AULIA1000AST)

The AULIA1000AST is Autel's all-systems ADAS calibration package built around the IA1000 frame platform — it includes the calibration frame, the MaxiSYS Ultra S2 tablet, all-systems ADAS equipment, and LDW targets. What it does not include is the digital target monitor upgrade (that's the ASTDT variant). At $64,999.99, the AST gives a shop complete ADAS calibration coverage across camera, radar, lidar, and night vision systems using physical calibration targets. If you're running a shop that handles a broad mix of ADAS work and wants the full capability of the IA1000 platform without paying the premium for the three digital display monitors, this is the configuration to evaluate.

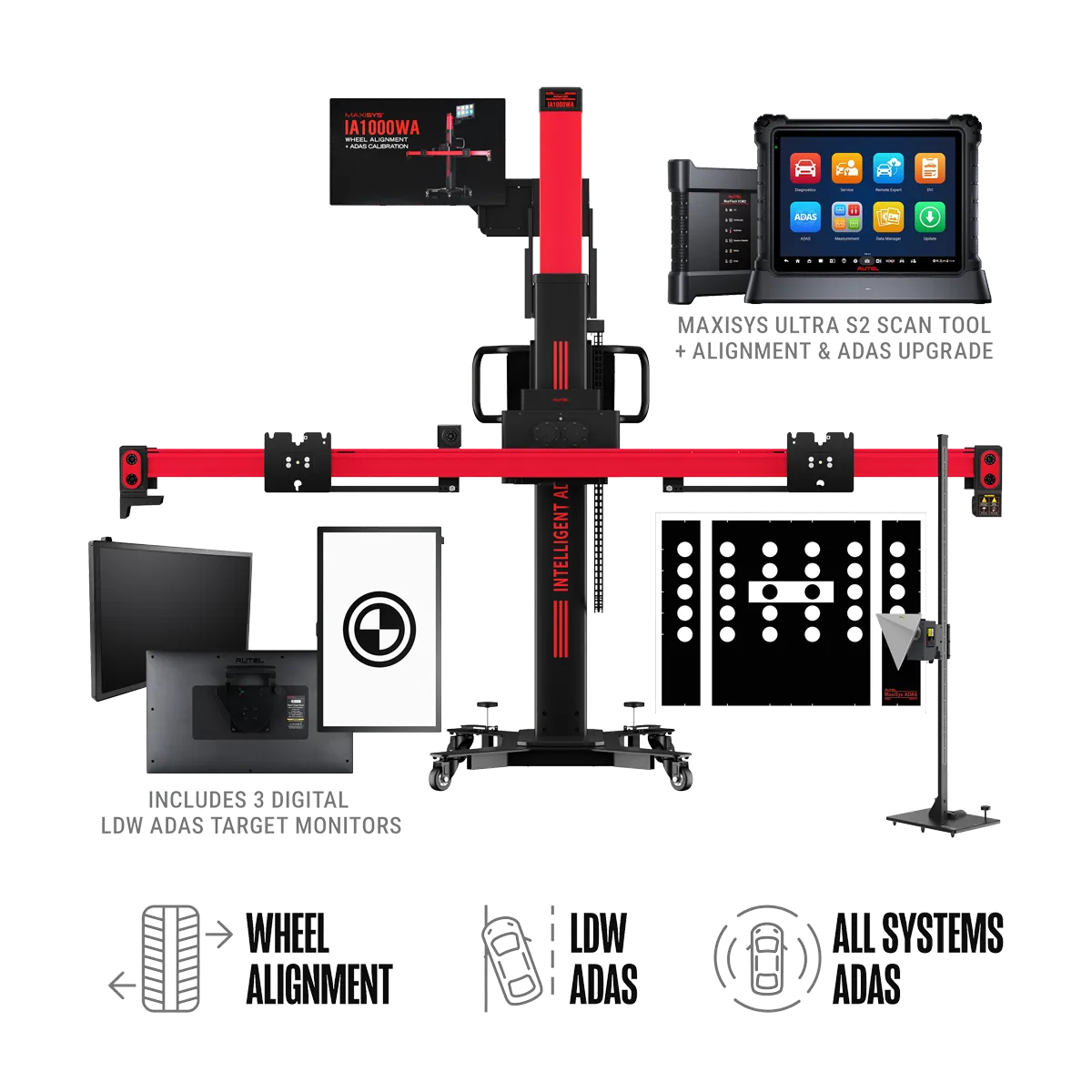

What's Included

• IA1000 Calibration Frame (AUTEL-CSC1000) — the robotic frame with 6 HD cameras, automated crossbar positioning, and laser-guided target placement
• MaxiSYS Ultra S2 Tablet — Autel's flagship diagnostic tablet with Topology 3.0
• IA1000 Activation Card — required to activate the calibration frame software
• LDW (Lane Departure Warning) Targets — physical targets for lane departure calibration procedures
• All Systems Calibration Equipment — physical target boards and hardware covering camera, radar, lidar, and night vision ADAS systems

What is NOT included: the three digital display monitors that come with the ASTDT variant. Those monitors auto-project calibration patterns and eliminate manual target selection. The AST uses physical target boards instead. This distinction matters and is covered in detail below.

IA1000 Platform — Key Capabilities

Automated ADAS Targeting and Advanced Wheel Alignment

• 6 high-definition cameras (3072 x 2048 pixels each) combined with precision wheel clamp targets deliver 0.02° accuracy — the tightest tolerance in this class of calibration equipment
• 5-way robotic, automated forward-facing target placement — the crossbar positions itself to the correct height and distance automatically rather than relying on manual frame adjustment
• Laser-guided positioning for Blind Spot, ACC, and AVM pattern placement — the system guides target positioning for radar and camera calibrations
• Full OEM-spec alignment measurement capability before ADAS calibration — the frame measures camber, caster, toe, and additional alignment parameters as part of the pre-calibration workflow

Target Validation and OEM-Compliant Reporting

• Digital Go-No-Go confirmation — the system will not advance if target placement is outside of spec. This is a hard stop, not an advisory warning. It prevents calibrations from proceeding on incorrectly positioned setups.
• Validated target position data is documented in Pre/Post Scan reports — insurance-ready documentation showing calibration was performed to OEM specifications with confirmed target placement
• OEM-sourced calibration procedures throughout — these are not generic aftermarket procedures adapted from service manual data
• Automated unlevel floor compensation — calibrations can be performed on non-perfectly-level shop floors without generating failed results

Diagnostics Integration

• Powered by the MaxiSYS Ultra S2 — full system scan capability including read/erase codes across all modules, live data streams, and bi-directional tests integrated into the same workflow as the ADAS calibration
• Topology 3.0 network mapping — visualizes the vehicle's complete module network so you can see which systems are communicating and which are throwing faults before you start calibration
• Coverage for U.S., Asian, and European vehicles — the Ultra S2 has industry-leading breadth across all three markets
• OTA (over-the-air) software updates — continuous access to the latest OEM-sourced calibration procedures and diagnostic coverage without manual update cycles

Frame Design and Build

• Robotic crossbar sets vertical calibration position automatically — no manual height adjustment with a tape measure
• Frame folded dimensions: 800 x 1000 x 1900 mm — fits through a standard bay door and stores against a wall
• Power: 360W, 100–264V, 50/60 Hz — standard shop power, no special electrical requirements
• Height range: 1670–2770 mm — handles the full range from low sedans through full-size trucks and SUVs
• Crossbar height range: 300–2500 mm — covers the placement requirements for sensors at bumper level through windshield-mounted cameras

Physical vs. Digital Targets — Understanding the Trade-Off

This is the most important distinction between the AST and the ASTDT, and it's worth understanding before you decide which configuration fits your shop.

The AST uses physical calibration target boards. These are precision-printed boards that are mounted to the IA1000 frame in the correct position as determined by the system's cameras and laser guidance. The technician selects the correct target for the vehicle and calibration type, mounts it to the frame, and the system validates that it is correctly positioned before proceeding.

The ASTDT adds three digital target monitors. These are display screens mounted to the frame that auto-project the correct calibration pattern for the selected vehicle and procedure. Instead of selecting and mounting a physical board, the system selects the correct pattern electronically and displays it. The advantages are faster target selection, no physical boards to manage, and less opportunity for technician error in selecting the wrong target.

What this means practically:

• Physical targets (AST) work correctly — every OEM calibration procedure that the IA1000 supports can be completed with physical targets. The digital monitors are a speed and convenience upgrade, not a capability upgrade.
• Physical target workflows take slightly longer — selecting the right board from a target library, mounting it, and confirming placement adds steps compared to an auto-projected pattern. In a high-volume ADAS shop doing multiple calibrations per day, this adds up.
• Physical targets require storage and organization — you'll have a library of target boards to manage, label, and store. Digital monitors eliminate this entirely.
• The price difference reflects the monitors — the AST is $64,999.99 versus the ASTDT at approximately $71,557. That spread represents the cost of three precision digital display monitors and their activation. If you're doing 1-2 ADAS calibrations per day, the time savings may not justify that premium. If you're running a dedicated ADAS center doing 5+ per day, the digital targets pay for themselves in throughput.

Understanding the IA1000 Package Lineup

The AST sits at the top of the lineup for all-systems coverage with physical targets. The ASTDT is the same package with digital monitors added. Every other configuration below the AST either omits the tablet, limits coverage to specific ADAS systems, or omits the all-systems equipment.

Who This System Is For

The AULIA1000AST makes sense for shops that meet the following profile:

• Collision repair shops handling post-repair ADAS calibration across a broad vehicle mix — domestic, Asian, and European vehicles with camera, radar, and lidar systems
• Independent repair shops that have made or are making ADAS calibration a core service offering and need complete coverage rather than system-specific equipment
• Dealerships servicing a diverse vehicle lineup that includes multiple ADAS system types and need OEM-spec calibration documentation for warranty and liability purposes
• Fleet service centers maintaining late-model commercial vehicles with lane departure, adaptive cruise, blind spot, and automatic emergency braking systems
• Shops that already have a workflow built around physical targets — technicians comfortable with target libraries and board-based calibration workflows won't see the digital monitor upgrade as essential
• Shops where $6,000-$7,000 in capital savings matters — the difference between AST and ASTDT is real money that could fund other equipment or working capital

This system is probably not the right fit if: you're doing only LDW calibrations on a narrow vehicle mix (the TDT variant covers that at lower cost), or if you've already decided you want maximum throughput and the digital target workflow (buy the ASTDT).

When to Step Up to the ASTDT — When the AST Is Enough

The AST is enough when:

• You're doing fewer than 3-4 ADAS calibrations per day — at that volume, the time saved by digital targets doesn't generate enough additional revenue to cover the premium quickly
• Your technicians are methodical and process-driven — shops with disciplined target management workflows don't suffer the disorganization problems that make digital targets attractive
• You want all-systems coverage at the best price — the AST gives you 100% of the calibration capability of the ASTDT; you're only trading speed of target selection

Step up to the ASTDT when:

• You're running a dedicated ADAS calibration center doing 5+ calibrations per day — the throughput advantage of digital targets compounds daily and the premium pays back in months
• You want to minimize technician error in target selection — the auto-projection of correct patterns eliminates the possibility of a tech mounting the wrong board
• Your shop is training new ADAS technicians — digital targets reduce the learning curve because the system selects and displays the correct pattern automatically
• You're doing complex multi-system calibrations where multiple targets need to be swapped during a single vehicle workflow — digital monitors make this dramatically faster

Technical Specifications

Note: Detailed specification sheets including full target board inventory and vehicle coverage lists are available on request. Contact us at 866-217-0063 for the current spec sheet.

Frequently Asked Questions

Does the AST cover the same vehicles as the ASTDT?

Yes. The ASTDT's digital monitors are a workflow upgrade, not a coverage upgrade. Both configurations use the same IA1000 frame platform with the same OEM-sourced calibration procedures. The vehicle and system coverage is identical between AST and ASTDT.

Can I add the digital target monitors to the AST later?

Contact us at 866-217-0063 to ask about upgrade paths. Autel's product lineup does change, and whether a field upgrade from AST to ASTDT is available and what it costs is something we can get a current answer on for you.

What ADAS systems does "all-systems" actually mean?

All-systems coverage on the IA1000 platform includes: forward-facing cameras (lane departure, automatic emergency braking, traffic sign recognition), radar systems (adaptive cruise control, blind spot monitoring, rear cross-traffic alert), lidar sensors, and night vision camera systems. It does not include every possible OEM-proprietary sensor variant — contact us with specific vehicle and sensor questions if you need to confirm coverage before purchasing.

Does this replace a wheel alignment rack?

No. The IA1000 provides OEM-spec alignment measurement as part of the pre-ADAS calibration workflow, which is required for accurate ADAS calibration. It does not replace a four-post alignment lift for performing alignment corrections. Most shops use the IA1000 alongside their existing alignment equipment — the IA1000 measures and documents alignment before and after calibration, while the alignment rack performs the physical corrections if needed.

What's the installation and training process?

Autel and OEM Diagnostic Tools support the installation and training process. Contact us at 866-217-0063 before purchasing to discuss your bay layout, floor levelness, and technician training plan. These are not plug-and-play purchases — a proper deployment conversation before buying makes a significant difference in time-to-productive use.

Why Buy From OEM Diagnostic Tools?

OEM Diagnostic Tools has specialized in Autel ADAS calibration systems since 2016. We carry the complete IA1000 lineup and have helped shops across the country select the configuration that matches their actual ADAS work volume and bay capacity — not the configuration with the highest margin for us. If the AST is the right fit, we'll tell you. If your volume justifies the ASTDT, we'll tell you that too. Free shipping on all IA1000 systems, free pre-sale and post-sale technical support at 866-217-0063, full Autel manufacturer warranty, and honest guidance on capital equipment decisions that will affect your shop for the next several years. A $64,999.99 purchase deserves a real conversation, not a checkout button.
