Autel MA600 Mobile ADAS Calibration System with MS909 Tablet — LDW Coverage for 11 Brands

The MA600 Mobile Frame ADAS LDW package is built for shops that need a portable, floor-space-efficient solution for Lane Departure Warning calibration across a broad range of Asian and European makes. This system pairs the Autel MaxiSYS MS909 diagnostic tablet with the MA600 foldable calibration frame, a full set of LDW targets, and the ADAS software upgrade — everything required to perform static LDW calibrations on vehicles from Alfa Romeo, Honda/Acura, Hyundai/Kia, Mazda, Mercedes-Benz, Mitsubishi, Nissan/Infiniti, Subaru, Toyota/Lexus, and Volkswagen/Audi/Porsche.

If your shop sees a high volume of windshield replacements, front-end repairs, or suspension work on these platforms, this is the system that eliminates the referral to a dealer or specialty ADAS shop. The MA600 frame folds flat for storage and transport, making it practical for shops without dedicated alignment bays.

What This System Does

Lane Departure Warning calibration is required any time the forward-facing camera is disturbed — windshield swap, camera replacement, bracket adjustment, or front-end collision repair. Without a proper static calibration using the correct target pattern, the LDW system will not function accurately, and the vehicle will fail any post-repair verification. This system handles that calibration workflow for the included makes and generations.

Included Targets and Part Numbers

Every target in the box corresponds to a specific make, model generation, and camera type. The complete set included:

• Alfa Romeo LDW I — CSC0601/10
• Honda / Acura LDW I — CSC0601/05
• Honda / Acura LDW II (Left) — CSC0601/08-L
• Honda / Acura LDW II (Right) — CSC0601/08-R
• Honda / Acura LDW II — CSC0601/24-01
• Hyundai / Kia LDW — CSC0601/09
• Hyundai / Kia LDW II — CSC0601/07
• Hyundai / Kia LDW III — CSC701/23
• Mazda LDW I — CSC0601/12
• Mazda LDW II (Left) — CSC0601/13-L
• Mazda LDW II (Right) — CSC0601/13-R
• Mercedes LDW I — CSC0601/02
• Mercedes LDW II — CSC0601/19
• Mitsubishi LDW I (Left) — CSC0601/22-L
• Mitsubishi LDW I (Right) — CSC0601/22-R
• Nissan LDW II (Left) — CSC0601/03-L
• Nissan LDW II (Right) — CSC0601/03-R
• Nissan LDW III (Left) — CSC0601/04-L
• Nissan LDW III (Right) — CSC0601/04-R
• Nissan / Infiniti LDW I (Left) — CSC0601/06-L
• Nissan / Infiniti LDW I (Right) — CSC0601/06-R
• Subaru LDW I — CSC0601/14
• Subaru LDW II — CSC601/17
• Toyota LDW II — CSC0601/15
• Toyota / Lexus LDW I — CSC0601/11
• Toyota / Lexus LDW III — CSC601/25
• Toyota LDW IV — CSC0601/11-01
• VW / Audi / Porsche LDW I — CSC0601/01

Alignment and Positioning Tools Included

Accurate target placement is what separates a passed calibration from a failed one. The MA600 package includes the full set of positioning aids:

• Two-Line Laser (CSC1500/03) — Aligns the calibration frame to the vehicle centerline
• Five-Line Laser (CSC1500/05) — Finds perpendicular axis from any reference point
• L-Shaped Bracket (CSC1500/04) — Measures distance from front wheel for precise frame placement
• Laser Assist Mirror (CSC1500/06) — Simplifies viewing under the vehicle to set centerline
• Plumb Line (CSC1500/07) — Transfers vehicle centerline to a ground reference point
• Laser Assisted Board (CSC1500/08) — Used with either laser to locate vehicle centerline

The MS909 Tablet

This package includes the Autel MaxiSYS MS909 diagnostic tablet. The MS909 handles full-system diagnostics across OBD-II vehicles — not just ADAS calibration. It supports advanced functions including ECU coding, active tests, and bi-directional controls across all systems. The ADAS software upgrade activates on this tablet to guide the technician through each calibration procedure step-by-step, including the correct target, placement distance, and verification routine for the specific vehicle.

Expandable Beyond LDW

This bundle covers LDW calibration out of the box. If your shop also handles blind-spot monitoring (BSM), adaptive cruise control radar (ACC), surround-view camera (AVM), or night vision (NV) calibrations, optional expansion packs are available to add those capabilities to this same frame and tablet. You are not buying a dead-end system — the MA600 platform grows with your shop's ADAS volume.

Who This System Is For

• Independent shops with windshield replacement volume on Japanese and German makes — this pays for itself quickly when you stop sending LDW jobs out
• Body shops doing front-end and glass work on Honda, Toyota, Nissan, Hyundai, and VW platforms
• Multi-bay shops that need portability — the MA600 frame folds flat and stores without a dedicated bay
• Shops building out an ADAS revenue line who want to start with LDW and expand to BSM/ACC/AVM as volume grows

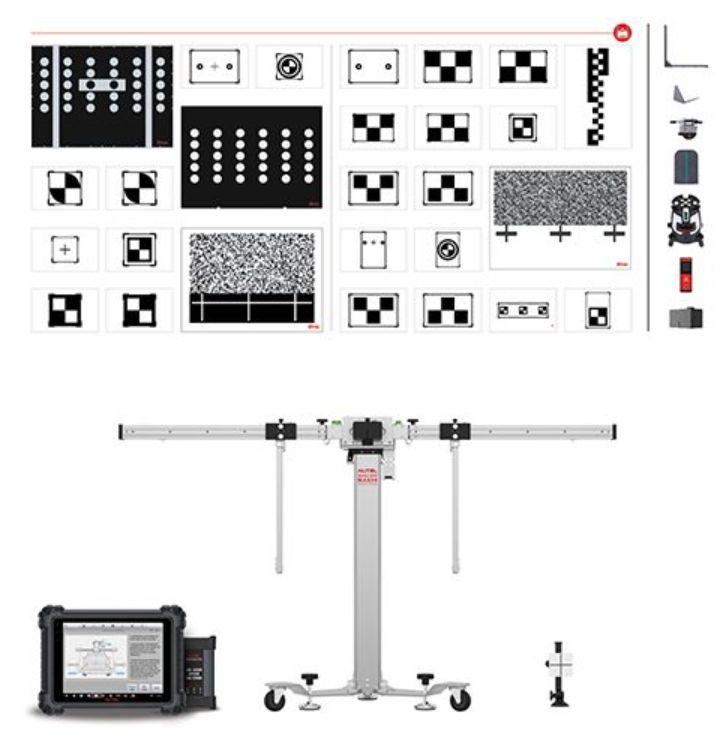

What Is in the Box

• Autel MaxiSYS MS909 tablet with ADAS software upgrade
• MA600 foldable calibration frame
• 28 LDW target panels (full set listed above)
• Patterns case for target storage and transport
• Two-line laser, five-line laser, L-shaped bracket, laser assist mirror, plumb line, laser assisted board
• One-year limited warranty

Why Buy From OEM Diagnostic Tools?

OEM Diagnostic Tools has specialized in professional scan tools and ADAS calibration equipment since 2016. We stock the full Autel ADAS line and can tell you exactly which targets and expansion packs match your vehicle mix — before you order. Every purchase includes free shipping, free technical support at 866-217-0063, and the full manufacturer warranty. We do not upsell you into a system you do not need, and we do not leave you to figure out installation and first-use on your own.

Call 866-217-0063 for quick answers and help!
