Autel MA600 LDW 2.0T — Lane Departure Warning Package with MS909 S2 Tablet

The Autel MA600 LDW 2.0T (part number MA60020T) is the tablet-included configuration of the MA600 LDW 2.0 ADAS calibration package. It bundles the MA600 portable calibration frame, the full LDW target set for major import and domestic manufacturers, the ADAS software upgrade, and the MaxiSYS MS909 S2 tablet with Bluetooth MaxiVCI V200.

This is the right starting point for shops that do not already own an Autel MaxiSYS tablet and want to launch LDW camera calibration service immediately without a separate tablet purchase.

Vehicle Coverage

LDW calibration targets and patterns included for:

• Alfa Romeo
• Honda
• Volkswagen
• Mercedes-Benz
• Hyundai / Kia
• Nissan / Infiniti
• Mazda
• Mitsubishi
• Subaru
• Toyota / Lexus (includes Toyota LDA target)

Lane Departure Warning only. Blind spot, adaptive cruise control, AVM, and night vision require separate expansion packs.

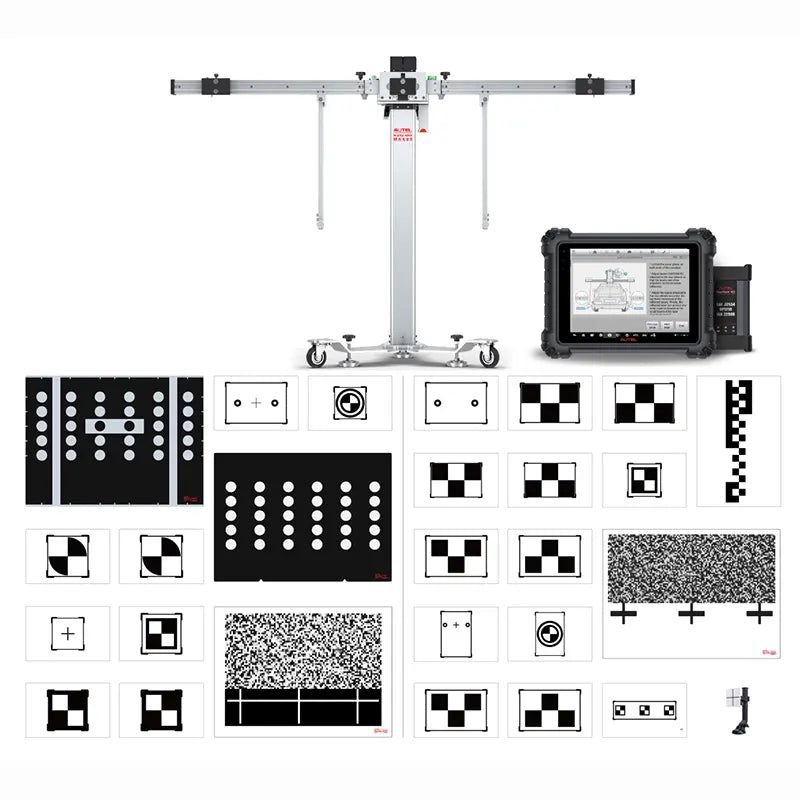

What Is Included

• Autel MA600 Mobile Calibration Frame (collapsible aluminum, with travel case)
• LDW calibration targets and patterns for all listed manufacturers
• Toyota LDA calibration target
• ADAS Software Upgrade license
• MaxiSYS MS909 S2 tablet
• Bluetooth MaxiVCI V200
• 2-line centering laser and 5-line alignment laser
• Laser-assisted reflectors
• One-year limited warranty

Frame Specifications

• Assembled width: 2,510mm (98.82 in)
• Pattern board height range: 1,000-1,600mm (39.4-62.9 in)
• Net weight: 100.8 lbs total (ships in two sections)
• Laser class: Class 2 | CE, FCC, RoHS certified
• Minimum bay clearance: 10 feet in front of vehicle

MA60020T vs. MA60020 — The Only Difference Is the Tablet

• MA60020 (~$9,585) — Frame, targets, software upgrade. No tablet. Use with your existing compatible MaxiSYS tablet.
• MA60020T (~$11,585) — Same package plus the MaxiSYS MS909 S2 tablet and Bluetooth VCI V200.

The $2,000 difference reflects the MS909 S2 tablet price. If you have a compatible tablet already, save the cost and order MA60020. If you need the tablet, MA60020T is the cleaner option.

Expandability

Optional expansion packs add BSM, ACC, AVM, and Night Vision coverage to the MA600 frame. The MA600 platform is designed for incremental expansion — start with LDW, add what your market demands.

Why Buy the Autel MA600 LDW 2.0 T From Autel Diagnostic Tools?

We have specialized in Autel ADAS equipment since 2016. The MA600 package family has multiple overlapping configurations and we can help you identify the right one for your situation. Free shipping, free technical support at 866-217-0063, full manufacturer warranty.
