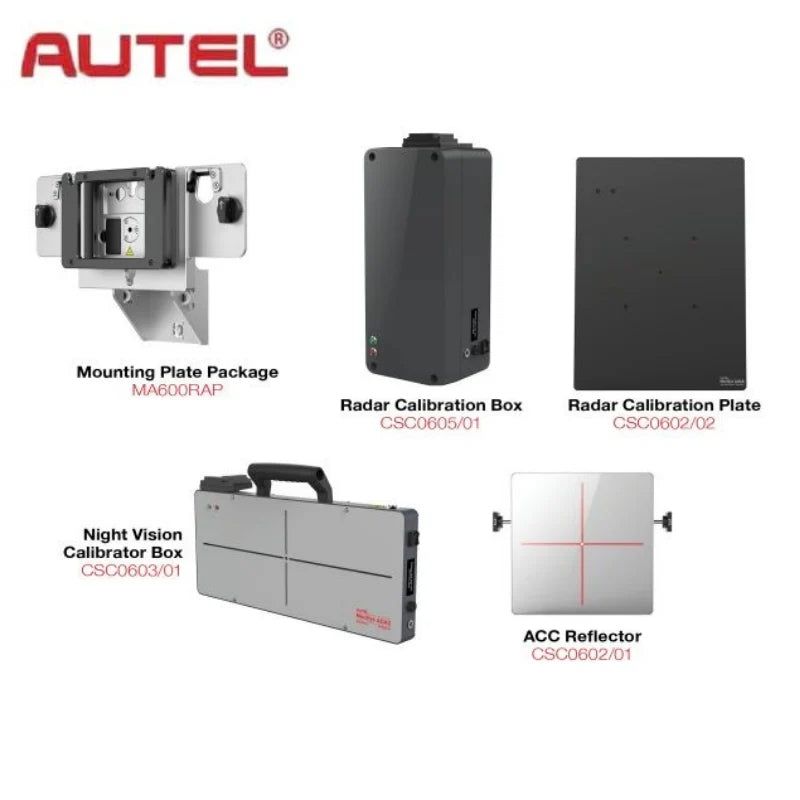

Autel MA600 Calibration Package 3 (MA600CAL3) — Expansion Targets for the MA600 ADAS Frame

The MA600CAL3 is an expansion calibration package for the Autel MaxiSYS MA600 Portable ADAS Calibration System. If you already have the MA600 frame and are looking to expand which vehicle makes you can calibrate — specifically adding additional camera calibration target coverage — this package extends your existing investment without having to buy a new system. At $4,940, it slots between the base LDW-only configuration and the full All Systems packages.

This is not a standalone system. It requires the MA600 frame and a compatible MaxiSYS tablet with ADAS software. If you are starting from scratch, look at the MA60020 (LDW 2.0) or MAS20 (All Systems 2.0) complete packages instead.

What the MA600 Ecosystem Is

The MA600 is Autel's portable ADAS calibration frame — collapsible aluminum construction, designed for shops that need to move the system between bays or to customer locations. The frame uses a 2-line centering laser and 5-line alignment laser to position calibration targets precisely in front of the vehicle camera. The pattern board adjusts from 1000mm to 1600mm in height. The crossbar spans 2510mm (98.82 inches) and adjusts from 350mm to 950mm off the ground. Total system net weight is 100.8 lbs.

The system works with these MaxiSYS tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, and MSADAS. The MSADAS tablet comes with ADAS software pre-loaded. All other tablets require a one-time ADAS software upgrade purchase. Important: tablets with a previously activated ADAS application that is now expired are not compatible with the MA600 — you would need to purchase a fresh ADAS software upgrade.

Who Needs the CAL3 Package

Shops that already own the MA600 frame but need to add calibration coverage for specific additional vehicle makes or ADAS functions should look at the CAL3 expansion package. Autel structures the MA600 ecosystem around a modular approach: buy the frame and basic LDW targets, then add expansion packages as your customer base demands. The CAL3 package provides additional calibration patterns and targets to expand coverage beyond what came with your initial purchase.

For the specific vehicles and ADAS functions covered in this package, download the MA600CAL3 Expansion Package PDF from Autel's site for the complete target list. The research data confirms this is a legitimate listed expansion package with Autel's own documentation available.

MA600 Frame Specifications (Reference)

• Frame Dimensions: 2510mm (W) x 714mm (D) x 1480–2105mm (H)
• Net Weight: 100.8 lbs (Base: 53.6 lbs + Column/Crossbar: 47.2 lbs)
• Pattern Board Size: 1360mm x 960mm
• Crossbar Length: 2510mm (98.82 inches)
• Crossbar Height Range: 350mm–950mm
• Pattern Board Height Range: 1000mm–1600mm
• Laser Class: Class 2 (AA batteries, 3V 25mA)
• Frame Power: 24V, 3A
• Operating Temperature: 0°C to 50°C
• Certifications: CE, FCC, RoHS

The MA600 Package Lineup — Where CAL3 Fits

Autel offers multiple expansion paths for the MA600 frame. Understanding the hierarchy helps you decide what to buy:

• MA600 — Frame only (base system, no software, no targets)
• MA60020 / MA600 LDW 2.0 — Frame + LDW targets for major makes + ADAS software
• MA600CAL3 — Calibration expansion package (this item, $4,940)
• MA600CAL4 — Calibration expansion package (different target set, $3,610)
• MAS20 — All Systems 2.0: frame + full ADAS coverage ($23,485)
• MAS20T — All Systems 2.0T: same but includes MS909 tablet ($26,985)

If you're building out ADAS calibration capability for the first time, start with MAS20 for the most complete package. The CAL3 and CAL4 expansion packages make sense when you already have the frame and are adding specific coverage based on customer demand.
