Autel LDW Calibration Package (LDWPACKAGE-01)

The Autel LDW Calibration Package is a complete static ADAS calibration system built around Autel's adjustable CSC frame with electrically powered frame lifter. This package adds Lane Departure Warning (LDW) calibration capability on top of the standard frame kit, giving shops a single purchase that covers forward camera and ACC radar calibration plus LDW targets for a wide range of Asian and European makes.

If your shop handles windshield replacements, front-end repairs, or suspension work on vehicles with lane-keeping systems, calibration is required by law and OEM specification before the vehicle leaves the lot. This package gives you the hardware to do that work in-house rather than subcontracting it out.

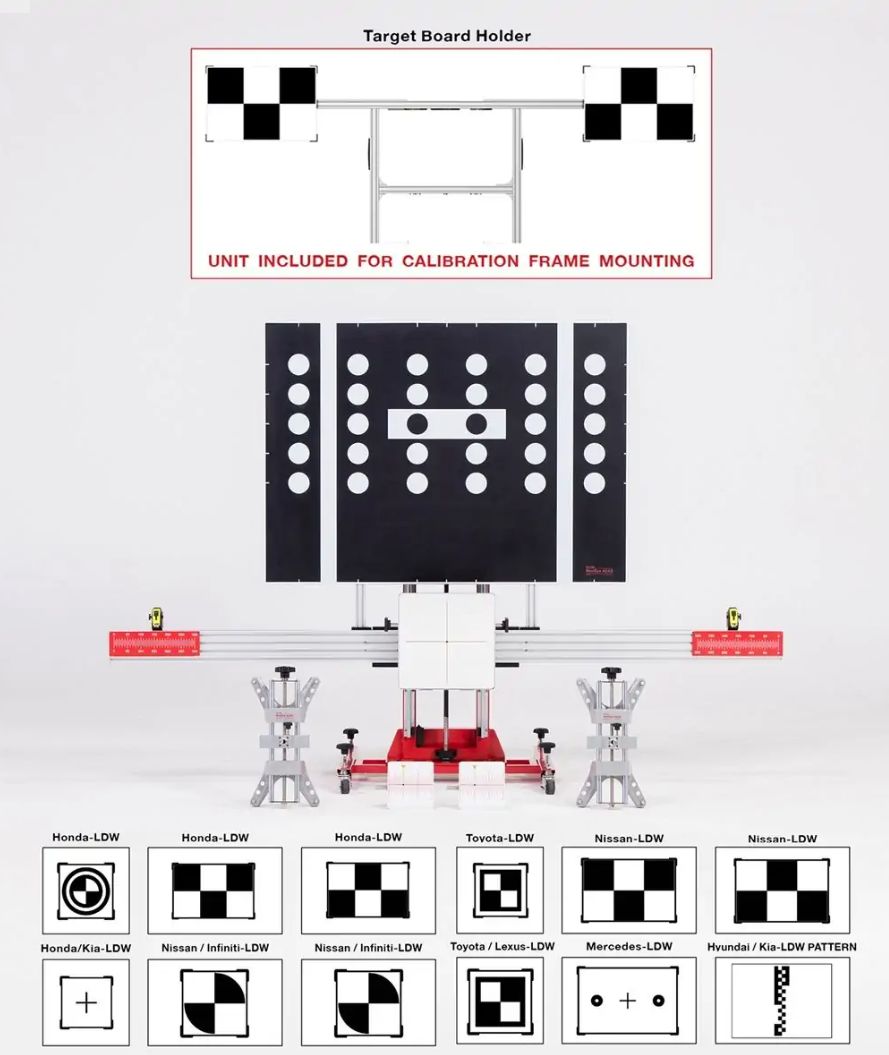

What's in the Box

• Adjustable ADAS Calibration Frame: Electrically powered height lifter for precise vertical positioning without manual guesswork
• LDW Pattern Board for VW and Mercedes: Vehicle-specific patterns required for forward camera calibration on Volkswagen and Mercedes-Benz platforms
• LDW Target — Honda, KIA, Nissan, Infiniti, Toyota, Lexus, Hyundai: Covers the major Asian makes that require LDW static targets for forward-facing camera recalibration
• Target Board Holder: Positions and stabilizes the target board at the correct height and distance for calibration procedures
• Two Wheel Clamps with Lasers: Used to establish vehicle centerline and set target placement distance accurately
• Adaptive Cruise Control (ACC) Reflector: Required for radar/ACC sensor calibration on supported vehicles

Vehicle Coverage

The LDW targets and pattern boards in this package cover static LDW calibration for:

• Asian Platforms: Honda, KIA, Nissan, Infiniti, Toyota, Lexus, Hyundai
• European Platforms: Volkswagen, Mercedes-Benz (via the included pattern board)

Coverage for additional makes beyond these depends on the MaxiSYS ADAS tablet software. If you need exact model-year coverage for a specific vehicle, contact us and we'll confirm before you buy.

Compatible Tablets

This frame package does not include a tablet. It is designed to work with:

• Autel MaxiSYS ADAS tablet (dedicated ADAS unit)
• MaxiSYS MS908 or Elite tablets with the ADAS Calibration Application purchased and installed separately

If you already own a compatible MaxiSYS tablet, this package slots in without additional software purchases beyond what your tablet already supports. If you're starting from scratch, pair this with the MaxiSYS MS909, MS919, or Ultra for the most complete diagnostic and calibration workflow.

Who Needs This Package

• Independent shops doing windshield R&R: LDW cameras mount to or near the windshield on most modern vehicles. Every glass pull on a LDW-equipped car triggers a required recalibration.
• Collision and alignment shops: Front-end repairs and suspension alignment changes can knock forward-facing sensors out of spec. Sending the car out for calibration kills your efficiency and your margin.
• Multi-make general repair shops: The target set covers Honda, KIA, Nissan, Infiniti, Toyota, Lexus, Hyundai, VW, and Mercedes — enough coverage to handle the majority of daily ticket volume at a typical independent shop.

What This Package Does Not Cover

The LDWPACKAGE-01 does not include targets for every make and model on the road. Shops that service a heavy European or domestic luxury mix (BMW, Audi, GM SuperCruise, Ford Co-Pilot) should review the full Autel target library to confirm coverage before purchasing. Additional targets are available separately.

Technical Specifications

• Frame Type: Adjustable ADAS Calibration Frame with electric lifter
• Calibration Types Supported: Static (forward camera, LDW, ACC radar)
• Weight: 514 lbs (shipping weight)
• Warranty: 1 year on materials and workmanship
• Tablet Required: Sold separately (MaxiSYS ADAS, MS908, or Elite with ADAS app)

Why Buy From OEM Diagnostic Tools?

We've been selling and supporting Autel ADAS equipment since 2016. We know this product line in detail — which targets you need for which vehicles, how the frame integrates with each tablet generation, and what additional purchases you may need down the road. When you call us, you talk to someone who actually knows the equipment.

• Free shipping on this order
• Free tech support — call 866-217-0063 with setup or calibration questions
• Full manufacturer warranty honored without hassle
• Honest guidance — if a different package fits your shop better, we'll tell you
