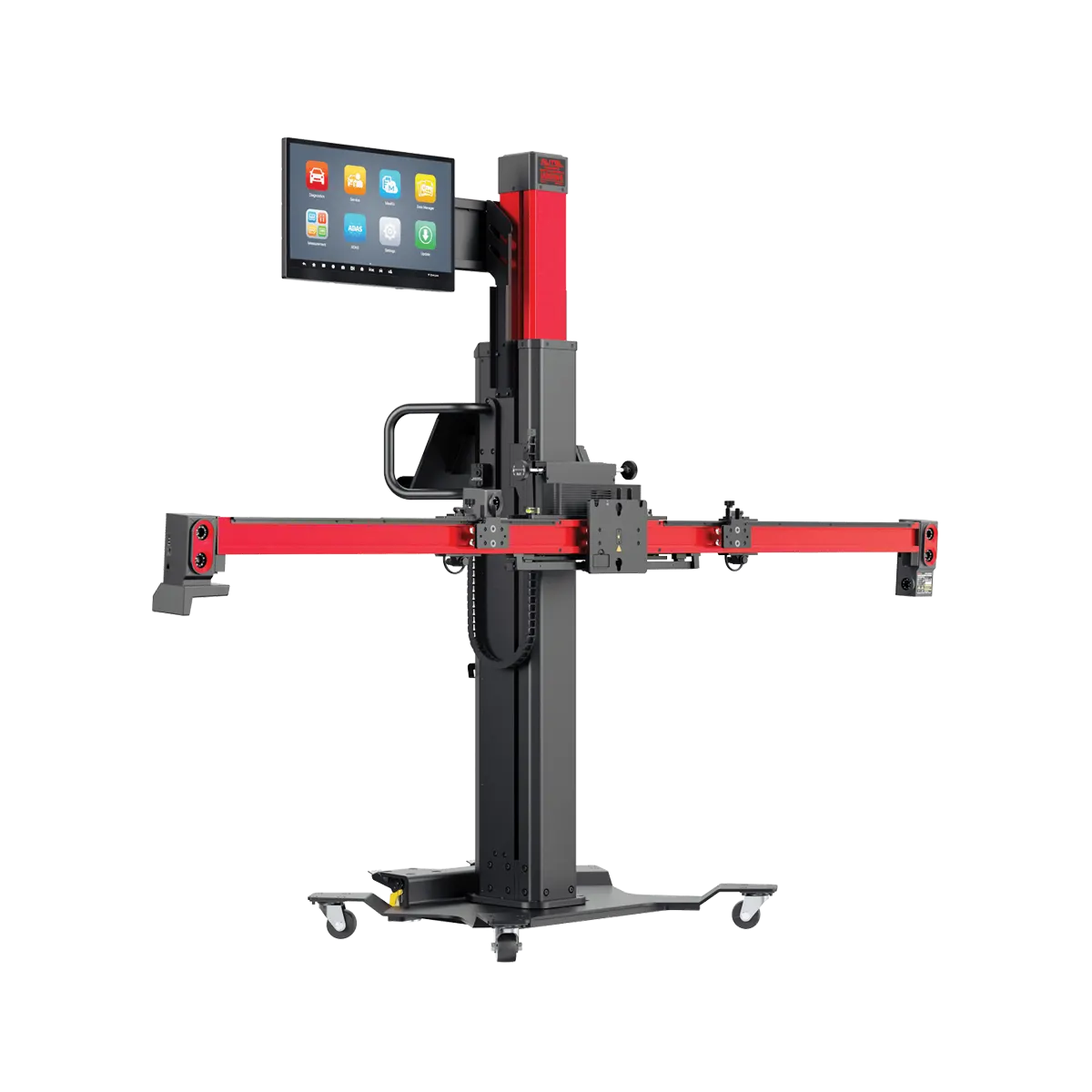

Autel MaxiSYS IA900AS — IA900WA Frame with All Systems ADAS Target Package

The IA900AS is the IA900WA calibration frame packaged with All Systems ADAS calibration components — everything needed to calibrate cameras, radar, LiDAR (LIDAR), Night Vision units, and additional ADAS systems beyond basic lane departure warning. This is the package for collision centers, dealerships, and high-volume shops that need to handle the full spectrum of ADAS work on modern vehicles.

This package does not include the MSULTRAADAS tablet. If you want the tablet included, that is the IA900AST.

What "All Systems" Means

The IA900AS target package goes well beyond LDW camera calibration. Included calibration capabilities cover:

• LDW (Lane Departure Warning) — Forward-facing camera calibration, covers Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo
• AVM (Around View Monitoring) — 360-degree surround view cameras, mats for Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, and Mitsubishi
• BSD (Blind Spot Detection) — Side/rear radar and camera calibration
• ACC (Adaptive Cruise Control) — Front radar calibration
• LIDAR — LiDAR sensor calibration for equipped vehicles
• NVS (Night Vision) — Night vision camera calibration
• RCW (Rear Collision Warning) — Rear-facing camera and radar calibration, mats for Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, and Mitsubishi

This is the target set collision shops need. A vehicle that has been in a moderate to severe accident can require calibrations across multiple ADAS systems simultaneously. Having all targets in one package means you do not have to turn away work or ship cars to a specialty calibration center.

Frame Capabilities

• Four-wheel alignment and ADAS calibration — one frame, one workflow
• Six high-resolution positioning and tracking cameras built into the frame
• Alignment accuracy: 0.02 degrees
• Robotic crossbar movement for efficient positioning
• Automatic crossbar height adjustment from 6 inches to 7 feet
• Tracks vehicle height automatically on lift throughout process
• Self-calibrating cameras — no manual recalibration required
• Unlevel floor compensation — works on level, unlevel, or rack surfaces
• Fully optical target placement — 6X faster than mechanical measurement
• Alignment coverage: U.S., Asian, and European vehicles, 1996 and newer
• 24-inch touchscreen display included with frame

Alignment Features

• All measurements: camber, caster, toe, thrust angle, SAI, toe-out on turns
• Frame alignment and engine cradle alignment diagnosis
• Tire diameter, tread depth and pressure
• Wheel-off and raised vehicle adjustment modes
• Bump steer diagnosis, steering angle relearn
• Network topology via MaxiSYS integration
• Illustrated instructions with live readings and adjustment locations on a single screen

Documentation

Pre-scan identifies all existing faults and active ADAS systems. Post-scan generates a detailed insurer-ready report confirming all OE-required calibrations were performed to OE specifications — essential for collision repair billing and insurance reimbursement.

What Is Included

• IA900WA calibration frame with 24-inch touchscreen display
• All Systems calibration target package (LDW, AVM, BSD, ACC, LIDAR, NVS, RCW)
• Wheel Clamps (4x)
• Wheel Targets (4x)
• Distance Target (1x)
• Steering Wheel Lock (1x)
• Wheel Chocks (2x)
• Brake Lock (1x)
• One-year limited warranty

IA900AS vs. IA900LDW — Which Package?

If your shop is primarily doing post-alignment and post-windshield camera calibrations, IA900LDW covers the most common cases. If you handle collision repair, work on luxury or European vehicles with radar and LiDAR systems, or want to be able to say yes to every ADAS calibration job that comes through the door, IA900AS is the right investment. The price difference is material, but so is the capability gap.

IA900 Configuration Options

• IA900WA — Frame only, no ADAS targets, no tablet
• IA900WAT — Frame + MSULTRAADAS tablet, no ADAS targets
• IA900LDW — Frame + LDW targets, no tablet
• IA900LDWT — Frame + LDW targets + MSULTRAADAS tablet
• IA900AS — Frame + All Systems targets, no tablet
• IA900AST — Frame + All Systems targets + MSULTRAADAS tablet
