Autel IA800 Intelligent ADAS Frame Package

The IA800 Intelligent ADAS Frame Package gives shops a second ADAS calibration station without duplicating the targets and accessories they already own. Built around the motorized, height-adjustable IA800 frame and activated by the ADAS Upgrade Card, this package covers static calibration for lane departure warning systems on Volkswagen and Mercedes-Benz platforms, plus adaptive cruise control radar alignment — all without a tablet, which you supply separately (MS909 or higher required).

If your shop already runs an Autel ADAS setup and you're adding bay capacity, or if you're standing up a dedicated ADAS bay for the first time and want to keep target costs down, this is the configuration to look at.

What the IA800 Frame Does

The IA800 is a motorized calibration frame with an adjustable base. The push-button power lifter raises and lowers the crossbar to the exact height each calibration procedure requires — no manual cranking, no guesswork. The sliding laser plate and flip-up reflector with laser position ruler let you confirm target placement precisely before you start the procedure. The mounted tape measure is built into the frame so you're not hunting for a separate measuring tool mid-job.

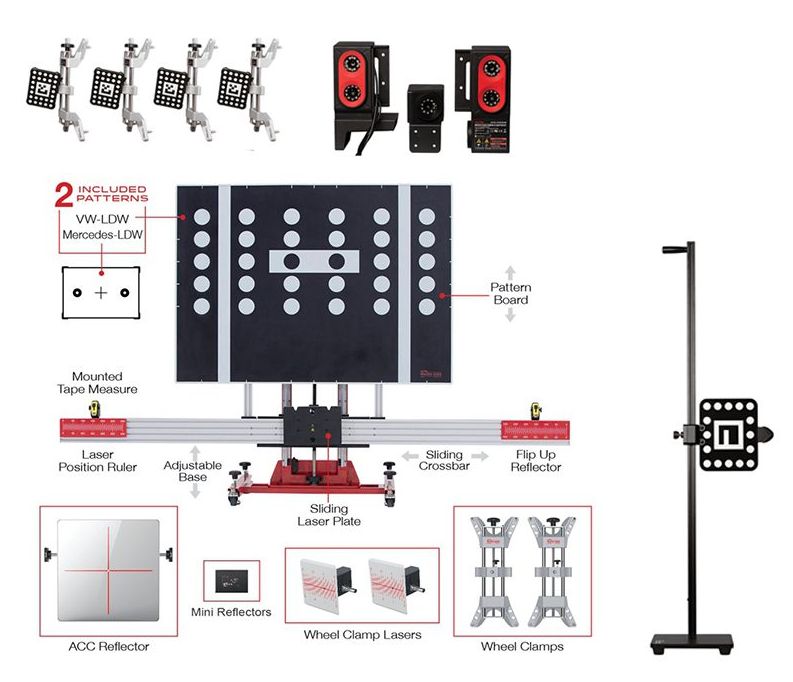

Included Targets and Hardware

• Pattern Board (CSC0600/06): The main board that holds the LDW pattern panels on the frame crossbar.
• VW LDW Pattern (CSC0601/01): Volkswagen-specific lane departure warning calibration target.
• Mercedes LDW Pattern (CSC0601/02): Mercedes-Benz-specific lane departure warning calibration target.
• ACC Reflector (0602/01): Adaptive cruise control radar reflector plate for front radar sensor alignment.
• Wheel Clamps with Lasers (0500/01 / 0500/02): Two wheel clamps with integrated laser units for vehicle centering and target positioning relative to the vehicle's actual wheel centerline.
• Crossbar (0600/05): Attaches to the vertical column and carries the pattern board at the calibrated height.
• Base Crossbar (0600/02) and Base Holder (0600/01): Form the stable floor-level base of the frame.
• Sliding Laser Plate: Adjusts laterally on the crossbar for precise horizontal target positioning.
• Flip-Up Reflector and Laser Position Ruler: Quick-reference tool for confirming laser alignment during setup.
• Mounted Tape Measure: Integrated measuring tape for distance-to-vehicle setups.
• Push Button Power Lifter: Motorized height adjustment for the crossbar — no manual effort required.
• Adjustable Base: Accommodates different floor conditions and vehicle approach angles.
• ADAS Upgrade Card: Activates ADAS calibration functionality on the connected MaxiSYS tablet.

What's Not Included (and What You Need)

This package does not include a tablet. You will need a MaxiSYS MS909 or higher (MS909EV, MS919, or MaxiSYS Ultra) to run calibration procedures. If you already own a compatible tablet from an existing Autel setup, that tablet will run this frame once the ADAS Upgrade Card is applied. Contact us if you need help confirming tablet compatibility before ordering.

Additional vehicle-specific targets beyond VW and Mercedes LDW are not included in this package. Autel offers a broad target library for other makes — ask us which targets your vehicle mix requires so you buy only what you'll actually use.

Which Shops This Package Fits

• Multi-bay ADAS shops: Already have a full Autel ADAS system in one bay and need a second frame to run concurrent jobs without buying duplicate targets.
• Import-focused shops: Heavy VW/Audi and Mercedes-Benz volume — the two included LDW targets cover your most common static calibration calls.
• Collision centers adding ADAS: Windshield replacements and front-end repairs routinely require camera and radar recalibration. This frame handles both the forward camera (LDW) and ACC radar in one setup.
• Shops with an existing MS909 or Ultra tablet: If you already run Autel diagnostics at that level, adding this frame is a straightforward expansion — no new tablet purchase required.

Calibrations Supported

• Lane departure warning (LDW) — Volkswagen and Mercedes-Benz static targets included
• Adaptive cruise control (ACC) radar — reflector plate included
• Additional calibration types (AVM, blind spot, night vision) depend on targets purchased separately and tablet software version
