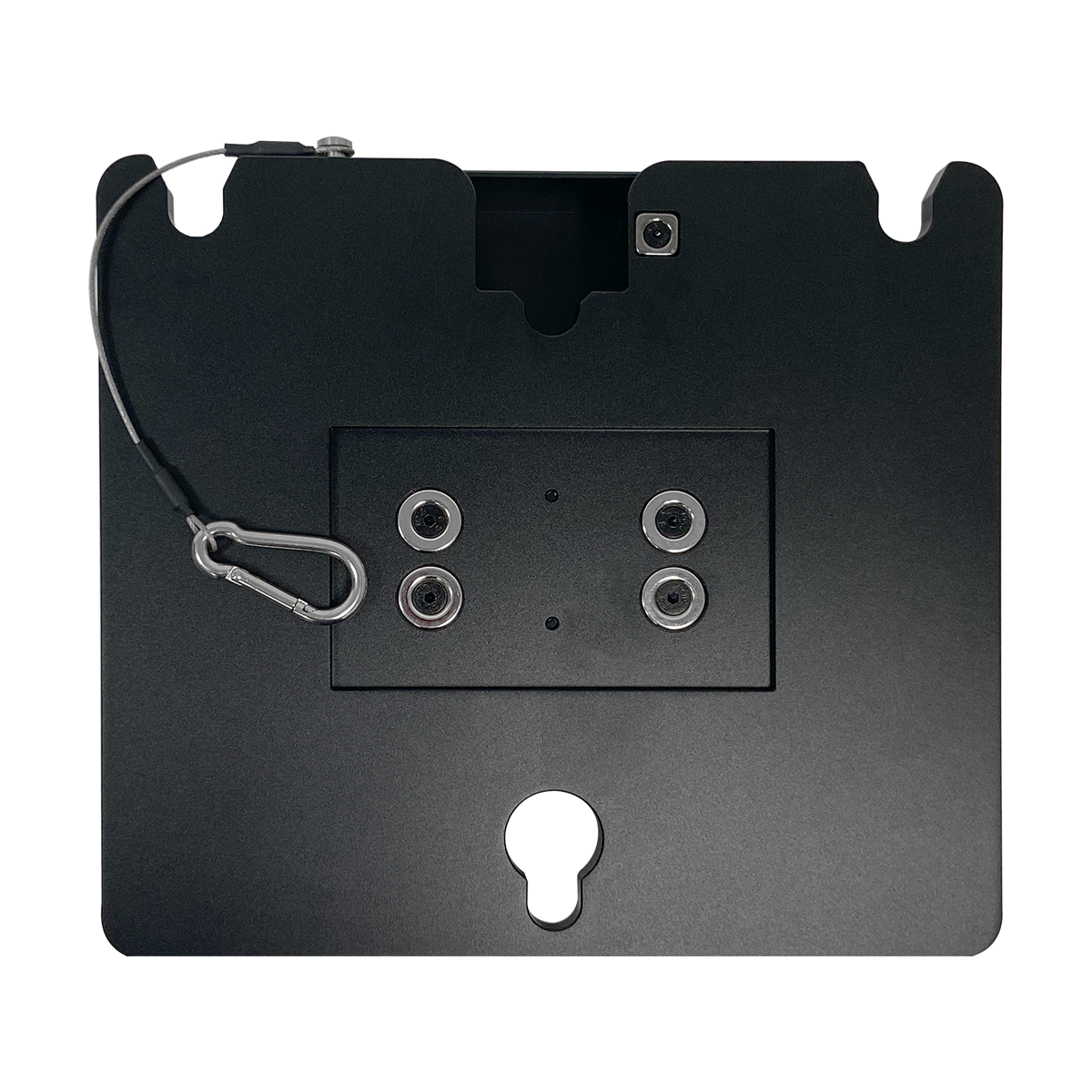

Autel IA1000WA Center Mounting Plate CSC050A-17 — Attach Digital Monitor or Physical Target to IA1000 Frame Crossbar

The CSC050A-17 is the center mounting plate for the Autel IA1000 ADAS calibration frame. It attaches to the center of the IA1000 frame crossbar and provides the mounting point for either a digital target monitor display or a physical target board — specifically for vehicle-camera calibrations that require three targets simultaneously (one on each side arm plus one in the center).

What This Mounting Plate Does

The Autel IA1000 frame supports multi-target calibration setups. For calibrations requiring three targets — left side, center, and right side — the two outer positions use the standard side arm mounts, while the center position requires this dedicated mounting plate attached to the crossbar. Without CSC050A-17, you cannot set up the three-target configuration the IA1000 supports for certain camera calibration procedures.

• Black metal center mounting plate for the Autel IA1000 frame crossbar
• Attaches to the center of the IA1000 crossbar
• Accepts either a digital target monitor display or a physical target board
• Required for three-target camera calibration configurations
• Quick Reference Installation Guide included
• One-year limited warranty

Who Needs This Plate

If you own an Autel IA1000 system and need to perform calibrations that use the center position — whether with a digital monitor or physical target — this plate is necessary hardware. The IA1000 is Autel''s large-format ADAS calibration frame designed for comprehensive camera system calibration, and some of those procedures require the three-target setup this plate enables.

What Is Included

• CSC050A-17 black metal center mounting plate
• Quick Reference Installation Guide
• One-year limited warranty documentation

Compatibility

• Autel IA1000 ADAS calibration frame (IA1000WA)
• Compatible with Autel digital target monitors for IA1000
• Compatible with physical ADAS target boards for IA1000
