Autel CSC1004-04 — Hyundai & Kia AVM Calibration Pattern

The Autel CSC1004-04 is the manufacturer-specific calibration target for Around View Monitor (AVM) surround-view camera systems on Hyundai and Kia vehicles. If your shop does any collision repair, camera R&R, or suspension work on Hyundai or Kia models equipped with surround-view, this is the pattern you need to complete the calibration procedure correctly.

AVM systems use four wide-angle cameras — front, rear, and both sides — to stitch together a bird's-eye view image. When any one of those cameras is disturbed (replacement, repositioning, or even a significant front-end hit), the entire system needs to be recalibrated. Without the correct target pattern, the software has no reference point to re-align the image stitching. A bad AVM calibration means distorted or misaligned surround-view output, and that goes back to the customer as a comeback.

What This Pattern Does

• Vehicle Coverage: Designed specifically for Hyundai and Kia vehicles equipped with AVM (Around View Monitor) surround-view camera systems. Exact model and model-year coverage depends on your MaxiSYS software version — confirm coverage for your specific vehicle before purchasing.
• Calibration Type: Static target-based calibration. The pattern is placed in defined positions around the vehicle per the on-screen instructions from your Autel ADAS software.
• System Targeted: AVM / surround-view (360-degree bird's-eye monitor). This is a separate target from front camera, radar, or blind-spot patterns — it is specific to the four-camera AVM system.
• Part of the Autel CSC Ecosystem: The CSC1004-04 is designed to work within the Autel CSC (Calibration Standard Components) framework. It mounts to or is positioned using the CSC calibration frame and accessories, or placed flat per procedure instructions, depending on the specific vehicle calibration routine.
• Software Integration: Used with MaxiSYS Ultra, MS909, MS919, or Elite II tablets running Autel ADAS software. The software walks the technician through placement positions, measurement requirements, and the calibration sequence step by step.

Who Needs This Pattern

• Collision repair shops working Hyundai and Kia vehicles with any front, rear, or side camera involvement
• Auto glass shops replacing rear glass or side cameras on Kia/Hyundai models with AVM
• General repair shops that handle camera R&R, side mirror replacement, or suspension/alignment work that can shift camera angles on surround-view-equipped vehicles
• Any shop already running Autel ADAS equipment that wants to expand Hyundai/Kia AVM capability without sending the work out

Calibration Workflow Overview

AVM calibration on Hyundai and Kia vehicles is a static procedure. The technician positions the vehicle on a level surface, places the target pattern(s) in the required locations around the vehicle (front, rear, sides as directed by the software), then initiates the calibration sequence through the MaxiSYS tablet. The software captures the camera images, checks alignment against the known target geometry, and completes the calibration. The CSC1004-04 provides the physical pattern reference the camera system needs to execute this process.

If your shop is already set up with the Autel CSC frame and a compatible MaxiSYS tablet, adding this pattern extends your Hyundai/Kia AVM coverage without a significant additional investment. At $1,080.99, this is a targeted purchase — it does one thing specifically and correctly for this vehicle family.

What's Included

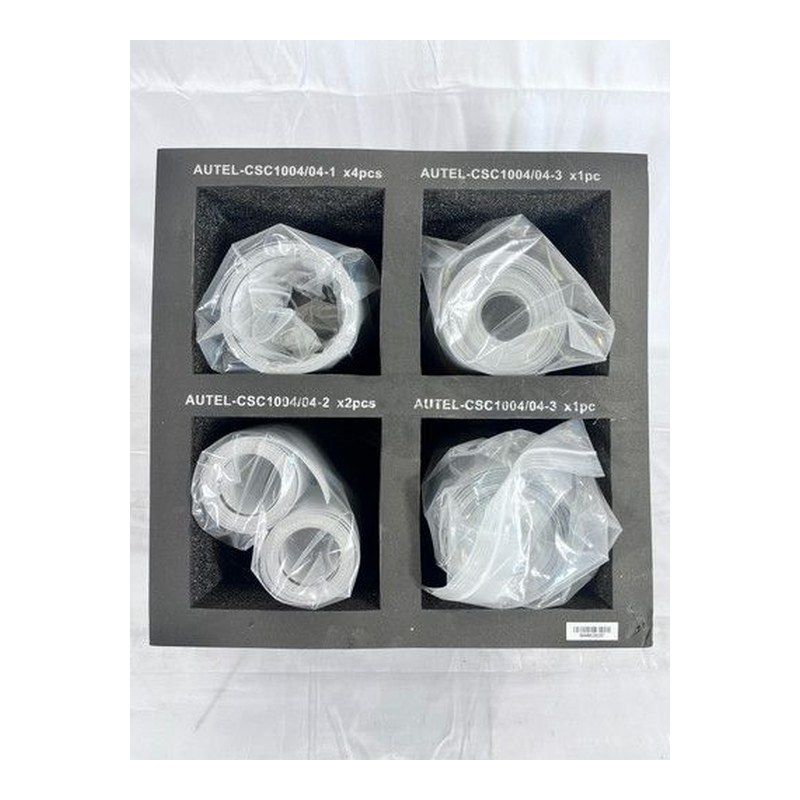

• CSC1004-04 AVM calibration pattern for Hyundai/Kia surround-view systems
• Compatible with the Autel CSC calibration frame ecosystem
• Note: Autel CSC frame, mounting hardware, and MaxiSYS tablet sold separately if not already owned

Before You Buy

Confirm that your MaxiSYS software includes AVM calibration coverage for the specific Hyundai or Kia models you're targeting. Call us at 866-217-0063 and we'll check coverage for your vehicle list before you commit to the purchase.
