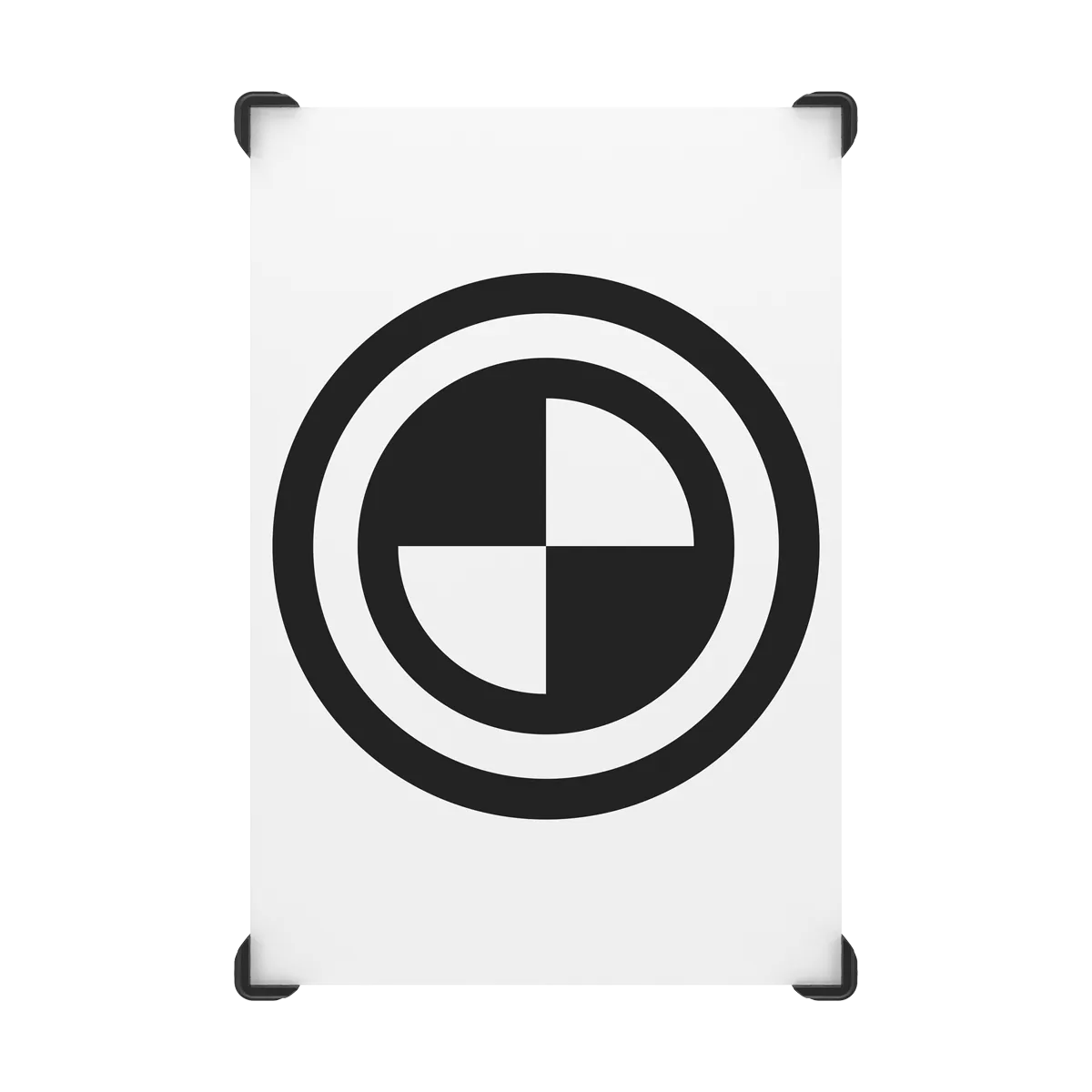

Autel Honda LDW Calibration Target (CSC0601/24)

The Autel CSC0601/24 is a Honda-specific Lane Departure Warning (LDW) calibration target designed for use with the Autel MaxiSYS ADAS calibration system. If your shop handles Honda or Acura windshield replacements, front camera R&R, or any front-end repair that disturbs a forward-facing camera, this target is the piece that makes the static calibration possible.

Honda's LDW and lane-keeping systems require a precisely positioned, vehicle-approved target placed at a manufacturer-specified distance and height in front of the vehicle. The CSC0601/24 mounts to the Autel CSC frame and gives you a repeatable, documented calibration every time — not a workaround, not an approximation.

What This Target Does

• Honda/Acura LDW Static Calibration: Provides the correct pattern and dimensions required by Honda's camera calibration procedure for lane departure warning systems.
• CSC Frame Compatible: Mounts directly to the Autel Calibration Standard Component (CSC) frame. The frame positions the target at the correct height and distance; the software walks the tech through alignment.
• Software-Guided Workflow: Used with a MaxiSYS tablet (Ultra, MS909, MS919, or Elite II) running Autel ADAS software. The software specifies setup distances, confirms vehicle ID, and records calibration results.
• Static Calibration Method: Target-based static calibration is performed in the shop with the vehicle stationary — no road drive required for the initial calibration step.
• Documented Results: Calibration data is logged through the MaxiSYS tablet, giving you a record for the repair order and the customer.

When Does a Shop Need This?

Any time a Honda or Acura with an LDW system has the windshield replaced, the forward camera removed or repositioned, or the front suspension or subframe disturbed, the LDW camera requires recalibration. This is not optional — Honda's repair procedures require it, and insurers increasingly audit it.

If you are already running the Autel CSC frame for other makes, the CSC0601/24 is an add-on target that extends your Honda/Acura coverage. If you are building out Honda ADAS capability from scratch, you need the CSC frame plus this target plus a compatible MaxiSYS tablet.

What's Included

• CSC0601/24 Honda LDW calibration target panel
• Mounting hardware for CSC frame attachment
• Carry/storage case (confirm with order — case inclusion may vary by configuration)

Exact contents are confirmed at order. Contact us at 866-217-0063 if you need a packing list before purchase.

Compatible Vehicles

Designed for Honda and Acura vehicles equipped with Lane Departure Warning camera systems. Specific model-year coverage depends on the Autel ADAS software version on your tablet. Check the Autel vehicle coverage list for your tablet firmware version, or call us and we will verify coverage for the specific Honda/Acura models in your bay.

What You Need to Run This

• Autel CSC Frame — the calibration stand the target mounts to
• MaxiSYS Tablet — Ultra, MS909, MS919, or Elite II with current ADAS software
• Level shop floor — static calibration requires a flat, level surface with adequate clear space in front of the vehicle
• Active Autel ADAS software subscription — required for calibration procedures

Where This Fits in the Autel ADAS Lineup

The CSC0601/24 is a vehicle-specific target — one of many in the Autel target library. If your shop runs multiple makes, you build out your target set over time. The CSC frame and tablet are the fixed investment; targets like this one are the per-make additions. At $499.99, this target pays for itself quickly if Honda/Acura windshield and camera work is part of your volume.

For shops wanting combined wheel alignment and ADAS in one system, Autel also offers the IA900WA. For mobile work, the MA600 frame is worth a look. Call us and we can map out which configuration fits your shop's actual workflow and ticket volume.
