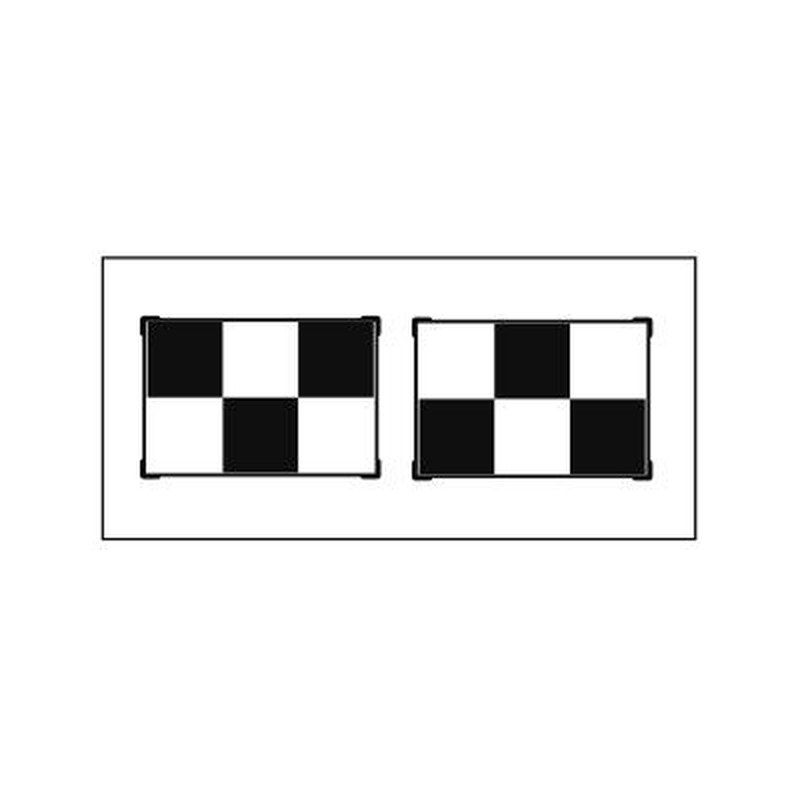

Autel Honda/Acura LDW II Type 2 Right Panel — Aluminum Composite (AULCSC0601-08-R)

This is the replacement or expansion right-side panel for the Autel CSC (Calibration Standard Components) frame, configured specifically for Honda and Acura Lane Departure Warning (LDW) II Type 2 calibration procedures. If your shop does windshield replacements, camera R&R, or front-end work on Honda and Acura vehicles equipped with LDW II Type 2 systems, this panel is what mounts to the CSC frame to present the correct target pattern the vehicle's forward-facing camera is looking for during static calibration.

This is not a universal panel. Honda and Acura LDW II Type 2 requires a specific target geometry, and this right-side panel is one half of that target assembly. The "Right" designation means it mounts on the right side of the CSC frame when facing the vehicle from the front. It is constructed from aluminum composite — lighter than solid aluminum, dimensionally stable, and resistant to the warping or flexing that would throw off calibration accuracy.

What This Panel Is Used For

• Static ADAS Calibration: Used with the Autel CSC frame and compatible MaxiSYS diagnostic tablet (Ultra, MS909, MS919, Elite II) to perform static calibration of Honda and Acura forward-facing cameras after windshield replacement, camera removal, or suspension/alignment work that disturbs camera aim.
• LDW II Type 2 Specific: Designed for the lane departure warning camera systems found on specific Honda and Acura model years that use the Type 2 target pattern. Not interchangeable with LDW I or LDW II Type 1 targets — exact vehicle coverage available on request or through Autel's vehicle coverage database.
• Right-Side Panel: This is the right panel only. A complete Honda/Acura LDW II Type 2 target assembly requires both left and right panels mounted to the CSC frame crossbar at the correct height and distance specified by the OEM procedure.
• Aluminum Composite Construction: The panel surface is flat, dimensionally accurate, and will not bow under shop conditions. Accurate target geometry is non-negotiable for camera calibration — a warped or misaligned target produces a misaligned camera, which creates a safety risk for the end customer.

Who Needs This Panel

Any shop already running the Autel CSC ADAS calibration frame that performs windshield or camera work on Honda and Acura vehicles. If you are seeing Honda Accord, Civic, CR-V, Pilot, Odyssey, Acura MDX, RDX, or TLX with LDW II Type 2 systems and you do not have this panel, you cannot complete static calibration in-house — the vehicle either leaves uncalibrated or goes to the dealer.

Collision shops, glass shops, and independent shops that have invested in the Autel CSC system need the correct target panel for each camera system they encounter. This is a targeted, low-cost addition compared to the alternative of turning away work or subcontracting calibration.

What's Included

• 1x Right Panel — Autel Honda/Acura LDW II Type 2, aluminum composite construction
• Designed to mount to the existing Autel CSC calibration frame crossbar

The CSC frame, crossbar, and diagnostic tablet are sold separately. This panel is a component of the broader Autel ADAS calibration system, not a standalone calibration tool.

Compatibility Notes

• Requires the Autel CSC calibration frame (sold separately)
• Works with MaxiSYS Ultra, MS909, MS919, and Elite II tablets running Autel ADAS software
• Specific Honda and Acura model year and trim coverage: contact us or reference Autel's ADAS coverage database — exact fitment depends on the LDW system variant in the vehicle
• This panel addresses static calibration only. Some Honda/Acura LDW procedures also require a dynamic (road-drive) component — the tablet software will indicate when that step is needed
