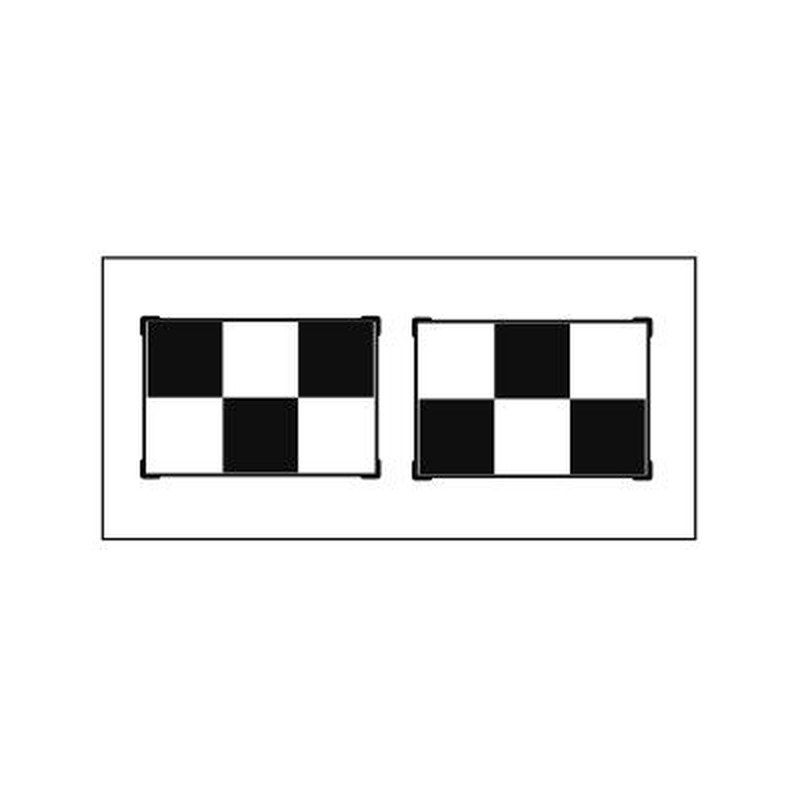

Autel Honda/Acura LDW II Type 2 Left Panel – Aluminum Composite (AULCSC0601-08)

This is a replacement and supplemental calibration target panel designed specifically for Honda and Acura Lane Departure Warning (LDW) II Type 2 systems. If your shop does windshield replacements, front camera R&R, or collision repairs on Honda/Acura vehicles equipped with Honda Sensing, this panel is a required component in the static calibration workflow — without it, you cannot complete the calibration procedure to OEM spec.

This is the left panel of the LDW II Type 2 target assembly, constructed from aluminum composite. It mounts to Autel's CSC (Calibration Standard Components) frame system and positions a vehicle-specific target pattern in the precise location the front camera needs to complete its self-calibration routine.

What This Panel Is For

• Vehicle coverage: Honda and Acura models equipped with LDW (Lane Departure Warning) II Type 2 systems — this includes Honda Sensing-equipped Accord, CR-V, Pilot, Odyssey, Passport, Ridgeline, and Acura equivalents (confirm your specific model year requires this target type before ordering)
• Calibration type: Static target-based calibration — the vehicle is stationary in the bay; the camera reads the panel pattern and calibrates to it
• When calibration is required: After windshield replacement, front camera removal or replacement, front-end collision repair, or any procedure that disturbs the camera mounting or angle
• Frame system: Mounts to the Autel CSC calibration frame — this panel does not work as a standalone item; the CSC frame and correct software license are required

Construction and Materials

• Material: Aluminum composite — dimensionally stable, resistant to warping from shop temperature swings, and durable enough for daily use without degrading the target pattern
• Target pattern: Printed to Autel's calibration specifications; pattern accuracy directly affects calibration pass/fail results
• Orientation: Left panel — pairs with the corresponding right panel for a complete LDW II Type 2 target assembly

Fitting This Into Your Shop's ADAS Workflow

Autel's ADAS system is built around the CSC frame as the physical backbone. You hang vehicle-specific target panels from it depending on what system you're calibrating and what vehicle is in the bay. Honda and Acura use multiple different target configurations depending on system generation — LDW II Type 2 is one of those configurations, and it requires this specific panel set.

If you're running an Autel MaxiSYS Ultra, MS909, MS919, or Elite II with the ADAS software package, your tablet walks you through the calibration procedure step by step — including exact target placement distances and lateral offsets. Follow those on-screen prompts; do not estimate positioning. A camera calibrated to an incorrectly placed target will fail OEM spec even if the vehicle reports a successful calibration.

Shops doing volume Honda/Acura windshield work or handling Honda Sensing repairs regularly should keep this panel in their target library rather than renting or borrowing. A single calibration at $200–$400 typically covers the cost of the panel quickly.

What's Included

• Autel Honda/Acura LDW II Type 2 Left Panel – Aluminum Composite (AULCSC0601-08)
• Panel only — CSC frame, right panel, and tablet/software sold separately

What You Need to Use This Panel

• Autel CSC calibration frame (or MA600 mobile frame with compatible mount)
• Matching right panel for LDW II Type 2
• Autel MaxiSYS diagnostic tablet with active ADAS software license
• Adequate bay space per Autel's setup requirements (confirm via tablet prompts)
