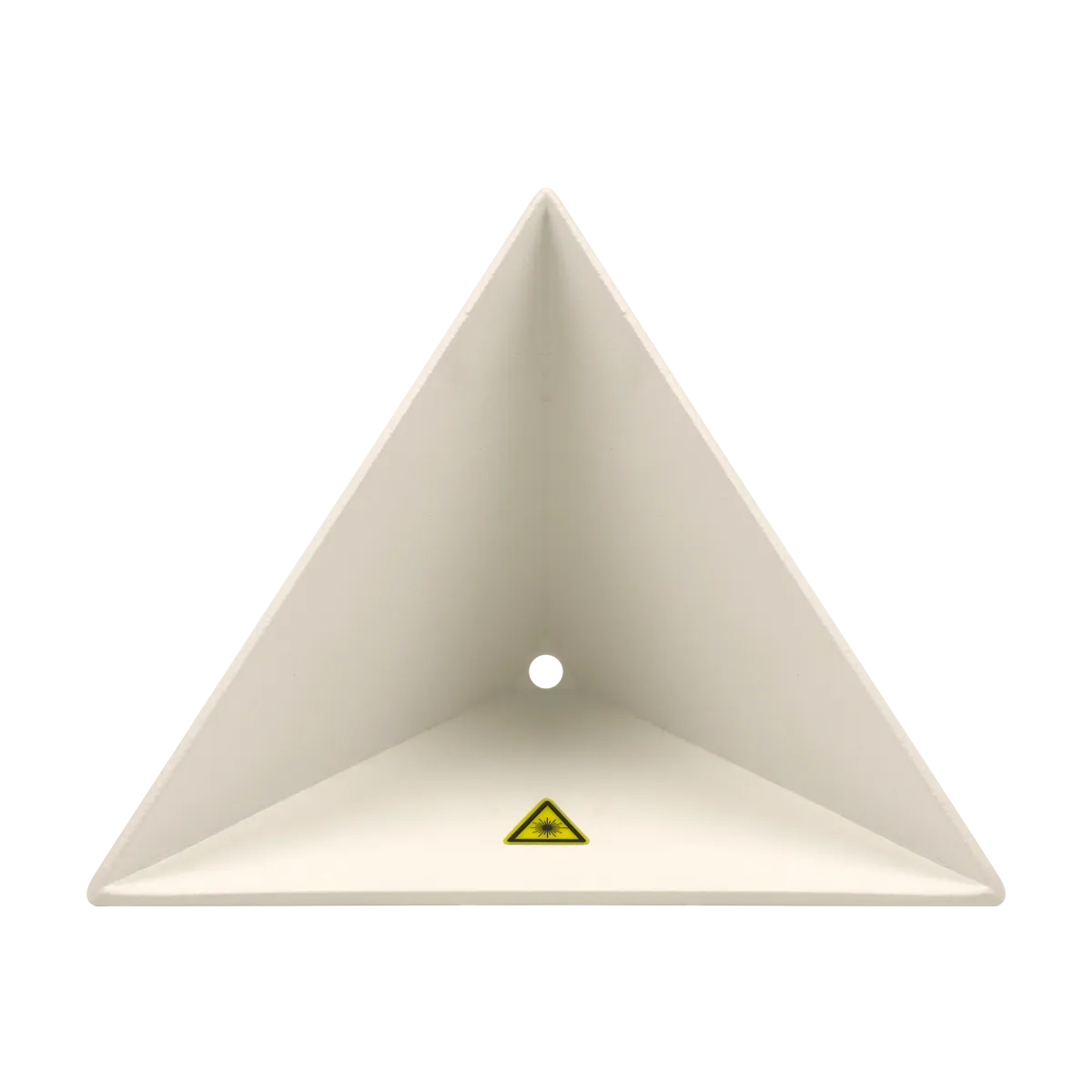

Autel Corner Reflector for Radar Calibration — CSC0802-10

The Autel Corner Reflector (SKU: AULCSC0802-10) is a dedicated radar calibration target used with Autel's ADAS calibration system to perform static radar calibration on vehicles equipped with adaptive cruise control (ACC), forward collision warning, and other radar-dependent driver assistance systems. If your shop does windshield replacements, front-end repairs, or any work that disturbs a vehicle's front radar sensor, this component belongs in your calibration kit.

What This Component Does

Corner reflectors are a specific type of radar target. Unlike optical camera targets (flat boards with printed patterns), a corner reflector is a precision metal geometric shape that bounces radar signals back to the sensor in a predictable, controlled way. When positioned at the correct distance and angle in front of the vehicle, the radar sensor reads the reflection and uses it to verify aim, sensitivity, and detection range are within OEM specifications.

• Target Type: Corner reflector — used for static radar calibration, not optical camera calibration
• Compatible Systems: Works within the Autel CSC (Calibration Standard Components) frame ecosystem, pairing with Autel MaxiSYS ADAS software on MS909, MS919, MS Ultra, and Elite II tablets
• Calibration Type: Static — vehicle is parked, target is placed at the specified distance per the OEM procedure, calibration is performed via the MaxiSYS ADAS application
• Application: Front radar sensors including ACC (adaptive cruise control), AEB (autonomous emergency braking), forward collision warning, and related radar-based ADAS
• Mount Compatibility: Designed to mount on or position with Autel's CSC calibration frame (sold separately as part of the broader ADAS kit)

Who Needs This

This is a replacement or add-on component for shops that already own an Autel ADAS calibration frame and need the corner reflector specifically. It is NOT a standalone calibration system — it works as part of the larger Autel CSC ecosystem.

• Collision repair shops that replace or reposition front radar sensors as part of structural repair
• General repair shops that perform front suspension, subframe, or bumper work on radar-equipped vehicles
• Windshield shops that also service vehicles where the radar is bumper-mounted or hood-mounted and disturbed during glass R&R
• Shops that lost or damaged their existing corner reflector and need a direct replacement without buying a full kit

How Static Radar Calibration Works

After any front-end repair that disturbs the radar sensor — or after a customer comes in with an ADAS warning light — the technician parks the vehicle on a flat, level surface in a space with adequate clearance (OEM distance specs vary by vehicle; consult the MaxiSYS ADAS software for the exact setup per vehicle). The corner reflector is positioned in front of the vehicle at the specified location. The MaxiSYS ADAS software walks the tech through the procedure, confirms sensor readings, and flags any out-of-spec results. The process is guided and documented — critical for liability in collision repair environments.

Compatibility Note

This corner reflector is part of Autel's CSC (Calibration Standard Components) target library. Exact vehicle coverage and compatible ADAS kit configurations are determined by the MaxiSYS ADAS software and the OEM procedures it contains. Contact us to confirm this component works with your existing Autel ADAS setup before ordering if you have any doubt.

What's in the Box

• Autel Corner Reflector (CSC0802-10) — quantity 1
• Verify packaging contents upon receipt; contact us immediately if anything is missing or damaged
