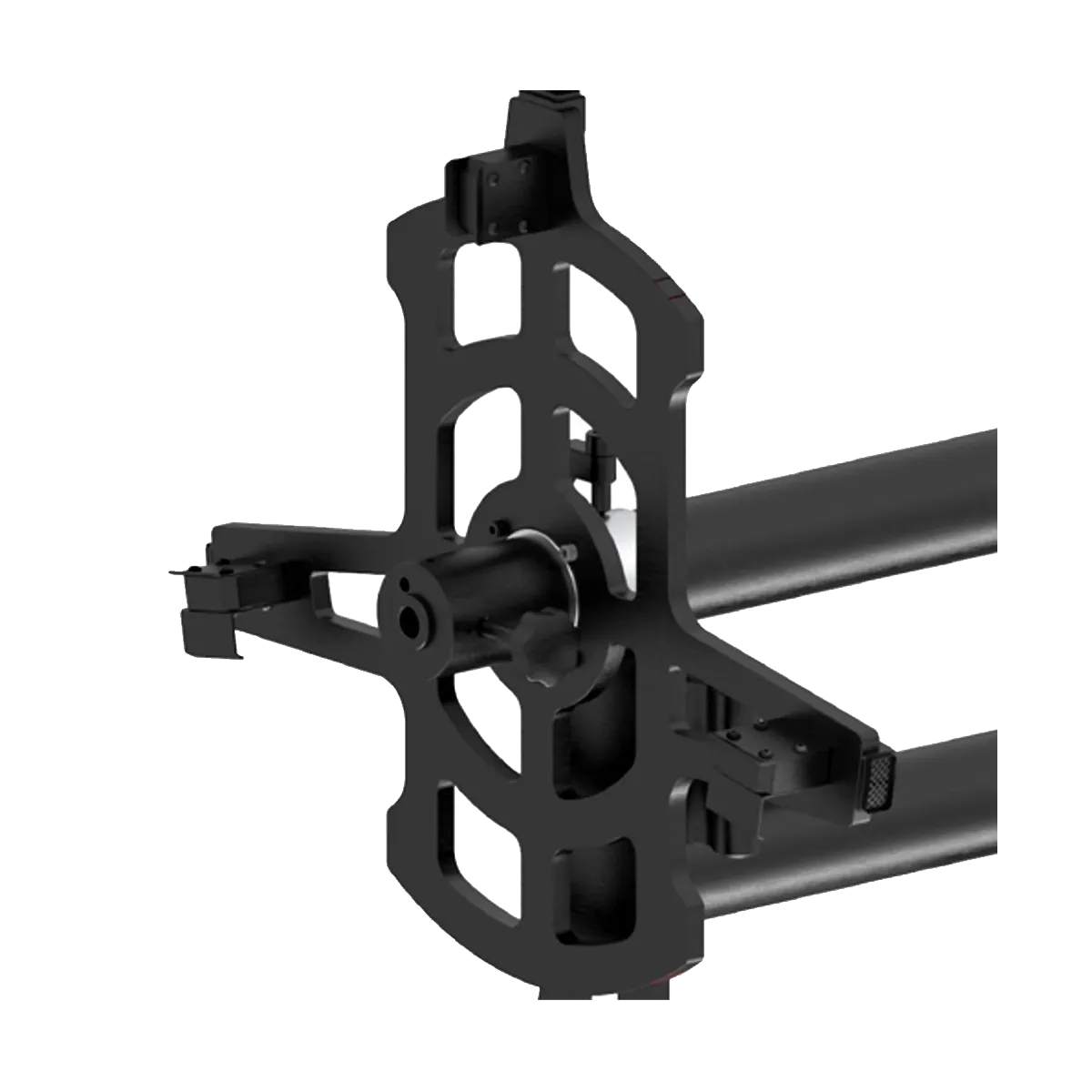

Autel Calibration Bar for Camera-Based Systems (CSC0500-10)

The Autel Calibration Bar for Camera-Based Systems is a dedicated component of Autel's ADAS calibration platform, designed specifically for static target-based calibration of forward-facing cameras, lane departure warning systems, and other vision-based driver assistance systems. If your shop is doing windshield replacements, front-end repairs, or camera R&R on modern vehicles, this bar is how you mount and position the calibration targets required by the vehicle manufacturer's calibration procedure.

This is not a standalone tool — it is a precision-engineered component that works within the Autel ADAS calibration ecosystem, pairing with the Autel CSC (Calibration Standard Components) frame system and used in conjunction with a MaxiSYS diagnostic tablet (Ultra, MS909, MS919, or Elite II) running Autel ADAS software. The bar provides the stable, repeatable horizontal mounting point needed to position optical targets at the exact height and distance the camera calibration procedure requires.

What This Bar Does

• Static Camera Calibration Support: Mounts calibration targets at the precise height required for front-facing camera calibration — the kind needed after windshield replacement or camera R&R on vehicles with lane keep assist, automatic emergency braking, and adaptive cruise control.
• Designed for the Autel CSC Frame: Integrates directly with the Autel CSC calibration frame system. Not a generic bar — engineered to Autel's tolerances for repeatable target placement.
• Horizontal Target Mounting: Provides a stable horizontal rail for attaching vehicle-specific calibration targets. The bar keeps targets level and positioned correctly so calibration procedures pass on the first attempt.
• Supports Multiple ADAS System Types: Used when calibrating front cameras, AVM (around-view monitoring) cameras, and other vision-based systems that require a physical target pattern in the vehicle's field of view.
• Part of a Modular System: Autel's ADAS calibration platform is modular — this bar is a specific component that can expand an existing setup or replace a damaged bar in a current CSC configuration.

Who Needs This

This calibration bar is the right purchase for shops that already have — or are building — an Autel ADAS calibration setup and need the camera calibration bar specifically. Common buyers include:

• Auto Glass and Windshield Shops: Every windshield replacement on a camera-equipped vehicle now requires recalibration. If you're doing volume glass work, this bar is part of your required tooling.
• Collision Repair Centers: Front-end impacts frequently require ADAS recalibration. The camera bar handles the vision-system side of that workflow.
• General Repair Shops Adding ADAS Capability: Shops expanding into ADAS calibration to recapture work that's been going to dealers or specialty calibration services.
• Shops Replacing or Expanding an Existing Autel ADAS Setup: If you have the CSC frame and need the camera bar as a replacement or additional component, this is the correct SKU.

How It Fits the Autel ADAS Workflow

Calibration with this bar follows Autel's guided procedure: the MaxiSYS tablet identifies the vehicle, retrieves the OEM calibration procedure, and instructs the technician on target placement — distance from the vehicle, height, and lateral position. This bar provides the physical structure to mount those targets correctly. Once positioned, the tablet walks through the calibration sequence and confirms pass/fail. Exact target distances and bar height settings are vehicle-specific and software-guided; the system tells you where to put everything.

Technical Notes

• SKU: AULCSC0500-10
• Compatible System: Autel CSC (Calibration Standard Components) ADAS frame platform
• Requires: Autel MaxiSYS diagnostic tablet with ADAS software license (Ultra, MS909, MS919, or Elite II) and compatible vehicle-specific calibration targets
• Calibration Types Supported: Static, target-based camera calibration
• Exact dimensional specs and full vehicle coverage list: Available on request — contact us at 866-217-0063

What's Not Included

This is the calibration bar component only. It does not include the full CSC frame, calibration targets, or MaxiSYS tablet. If you are building a complete Autel ADAS setup from scratch, contact us — we can quote the full configuration that matches your shop's vehicle mix and space requirements.
