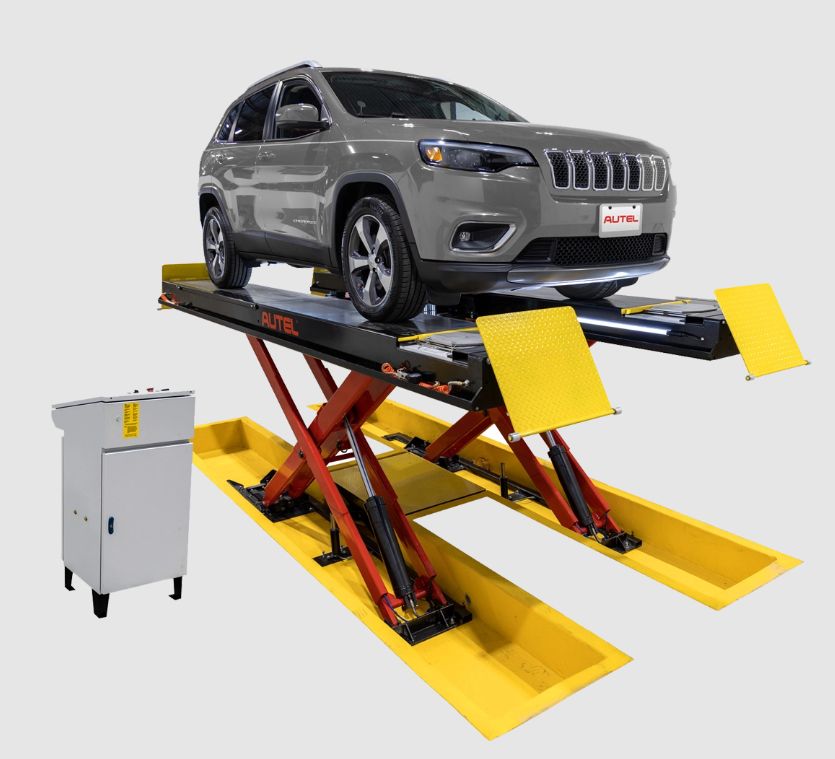

Autel Alignment 14K Scissor Lift (AULS14ALOR1)

The Autel Alignment 14K Scissor Lift is a surface-mounted hydraulic scissor lift rated at 14,000 pounds total capacity, designed specifically for wheel alignment work on passenger vehicles and light trucks. This is a lift built for shops that do alignments daily and need a platform that holds still, doesn't flex, and survives years of hard use without babying.

Capacity and Structure

• Total Lift Capacity: 14,000 lbs (two 7,000-lb jacking beams)
• Runway Dimensions: 203 inches long, 26 inches wide — double-wide for stability
• Built-in "Z" Rails: Structural reinforcement that eliminates runway sag and flex, which directly affects alignment accuracy
• Flush/Surface-Mounted Installation: Compatible with both in-ground and surface installations depending on your shop setup
• Low-Angle Approach Ramps: Easy vehicle drive-on, including low-clearance cars

Alignment-Specific Features

• Stainless Steel Front Radius Plates: Full-rotation turn plates for front wheel positioning during alignment
• Rear Slip Plates: Allow rear axle movement during alignment procedures
• Turn Plate Pocket Protectors: Protect paint and finish on the runway pockets
• Flip-Down Wheel Stops: Front and rear opening runways with wheel stops that fold away when not needed
• Stainless Steel Air Lock Release: Longer service life, lower maintenance than standard air lock systems

Built-In Utility

• Runway Air Tire Inflation Kit: Built-in inflation ports at each wheel position — set tire pressure during the alignment without moving the vehicle
• 24-Inch LED Lighting Kit: Shatterproof lights illuminate the undercarriage work area; automatic shutoff included
• Enclosed Console Control Power Unit: Protected hydraulic controls, cleaner installation

Construction and Finish

• Made in North America and ALI (Automotive Lift Institute) Certified
• Krown Industrial-Grade Rust Proofing: Applied to structural components for long-term corrosion resistance in shop environments
• Premium Double-Baked Powder Coat Finish: Black finish on both the scissor lift body and base
• Autel-Branded: Matched to Autel's alignment system ecosystem

Warranty Coverage

• Lift Parts: 1-year limited warranty
• Hydraulic Jack Parts: 5-year warranty
• Turn Plates, Slip Plates, Bearings, Air Kit, LED Lighting: 90-day warranty

Who Needs This Lift

This lift is for alignment-focused shops that want a purpose-built platform rather than adapting a general-purpose lift to alignment work. The double-wide runways, built-in slip and turn plates, tire inflation kit, and under-lift lighting are all alignment-specific features that save time on every vehicle. At 14,000-lb capacity, it handles most passenger cars, crossovers, SUVs, and light trucks. If your shop runs a dedicated alignment bay, this is the correct lift for that bay.

If you're doing heavier commercial work or need a drive-through lift configuration, contact us — there may be a better fit depending on your vehicle mix and bay layout.
