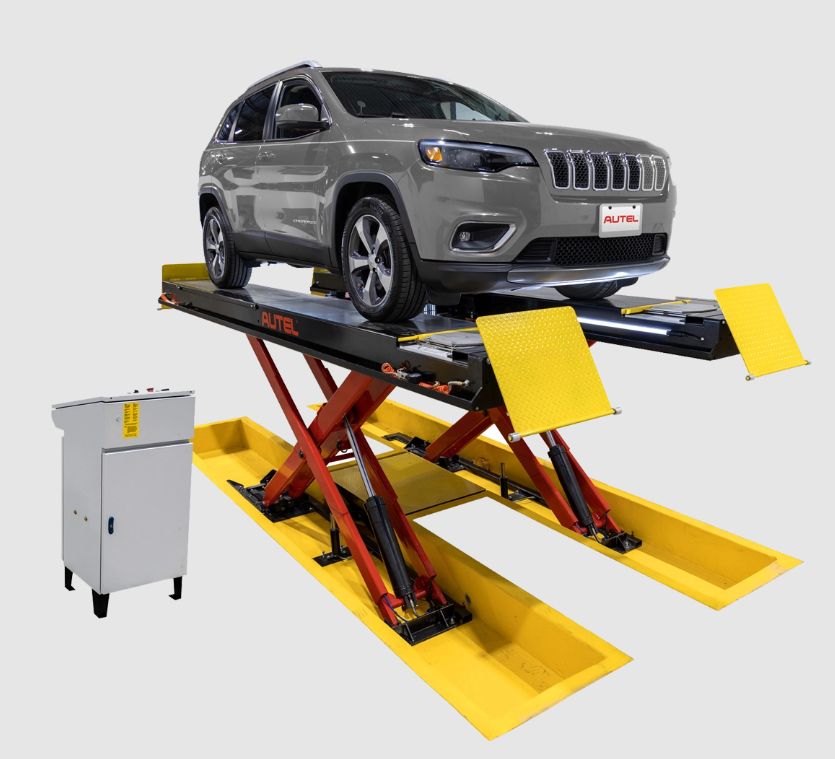

Autel Alignment 12K Scissor Lift (AULS12ALOR1)

A 12,000-lb capacity hydraulic alignment scissor lift built for shops that do wheel alignments daily and need a surface-mount solution that won't flex, sag, or fight you. This is a flush-mount design — it sits at floor level, so you're not working around a raised platform. Made in North America and ALI certified, priced at $37,000 for shops that are done compromising on lift quality.

Who Needs This Lift

If your shop runs a wheel aligner and you're doing alignments on passenger vehicles and light trucks — anything up to 12,000 lbs — this lift is built for that workflow. It pairs directly with Autel's alignment systems. The flush-mount scissor design keeps your shop floor clean and your approach angles low, which matters when customers pull in with lowered vehicles or those with minimal clearance.

Structural Design and Runway Specs

• Capacity: 12,000 lbs total, with two 7K capacity jacking beams included
• Runway dimensions: 185 inches long, 26 inches wide — double-wide for stability
• Built-in Z-rails: Engineered into the runway structure to eliminate sagging and flexing during service; this directly affects alignment accuracy
• Low-angle approach ramps: Reduces hang-up risk for low-clearance vehicles
• Front and rear runway openings: Flip-down wheel stops included

Alignment-Specific Hardware

• Stainless steel front radius plates: Smooth, corrosion-resistant surface for accurate steering sweep measurements
• Rear slip plates: Allow rear axle movement during alignment without binding
• Turn plate pocket protectors: Protect the finish around plate pockets — a detail that matters in a shop where tools get dropped

Hydraulics and Controls

• Stainless steel air lock release: Longer service life compared to standard components; reduces maintenance cycles
• Enclosed console control power unit: Keeps hydraulic controls protected and centralized
• Built-in runway air tire inflation kit: Located at each wheel position — inflate tires without moving the vehicle off the lift

Finish and Corrosion Protection

• Krown industrial-grade rust proofing: Applied before paint for long-term corrosion resistance in shop environments
• Premium double-baked powder coat finish: Black finish with Autel logo labeling

Lighting

• Shatterproof 24-inch LED lighting kit: Mounted on the lift, with automatic shutoff — lights the undercarriage without a separate shop light

Certifications and Warranty

• ALI Certified: Meets Automotive Lift Institute standards — required by many shop insurance policies and OSHA compliance programs
• Made in North America
• Lift parts warranty: 1 year limited
• Hydraulic jack parts warranty: 5 years
• Front turn plates, rear slip plates, bearings, air kit, LED light kits: 90 days

What's in the Box

• 12K scissor lift assembly (surface/flush mount)
• Two 7K jacking beams
• Stainless steel front radius plates
• Rear slip plates with turn plate pocket protectors
• Built-in runway air tire inflation kit (at each wheel)
• Shatterproof 24-inch LED lighting kit with auto shutoff
• Enclosed console control power unit
• Low-angle approach ramps

Buying Decision Guidance

At $37,000, this is a serious capital investment. It makes sense for a shop running consistent alignment volume — if alignments are part of your standard service workflow after tire installs, suspension work, or steering repairs, the Z-rail runway design and built-in jacking beams justify the price by improving throughput and accuracy. If you only do occasional alignments and are looking for a basic two-post or four-post solution, this is more lift than you need. Call us to talk through your volume and whether this configuration fits your bay layout and floor spec requirements.
