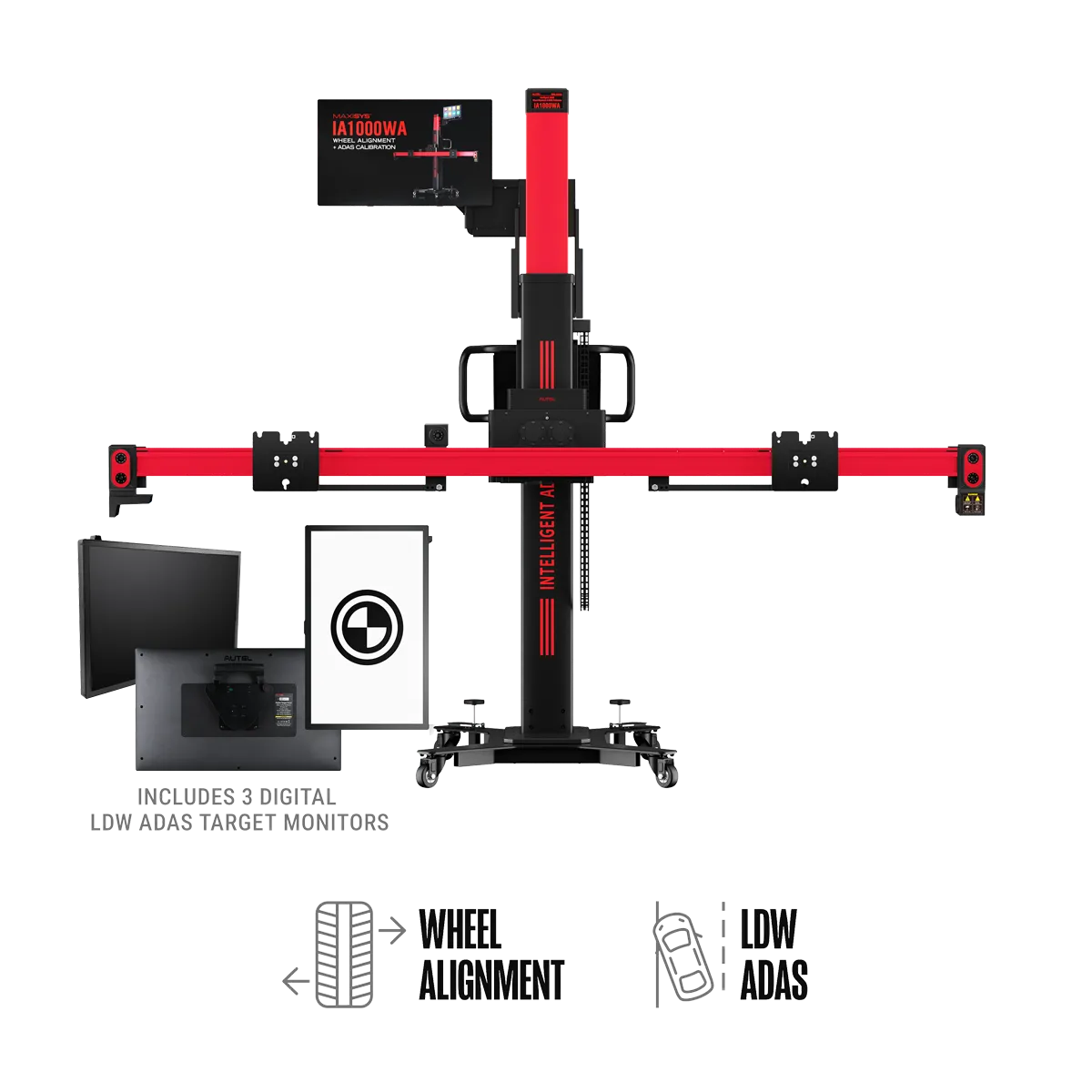

Autel MaxiSYS IA1000 ADAS Calibration & Wheel Alignment System — Digital Targets Package

The Autel IA1000 is a fully automated, in-shop ADAS calibration and wheel alignment system built for shops that need to handle modern camera, radar, and sensor calibration work at production speed. This Digital Targets package (P/N IA1000TDT) includes the IA1000 frame, all standard accessories, the MaxiSYS Ultra S2 diagnostic tablet with ADAS activation, three digital target monitors, and the Digital Target Activation Card — everything you need to perform forward-facing camera and digital-display-based ADAS calibrations without a wall of physical target boards.

At $32,999, this sits between the frame-only packages and the All Systems bundles. It is the right fit for a collision shop, ADAS calibration center, or dealership that handles a high volume of windshield replacements, front-camera R&R, and radar work but does not yet need the full physical LDW target library. If your mix is weighted toward makes where digital targets cover the calibration procedure, this package eliminates the storage, retrieval, and condition management of a large physical target set.

5-Way Robotic Target Positioning

• What it means in practice: Position the frame anywhere within the green distance and offset tolerance zone, press Next, and the IA1000 moves the target into the correct position — front-to-back, vertical, horizontal, pitch, roll, and yaw — without a tech manually measuring and adjusting.
• Result: Dramatically faster setup compared to manual frame positioning; fewer calibration failures caused by targeting errors.
• Laser-guided positioning for Blind Spot (BSD), ACC radar, and AVM (surround view) patterns reduces human setup error on systems where millimeter-level accuracy matters.
• Unlevel floor compensation: Select level floor, unlevel floor, or on a rack — the system adjusts and delivers a successful calibration regardless of shop floor conditions, including sloped drainage surfaces.

Digital Target Display System (3 Monitors Included)

• Three digital target monitors replace the need to store, retrieve, and manage dozens of make/model-specific physical target boards for covered procedures.
• Targets are automatically projected by the software — no manual target selection by the tech, no risk of pulling the wrong board.
• Self-adjusting screen brightness optimizes target visibility across different shop lighting conditions.
• OTA updates push new target coverage directly to the monitors as Autel adds vehicle coverage — no additional hardware purchases required for software-coverage expansions.
• Digital monitors minimize physical storage requirements compared to a full set of printed pattern boards.

Advanced Wheel Alignment — Integrated, Not Bolted On

• 0.02° accuracy via six HD optical cameras and precision-engineered wheel clamp targets — exceeds the standard camber/caster/toe readout.
• Full measurement set includes: thrust angle, SAI (steering axis inclination), toe out on turns, and measurements that surface frame alignment, engine cradle alignment, bent parts, and loose parts.
• Why this matters for ADAS: 11 of 28 major North American automakers require ADAS calibration following wheel alignment — Ford, Volkswagen, Jeep, Kia, Dodge, Subaru, and others. Running alignment and ADAS calibration as separate workflows on different equipment creates documentation gaps and the risk of calibrating a camera on a vehicle with an uncorrected alignment condition.
• The IA1000 documents alignment and ADAS calibration in a single pre/post-scan report chain — one system, one report, insurer-ready documentation.

Powered by MaxiSYS Ultra S2

• 13.7-inch Android touchscreen tablet, 512 GB storage
• 6-in-1 vehicle communication and measurement device — diagnostics, oscilloscope, multimeter, and more in one module
• Coverage: U.S., Asian, and European vehicles, 1996 and newer
• Topology 3.0: OE-style system analysis of multi-speed communication protocol networks — not just a code reader, a genuine network analyzer
• Active Module and Network Analysis: Locate and directly ping ECUs to test signal quality and network integrity
• Active tests, special functions, coding, and adaptations — the full scope of what a diagnostic tablet should do for collision and calibration work

ADAS System Coverage

• Static calibrations (target-based, in-shop): forward-facing cameras (LDW/LKAS), ACC radar, night vision, surround-view (AVM), blind-spot systems
• Dynamic calibrations (road-drive procedures): supported where OEM procedure requires a drive cycle to complete calibration
• Guided ADAS: Pair the IA1000 with a local OE subscription or OE tool for late-model vehicles where aftermarket software coverage lags OEM release dates — the IA1000's optical positioning handles frame placement while the OE software runs the calibration routine
• Remote Expert: Cloud-based access to qualified technicians and OE software for vehicles requiring OEM-level authorization to complete calibration

Pre/Post-Scan Reporting and Documentation

• Pre-scan: Identifies all existing DTCs and safety/convenience system status before calibration begins — establishes a baseline for insurance and liability documentation
• Post-scan: Confirms all OEM-required calibrations were performed to specification, all faults addressed — the deliverable your insurer, customer, and shop record require
• Validated target position reporting documents every target placement step with a Go/No-Go confirmation — advancement is blocked if any element is out of spec
• Autel's documentation package is designed to meet insurer requirements and support sublet billing — more complete than most competing platforms

What's in the Box — IA1000TDT Package

• IA1000 calibration frame with full accessory set
• MaxiSYS Ultra S2 diagnostic tablet
• ADAS software activation card
• Digital Target Activation Card
• Three digital target display monitors
• Wheel clamp targets and alignment hardware
• Required cables and mounting hardware

Note: This package does not include physical LDW target boards for make/model-specific static calibrations that require printed patterns. If your shop volume includes significant work on vehicles requiring physical LDW targets (Mercedes-Benz, Nissan, Toyota, Subaru, VW/Audi, Hyundai/Kia, Mazda, Mitsubishi, Alfa Romeo), contact us to discuss the IA1000LDWTDT or IA1000ASTDT packages. We will tell you honestly which configuration fits your mix.

IA1000 Package Lineup — Where This Fits

• IA1000 / IA1000T — Frame only (no targets). Requires separate tablet purchase. Entry point for shops adding frame to existing Ultra S2.
• IA1000DT / IA1000TDT (this package) — Frame + Ultra S2 + Digital Targets. Right for shops whose covered procedures are well-served by digital targets without physical LDW boards.
• IA1000LDWT / IA1000LDWTDT — Adds physical LDW target set for make/model coverage that requires printed patterns.
• IA1000AST / IA1000ASTDT — All Systems: frame + LDW targets + radar + lidar + night vision calibration equipment. Maximum coverage for high-volume calibration centers.

Who Needs This System

• Collision repair shops performing windshield replacements, front-end work, and camera/sensor R&R on a daily basis — the pre/post documentation alone justifies the system for insurer-facing shops
• ADAS calibration centers that want to run alignment and calibration under one roof on one system with one report
• Automotive dealerships doing warranty and customer-pay ADAS work across a broad vehicle mix
• Wheel and tire dealers expanding into alignment and camera recalibration as a service add-on
