Autel ADAS Standard Frame All Systems Package with ADAS Upgrade and MS909 Tablet — AS20T

The AS20T is Autel's most complete static ADAS calibration package: a CSC Standard Frame bundled with the MaxiSYS MS909 diagnostic tablet, a full ADAS software upgrade, and every target, pattern, and component you need to perform LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch, and AVM calibrations in one purchase. If your shop is doing post-windshield, post-front-end, or post-suspension work on a mixed domestic and import car parc, this is the configuration that covers the widest range of systems without piecemeal ordering.

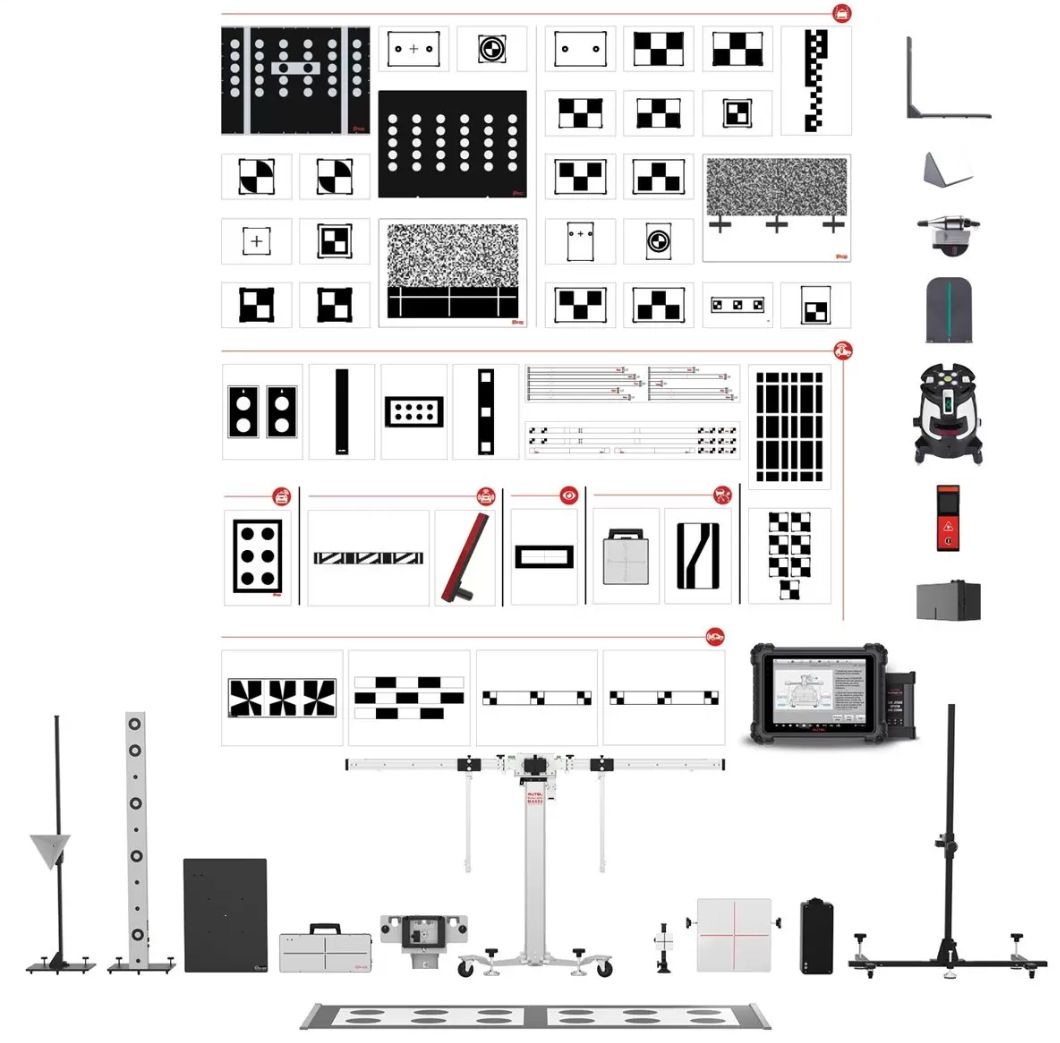

What's in the Box

• Autel CSC Standard Frame — the rigid, adjustable calibration frame used for static target placement across all supported ADAS systems
• MaxiSYS MS909 Tablet — full-featured diagnostic tablet with ADAS software pre-activated, used to guide calibration procedures and communicate with vehicle modules
• ADAS Software Upgrade — expands calibration coverage and keeps the system current with new vehicle applications
• LDW Patterns and Targets for: Alfa Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus
• Lidar Calibration Targets for: VW/Audi, Lexus, Toyota
• RCW (Rear Cross-Traffic Warning) Patterns and Package for: VW, Nissan, Mercedes
• Honda LaneWatch Target
• Expansion Pack — adds RCW, AVM (Around View Monitor), Lidar, and Night Vision calibration components
• DIGITALADAS Add-On — enables faster frame placement with a single technician; includes Target Stand
• One-Year Limited Warranty on all components

What This Package Calibrates

• LDW (Lane Departure Warning) — forward-facing camera calibration after windshield R&R or camera repositioning
• ACC (Adaptive Cruise Control / Radar) — front radar alignment after bumper, grille, or front-end repair
• Lidar — laser-based distance sensor calibration (VW/Audi, Toyota, Lexus applications)
• Night Vision — infrared camera alignment for supported makes
• RCW (Rear Cross-Traffic Warning) — rear radar calibration for VW, Nissan, and Mercedes vehicles
• AVM (Around View Monitor / 360° Camera) — multi-camera surround-view system calibration
• LaneWatch — Honda's side-view camera system, requiring its own dedicated target

Who Needs This Configuration

This package is designed for a shop that wants one purchase to handle the full range of Autel-supported ADAS calibrations. If you are already doing windshield replacements, front-end alignments, or sensor replacements on modern imports and domestics, ADAS calibrations are a billable service you are currently turning away or subcontracting. The AS20T eliminates that. The inclusion of the MS909 tablet means you are not dependent on an existing Autel tablet — this is a stand-alone system.

Shops doing primarily one or two makes may find a more targeted package more economical. But if your bay sees a broad mix — Honda, Toyota, VW, Mercedes, Nissan, Subaru, Hyundai/Kia, and others — and you want to handle static calibration in-house without calling in a mobile calibration service, this is the configuration that makes sense. The DIGITALADAS add-on is particularly useful for smaller crews: it reduces the two-person frame setup to a one-person operation.

Calibration Trigger Reference

• Windshield replacement (any vehicle with a forward camera mounted to the glass)
• Front bumper, grille, or radar cover R&R
• Front suspension or steering geometry work on ADAS-equipped vehicles
• Camera or sensor replacement
• Any repair that changes the physical relationship between a sensor and its calibrated reference point

Technical Notes

• Weight: 950 lbs (full package including frame and all components)
• Calibration type: Static (frame and target based); dynamic calibration requires a road drive procedure guided by the MS909 tablet
• Compatibility: Works with MaxiSYS tablet lineup; MS909 included in this bundle
• Exact frame dimensions and vehicle-specific setup requirements are documented in the Autel ADAS setup guides included with the system
