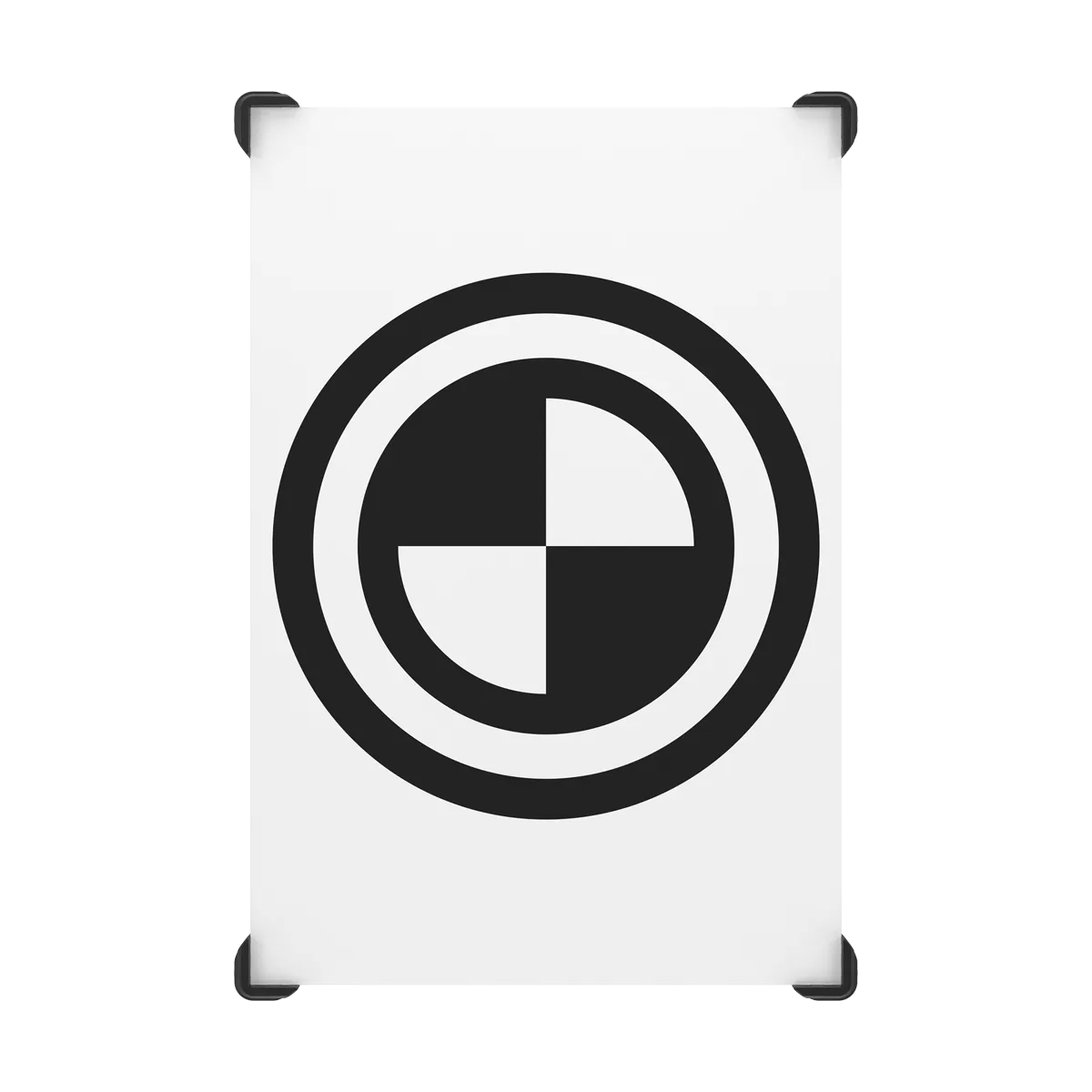

Autel MA600 Honda LDW III Target — CSC0601/24-01

This is a vehicle-specific ADAS calibration target designed for Honda Lane Departure Warning (LDW) III systems. It pairs with Autel's MA600 mobile calibration frame and the MaxiSYS ADAS software platform to perform static front-camera calibration after windshield replacement, camera R&R, or any front-end repair that disturbs the factory camera alignment.

What This Target Does

Lane departure warning cameras require precise optical alignment to function correctly. When a Honda windshield is replaced or the forward camera is removed and reinstalled, the camera must be recalibrated to the manufacturer's specifications before the system will engage. This target provides the reference pattern the camera locks onto during the static calibration procedure.

• System Compatibility: Honda LDW III forward-facing camera systems — exact model-year coverage available on request or via Autel ADAS software vehicle lookup
• Calibration Type: Static (target-based) — performed in the shop, no road drive required for this procedure
• Frame Compatibility: Designed for use with the Autel MA600 mobile ADAS calibration frame
• Software Required: Autel MaxiSYS ADAS application running on a compatible MaxiSYS tablet (MS909, MS919, Ultra, or Elite II)
• Target Code: CSC0601/24-01 — reference this code when verifying compatibility with your existing Autel ADAS setup

Who Needs This Target

Any shop performing windshield replacements or front-end work on Honda vehicles equipped with LDW III will need this target on hand. Auto glass shops, collision centers, and general repair shops that have already invested in the MA600 frame and MaxiSYS ADAS platform add vehicle-specific targets as they expand their Honda coverage. If you are replacing windshields on Honda vehicles and sending customers elsewhere for calibration, this target — combined with the MA600 frame — closes that gap in-house.

How It Fits the Autel MA600 ADAS System

The MA600 is Autel's mobile calibration frame built for shops that need portability without sacrificing accuracy. Unlike fixed-frame systems, the MA600 can be positioned precisely in a standard service bay. Vehicle-specific targets like this one mount to the MA600 frame crossbar at the position and height specified by Autel's ADAS software for each vehicle procedure. The software walks the technician through target placement, distance, and height using the tablet's guided workflow — no guesswork, no manual measurement charts.

• Target placement: Software-guided positioning via MaxiSYS ADAS app
• Frame system: MA600 mobile frame (sold separately)
• Calibration workflow: Connect tablet to vehicle via OBD-II, select Honda LDW III procedure, follow on-screen target placement instructions, run calibration, verify with DTC clear and system check

Static vs. Dynamic Calibration — Which Does This Cover?

This target covers the static calibration procedure, which is performed in the shop with the vehicle stationary. Some Honda LDW systems may also require or benefit from a dynamic calibration (road drive) after static — the MaxiSYS ADAS software will indicate if a dynamic pass is needed for the specific vehicle and procedure. The target itself is only used for the static phase.

What's Included

• One CSC0601/24-01 Honda LDW III calibration target panel
• Autel documentation and part identification markings

The MA600 frame, MaxiSYS tablet, and ADAS software subscription are required and sold separately. If you are building out an Autel ADAS station from scratch, contact us — we can configure the complete package at the right price point for your shop's volume.
