Autel MA600CAL1 — ADAS Calibration Package 1 for the MA600 System

The MA600CAL1 is a vehicle-specific target expansion kit for the Autel MA600 Mobile ADAS Calibration Frame. If your shop already runs the MA600 frame and a MaxiSYS tablet with MA600 software, this package adds the targets and tools you need to perform calibrations on a broader range of makes — specifically Mercedes-Benz, Volkswagen, Nissan, Cadillac, and Honda — without buying a full second system.

This is not a standalone kit. It requires the MA600 Calibration Frame and a compatible MaxiSYS tablet with MA600 Calibration Software, both sold separately. What it gives you is the hardware to extend that system into additional ADAS calibration procedures that would otherwise be out of reach.

What Systems This Package Covers

• Rear Collision Warning (RCW): Targets included for Mercedes-Benz, Volkswagen, and Nissan
• Around View Monitoring (AVM): Targets included for Volkswagen, Cadillac, and Honda
• Night Vision: Mercedes-Benz Night Vision Calibrator included
• Radar Systems: Corner Reflector included for radar-based systems including Adaptive Cruise Control (ACC), Blind Spot Monitoring (BSM), Front Collision Warning, and Parking Assist

Who Needs This Package

If you're already using the MA600 system and your car count includes a significant share of European and Japanese vehicles — particularly Mercedes, VW, or Nissan — plus domestic makes like Cadillac or Honda models with AVM systems, this package fills in the gaps your base frame setup can't cover. Body shops doing windshield replacements, alignment shops, and mechanical shops performing front-end or sensor-area repairs on these makes will find this the most direct path to completing required ADAS recalibrations in-house.

Shops that don't yet own the MA600 frame should look at the full MA600 system first. This package only adds value once the frame and software are already in place.

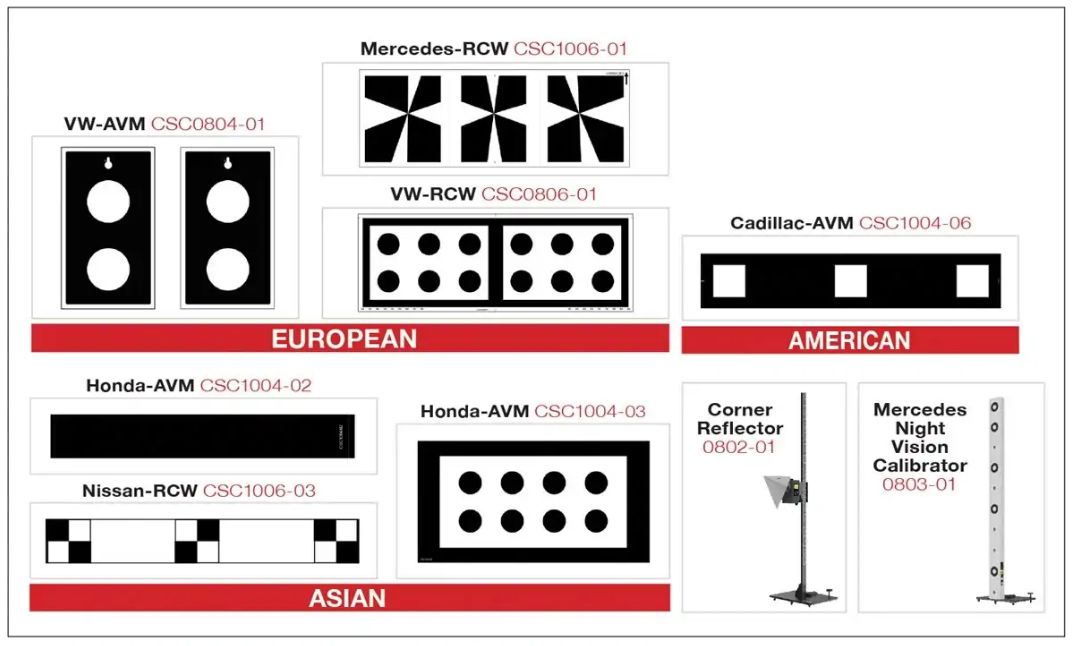

What's in the Box

• RCW Targets: Mercedes-Benz, Volkswagen, Nissan
• AVM Targets: Volkswagen, Cadillac, Honda
• Corner Reflector for radar system calibrations
• Mercedes-Benz Night Vision Calibrator

What's Required (Sold Separately)

• Autel MA600 ADAS Calibration Frame
• MaxiSYS tablet with MA600 Calibration Software license
• ADAS Software Upgrades (as applicable)

Technical Notes

• Weight: 110 lbs (shipping weight for full package)
• Warranty: 1-Year Manufacturer Warranty
• Calibration types supported: Static calibration using vehicle-specific targets; dynamic calibration support depends on the MA600 software and connected MaxiSYS tablet

When Does a Shop Need This vs. Stepping Up or Down

If your MA600 system handles your current workflow but you're turning away Mercedes, VW, Nissan, Cadillac, or Honda ADAS jobs because you lack the specific targets, this package pays for itself quickly. A single AVM or RCW calibration job on a Mercedes or Cadillac can run $200–$400 at retail — this package covers a defined set of those procedures without the cost of a second frame system.

If you don't yet own the MA600 frame and you're evaluating whether to buy in, consider the full MA600 system bundle first. If your volume is primarily domestic makes outside of Cadillac, or if you're working with makes not listed here, check the other MA600 calibration packages to find the combination that fits your actual car count.
